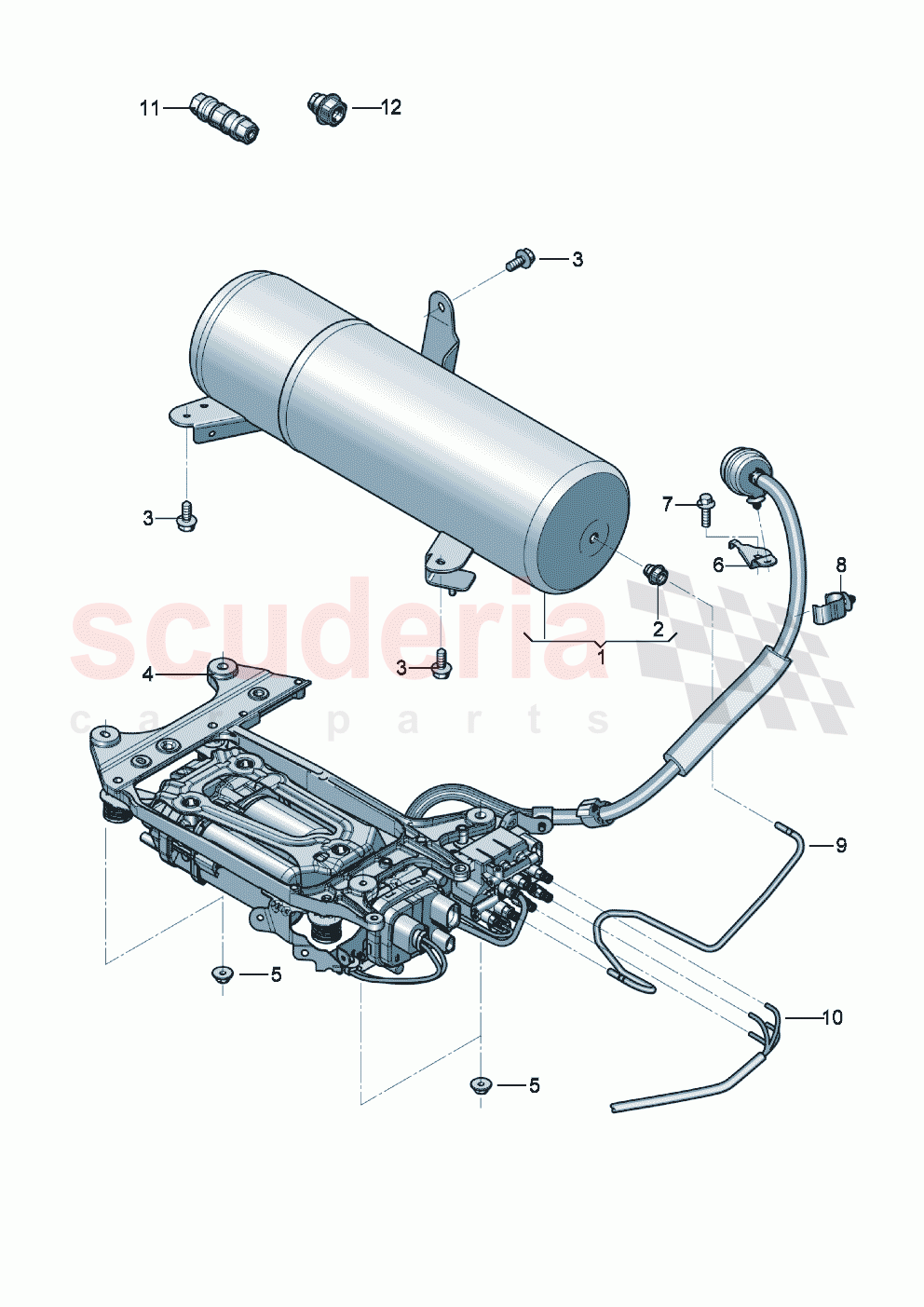

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	971616202	Pressure accumulator	Enquire

Photo	Part No	Description	Price (each)	Stock
	7L0616757	push-on connector	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10158605	bolt,hex.hd.with shoul.(combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SA616006	Air supply unit single parts see:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90887703	Hexagon flange nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	3SD616200	Retainer for air filter	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002755	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90681601	Corrugated tube clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	971616711	Air line	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4F0616241	Connection piece	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	971616202	Pressure accumulator	971616202 Pressure accumulator	-	1	Enquire
2	7L0616757	push-on connector	7L0616757 push-on connector M10X1	-	1	Enquire
3	N10158605	bolt,hex.hd.with shoul.(combi)	N10158605 bolt,hex.hd.with shoul.(combi) M6X16	-	3	Enquire
4	3SA616006	Air supply unit single parts see:	3SA616006 Air supply unit single parts see: 616-020	-	1	Enquire
5	N90887703	Hexagon flange nut, self-locking	N90887703 Hexagon flange nut, self-locking	-	4	Enquire
6	3SD616200	Retainer for air filter	3SD616200 Retainer for air filter	-	1	Enquire
7	WHT002755	bolt	WHT002755 bolt M6X20	-	1	Enquire
8	N90681601	Corrugated tube clip	N90681601 Corrugated tube clip 13	-	1	Enquire
9	971616711	Air line	971616711 Air line 6MM	-	1	Enquire
10	3SD616675A	Air line	3SD616675A Air line left front red 7300MM	-	1	Enquire
10	3SD616715A	Air pipe	3SD616715A Air pipe right front green 8825MM	-	1	Enquire
10	3SD616647A	Air line	3SD616647A Air line left rear black 1380MM	-	1	Enquire
10	3SD616649A	Air line	3SD616649A Air line right rear blue 2035MM	-	1	Enquire
11	4F0616241	Connection piece	4F0616241 Connection piece 4MM	-	-	Enquire
12	4B0616751	Connection piece	4B0616751 Connection piece M8X1	-	-	Enquire
12	7L0616758	Connection piece	7L0616758 Connection piece M10X1	-	-	Enquire
