Air-conditioning system with electronic regulation of Bentley Bentley New Continental GT (2019-2024)

View All

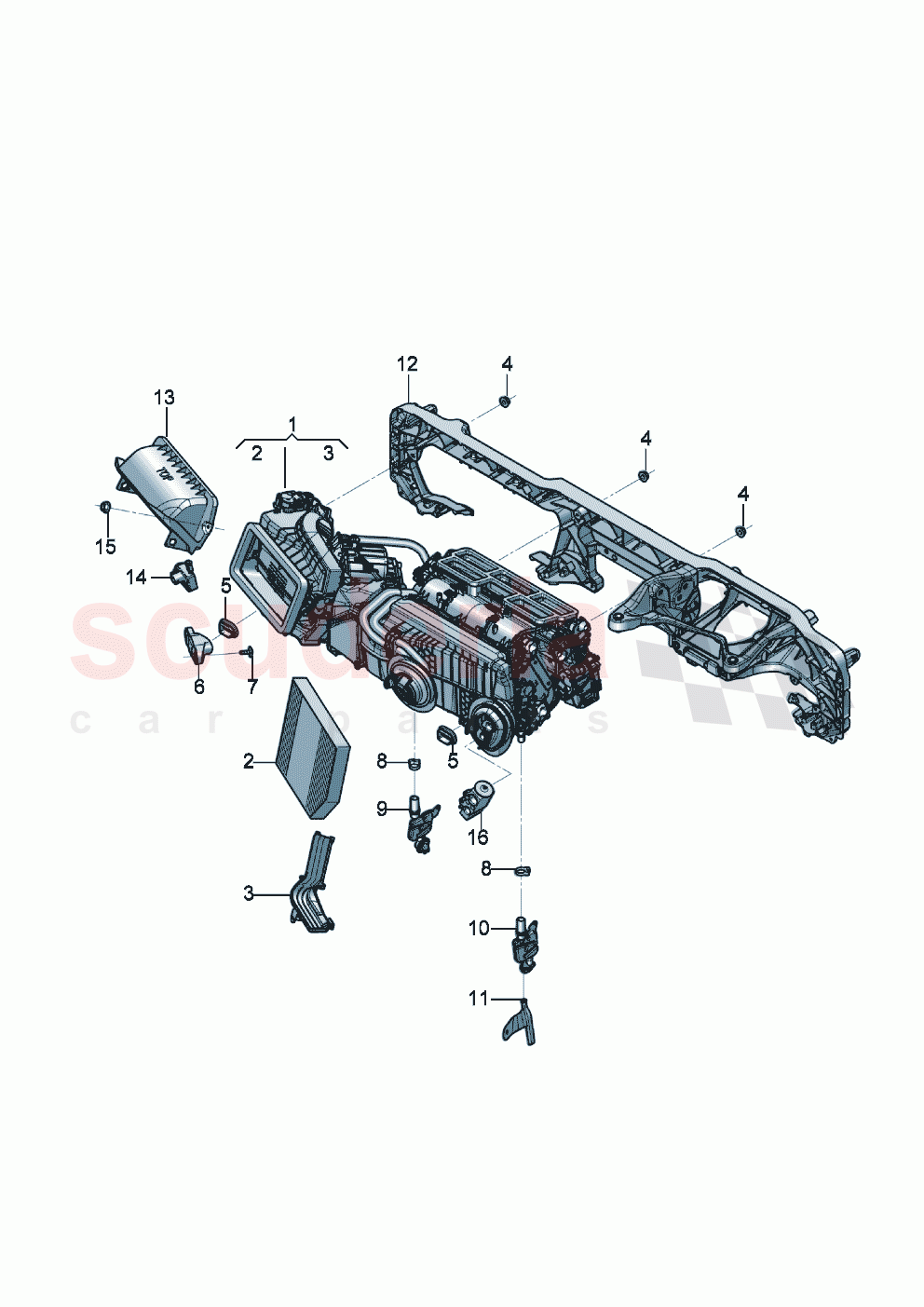

Bentley New Continental GT (2019-2024) - Air-conditioning system with electronic regulation

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	971260122	Evaporator housing with evaporator D >> - 22.10.2023	Enquire
	971260122A	Evaporator housing with evaporator D - 23.10.2023>>	Enquire
	971260123	Evaporator housing with evaporator D >> - 23.01.2022	Enquire

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	971819429B	Dust and pollen filter D - 04.06.2018>>	Enquire
	971819429B	Dust and pollen filter D - 04.06.2018>>	Enquire
	971819429C	Dust and pollen filter D - 04.06.2018>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	971819422	Cover for pollen filter	Enquire
	971819424	Cover for pollen filter	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire
	5Q0907543A	Temperature sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	971820751	Grommet	Enquire
	971819353J	Air distribution housing D - 24.03.2020>> - 04.07.2022	Enquire
	971819353J	Air distribution housing D - 24.03.2020>> - 04.07.2022	Enquire

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	971820769	Bracket D >> - 08.11.2021	Enquire
	971820769B	Bracket D - 08.11.2021>>	Enquire
	971820769A	Bracket D >> - 26.05.2023	Enquire

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N91166401	Oval hexagon socket head bolt	Enquire
	WHT000703	Hexagon socket oval head panel bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	971819089	Hose clamp	Enquire
	4B0820539	Temperature sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	971820638C	water drain pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	971820637C	Water drainage hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	971820693	drain tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	971815129D	Fresh air intake	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0907658C	Sensor for air quality and air humidity D - 23.09.2019>>	Enquire
	4H0907658C	Sensor for air quality and air humidity D - 23.09.2019>>	Enquire
	971858609	Hose Glove box	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire
	971816126	Double grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	971820679	Expansion valve Included in position:	Enquire
	971963535	Temperature sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	971857340	Retaining clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	971971565E	WIRE SET	Enquire
	971971565G	WIRE SET	Enquire

Photo	Part No	Description	Price (each)	Stock
	971068117	Gasket set	Enquire

Photo	Part No	Description	Price (each)	Stock
	971820155	blower housing D >> - 03.12.2020	Enquire
	971820155H	blower housing D - 03.12.2020>> - 03.06.2021	Enquire
	971820155K	blower housing D - 03.06.2021>> - 04.07.2022	Enquire

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	971858283	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	972907521C	Fan motor D - 10.06.2019>> - 22.10.2023	Enquire
	972907521C	Fan motor D - 10.06.2019>> - 22.10.2023	Enquire
	972907521D	Fan motor D - 23.10.2023>>	Enquire

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	971260122	Evaporator housing with evaporator D >> - 22.10.2023	971260122 Evaporator housing with evaporator D >> - 22.10.2023 lhd ,PR:L0L	-	1	Enquire
1	971260122A	Evaporator housing with evaporator D - 23.10.2023>>	971260122A Evaporator housing with evaporator D - 23.10.2023>> lhd ,PR:L0L	-	1	Enquire
1	971260123	Evaporator housing with evaporator D >> - 23.01.2022	971260123 Evaporator housing with evaporator D >> - 23.01.2022 rhd ,PR:L0R	-	1	Enquire
1	971260123A	Evaporator housing with evaporator D - 24.01.2022>> - 22.10.2023	971260123A Evaporator housing with evaporator D - 24.01.2022>> - 22.10.2023 rhd ,PR:L0R	-	1	Enquire
1	971260123B	Evaporator housing with evaporator D - 23.10.2023>>	971260123B Evaporator housing with evaporator D - 23.10.2023>> rhd ,PR:L0R	-	1	Enquire
2	971819429B	Dust and pollen filter D - 04.06.2018>>	971819429B Dust and pollen filter D - 04.06.2018>> lhd ,PR:L0L	-	1	Enquire
2	971819429B	Dust and pollen filter D - 04.06.2018>>	971819429B Dust and pollen filter D - 04.06.2018>> lhd ,PR:L0L	-	1	Enquire
2	971819429C	Dust and pollen filter D - 04.06.2018>>	971819429C Dust and pollen filter D - 04.06.2018>> rhd ,PR:L0R	-	1	Enquire
2	971819429C	Dust and pollen filter D - 04.06.2018>>	971819429C Dust and pollen filter D - 04.06.2018>> rhd ,PR:L0R	-	1	Enquire
3	971819422	Cover for pollen filter	971819422 Cover for pollen filter lhd ,PR:L0L	-	1	Enquire
3	971819424	Cover for pollen filter	971819424 Cover for pollen filter rhd ,PR:L0R	-	1	Enquire
4	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6	-	3	Enquire
4	5Q0907543A	Temperature sensor	5Q0907543A Temperature sensor	-	1	Enquire
5	971820751	Grommet	971820751 Grommet	-	2	Enquire
5	971819353J	Air distribution housing D - 24.03.2020>> - 04.07.2022	971819353J Air distribution housing D - 24.03.2020>> - 04.07.2022 lhd ,PR:L0L	-	1	Enquire
5	971819353J	Air distribution housing D - 24.03.2020>> - 04.07.2022	971819353J Air distribution housing D - 24.03.2020>> - 04.07.2022 lhd ,PR:L0L	-	1	Enquire
5	971819353M	Air distribution housing D - 04.07.2022>> - 22.10.2023	971819353M Air distribution housing D - 04.07.2022>> - 22.10.2023 lhd ,PR:L0L	-	1	Enquire
5	971819353S	Air distribution housing D - 23.10.2023>>	971819353S Air distribution housing D - 23.10.2023>> lhd ,PR:L0L	-	1	Enquire
5	971819353L	Air distribution housing D - 24.03.2020>> - 04.07.2022	971819353L Air distribution housing D - 24.03.2020>> - 04.07.2022 rhd ,PR:L0R	-	1	Enquire
5	971819353L	Air distribution housing D - 24.03.2020>> - 04.07.2022	971819353L Air distribution housing D - 24.03.2020>> - 04.07.2022 rhd ,PR:L0R	-	1	Enquire
5	971819353N	Air distribution housing D - 04.07.2022>> - 22.10.2023	971819353N Air distribution housing D - 04.07.2022>> - 22.10.2023 rhd ,PR:L0R	-	1	Enquire
5	971819353AA	Air distribution housing D - 23.10.2023>>	971819353AA Air distribution housing D - 23.10.2023>> rhd ,PR:L0R	-	1	Enquire
6	971820769	Bracket D >> - 08.11.2021	971820769 Bracket D >> - 08.11.2021 lhd ,PR:L0L	-	1	Enquire
6	971820769B	Bracket D - 08.11.2021>>	971820769B Bracket D - 08.11.2021>> lhd ,PR:L0L	-	1	Enquire
6	971820769A	Bracket D >> - 26.05.2023	971820769A Bracket D >> - 26.05.2023 rhd ,PR:L0R	-	1	Enquire
6	971820769C	Bracket D - 26.05.2023>>	971820769C Bracket D - 26.05.2023>> rhd ,PR:L0R	-	1	Enquire
6	8W0820511E	SERVOMOTOR	8W0820511E SERVOMOTOR	-	16	Enquire
7	N91166401	Oval hexagon socket head bolt	N91166401 Oval hexagon socket head bolt	-	2	Enquire
7	WHT000703	Hexagon socket oval head panel bolt (combi)	WHT000703 Hexagon socket oval head panel bolt (combi) 4X15	-	55	Enquire
8	971819089	Hose clamp	971819089 Hose clamp	-	2	Enquire
8	4B0820539	Temperature sensor	4B0820539 Temperature sensor	-	2	Enquire
9	971820638C	water drain pipe	971820638C water drain pipe side, right	-	1	Enquire
10	971820637C	Water drainage hose	971820637C Water drainage hose side, left	-	1	Enquire
11	971820693	drain tube	971820693 drain tube side, left lower	-	1	Enquire
13	971815129D	Fresh air intake	971815129D Fresh air intake	-	1	Enquire
14	4H0907658C	Sensor for air quality and air humidity D - 23.09.2019>>	4H0907658C Sensor for air quality and air humidity D - 23.09.2019>>	-	1	Enquire
14	4H0907658C	Sensor for air quality and air humidity D - 23.09.2019>>	4H0907658C Sensor for air quality and air humidity D - 23.09.2019>>	-	1	Enquire
14	971858609	Hose Glove box	971858609 Hose Glove box lhd	-	1	Enquire
14	971858610	Hose Glove box	971858610 Hose Glove box rhd	-	1	Enquire
15	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6	-	2	Enquire
15	971816126	Double grommet	971816126 Double grommet	-	1	Enquire
16	971820679	Expansion valve Included in position:	971820679 Expansion valve Included in position: KIT 1	-	1	Enquire
16	971963535	Temperature sensor	971963535 Temperature sensor	-	1	Enquire
17	971857340	Retaining clip	971857340 Retaining clip	-	1	Enquire
18	971971565E	WIRE SET	971971565E WIRE SET lhd	-	1	Enquire
18	971971565G	WIRE SET	971971565G WIRE SET rhd	-	1	Enquire
19	971068117	Gasket set	971068117 Gasket set	-	1	Enquire
20	971820155	blower housing D >> - 03.12.2020	971820155 blower housing D >> - 03.12.2020 lhd ,PR:L0L	-	1	Enquire
20	971820155H	blower housing D - 03.12.2020>> - 03.06.2021	971820155H blower housing D - 03.12.2020>> - 03.06.2021 lhd ,PR:L0L	-	1	Enquire
20	971820155K	blower housing D - 03.06.2021>> - 04.07.2022	971820155K blower housing D - 03.06.2021>> - 04.07.2022 lhd ,PR:L0L	-	1	Enquire
20	971820155M	blower housing D - 04.07.2022>>	971820155M blower housing D - 04.07.2022>> lhd ,PR:L0L	-	1	Enquire
20	971820155J	blower housing D - 03.12.2020>> - 03.06.2021	971820155J blower housing D - 03.12.2020>> - 03.06.2021 rhd ,PR:L0R	-	1	Enquire
20	971820155J	blower housing D - 03.12.2020>> - 03.06.2021	971820155J blower housing D - 03.12.2020>> - 03.06.2021 rhd ,PR:L0R	-	1	Enquire
20	971820155L	blower housing D - 03.06.2021>> - 04.07.2022	971820155L blower housing D - 03.06.2021>> - 04.07.2022 rhd ,PR:L0R	-	1	Enquire
20	971820155N	blower housing D - 04.07.2022>>	971820155N blower housing D - 04.07.2022>> rhd ,PR:L0R	-	1	Enquire
21	971858283	Bracket	971858283 Bracket	-	1	Enquire
24	972907521C	Fan motor D - 10.06.2019>> - 22.10.2023	972907521C Fan motor D - 10.06.2019>> - 22.10.2023 lhd ,PR:L0L	-	1	Enquire
24	972907521C	Fan motor D - 10.06.2019>> - 22.10.2023	972907521C Fan motor D - 10.06.2019>> - 22.10.2023 lhd ,PR:L0L	-	1	Enquire
24	972907521D	Fan motor D - 23.10.2023>>	972907521D Fan motor D - 23.10.2023>> lhd ,PR:L0L	-	1	Enquire
24	973907521C	Fan motor D - 10.06.2019>> - 22.10.2023	973907521C Fan motor D - 10.06.2019>> - 22.10.2023 rhd ,PR:L0R	-	1	Enquire
24	973907521C	Fan motor D - 10.06.2019>> - 22.10.2023	973907521C Fan motor D - 10.06.2019>> - 22.10.2023 rhd ,PR:L0R	-	1	Enquire
24	973907521D	Fan motor D - 23.10.2023>>	973907521D Fan motor D - 23.10.2023>> rhd ,PR:L0R	-	1	Enquire
