Cooling unit for high-voltage battery of Bentley Bentley New Continental Convertible (2025-2026)

View All

Bentley New Continental Convertible (2025-2026) - Cooling unit for high-voltage battery (260070)

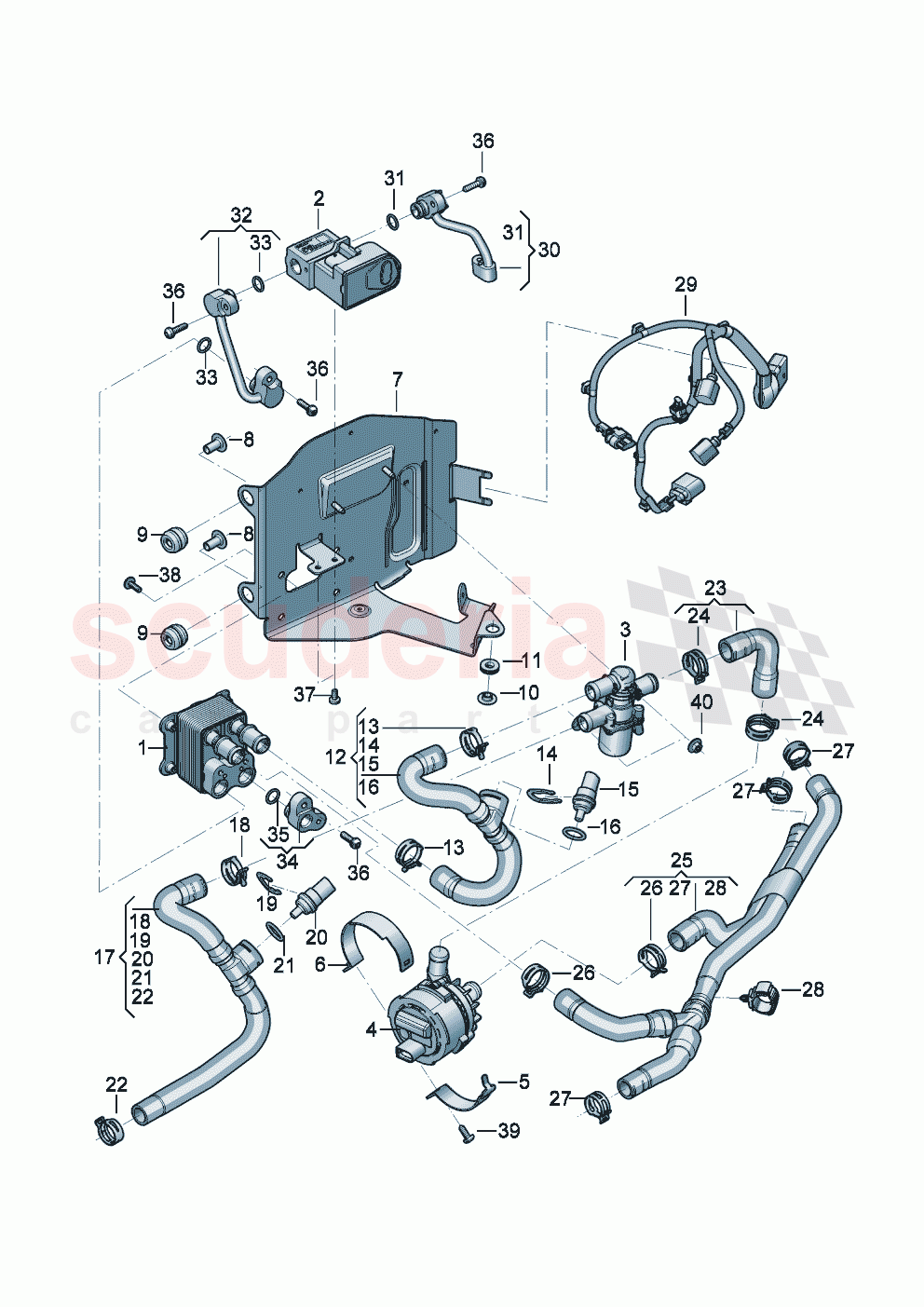

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0816115A	heat exchanger	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0816682E	Expansion valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	5Q0906457C	control valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	9J1965567G	Coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	976260420	Retaining bar	Enquire

Photo	Part No	Description	Price (each)	Stock
	976260419	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	976260089A	Bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0614173B	Bearing bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0614177A	Stop buffer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0422121	bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0422095	Grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	976820928	Coolant hose with temperature sender D >> - 01.10.2024	Enquire
	976820928A	Coolant hose with temperature sender D - 01.10.2024>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91225501	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	32121142	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	5C919501	Coolant temperature sender	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90316801	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	976820452	Coolant hose D >> - 01.10.2024	Enquire
	976820452A	Coolant hose D - 01.10.2024>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91225501	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	32121142	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	5C919501	Coolant temperature sender	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90316801	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0422379A	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	976820930	Coolant hose D >> - 01.10.2024	Enquire
	976820930A	Coolant hose D - 01.10.2024>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91225501	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	976820450A	Coolant hose D >> - 01.10.2024	Enquire
	976820450B	Coolant hose D - 01.10.2024>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91225501	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0422379A	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005377	Cable holder	Enquire

Photo	Part No	Description	Price (each)	Stock
	976971277A	Wire set	Enquire

Photo	Part No	Description	Price (each)	Stock
	971260714B	Refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	971260335C	Refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	971260752A	Refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10347204	Hexagon socket head bolt, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10335206	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10714801	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91096701	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91189302	Hexagon nut	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0816115A	heat exchanger	4M0816115A heat exchanger	-	1	Enquire
2	4M0816682E	Expansion valve	4M0816682E Expansion valve	-	1	Enquire
3	5Q0906457C	control valve	5Q0906457C control valve	-	1	Enquire
4	9J1965567G	Coolant pump	9J1965567G Coolant pump	-	1	Enquire
5	976260420	Retaining bar	976260420 Retaining bar lower	-	1	Enquire
6	976260419	Bracket	976260419 Bracket upper	-	1	Enquire
7	976260089A	Bracket	976260089A Bracket	-	1	Enquire
8	4D0614173B	Bearing bush	4D0614173B Bearing bush	-	2	Enquire
9	4D0614177A	Stop buffer	4D0614177A Stop buffer	-	2	Enquire
10	3D0422121	bush	3D0422121 bush	-	1	Enquire
11	3D0422095	Grommet	3D0422095 Grommet	-	1	Enquire
12	976820928	Coolant hose with temperature sender D >> - 01.10.2024	976820928 Coolant hose with temperature sender D >> - 01.10.2024	-	1	Enquire
12	976820928A	Coolant hose with temperature sender D - 01.10.2024>>	976820928A Coolant hose with temperature sender D - 01.10.2024>>	-	1	Enquire
13	N91225501	Spring band clamp	N91225501 Spring band clamp 27X12	-	2	Enquire
14	32121142	retaining spring	32121142 retaining spring	-	1	Enquire
15	5C919501	Coolant temperature sender	5C919501 Coolant temperature sender	-	1	Enquire
16	N90316801	O-ring	N90316801 O-ring 19.6X3.65	-	1	Enquire
17	976820452	Coolant hose D >> - 01.10.2024	976820452 Coolant hose D >> - 01.10.2024	-	1	Enquire
17	976820452A	Coolant hose D - 01.10.2024>>	976820452A Coolant hose D - 01.10.2024>>	-	1	Enquire
18	N91225501	Spring band clamp	N91225501 Spring band clamp 27X12	-	1	Enquire
19	32121142	retaining spring	32121142 retaining spring	-	1	Enquire
20	5C919501	Coolant temperature sender	5C919501 Coolant temperature sender	-	1	Enquire
21	N90316801	O-ring	N90316801 O-ring 19.6X3.65	-	1	Enquire
22	4B0422379A	Spring band clamp	4B0422379A Spring band clamp 25X12	-	1	Enquire
23	976820930	Coolant hose D >> - 01.10.2024	976820930 Coolant hose D >> - 01.10.2024	-	1	Enquire
23	976820930A	Coolant hose D - 01.10.2024>>	976820930A Coolant hose D - 01.10.2024>>	-	1	Enquire
24	N91225501	Spring band clamp	N91225501 Spring band clamp 27X12	-	2	Enquire
25	976820450A	Coolant hose D >> - 01.10.2024	976820450A Coolant hose D >> - 01.10.2024	-	1	Enquire
25	976820450B	Coolant hose D - 01.10.2024>>	976820450B Coolant hose D - 01.10.2024>>	-	1	Enquire
26	N91225501	Spring band clamp	N91225501 Spring band clamp 27X12	-	2	Enquire
27	4B0422379A	Spring band clamp	4B0422379A Spring band clamp 25X12	-	3	Enquire
28	WHT005377	Cable holder	WHT005377 Cable holder	-	1	Enquire
29	976971277A	Wire set	976971277A Wire set	-	1	Enquire
30	971260714B	Refrigerant line	971260714B Refrigerant line	-	1	Enquire
31	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5	-	1	Enquire
32	971260335C	Refrigerant line	971260335C Refrigerant line	-	1	Enquire
33	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5	-	2	Enquire
34	971260752A	Refrigerant line	971260752A Refrigerant line	-	1	Enquire
35	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5	-	1	Enquire
36	N10347204	Hexagon socket head bolt, self-locking	N10347204 Hexagon socket head bolt, self-locking M6X25	-	4	Enquire
37	N10335206	Hexagon socket flat head bolt	N10335206 Hexagon socket flat head bolt M6X12	-	2	Enquire
38	N10714801	Oval hexagon socket head bolt	N10714801 Oval hexagon socket head bolt M6X16	-	4	Enquire
39	N91096701	Oval hexagon socket head bolt	N91096701 Oval hexagon socket head bolt M6X16	-	1	Enquire
40	N91189302	Hexagon nut	N91189302 Hexagon nut M6	-	2	Enquire
