Control unit (BCM) for convenience system, Gateway, and onboard power supply of Bentley Bentley Mulsanne (2010+)

View All

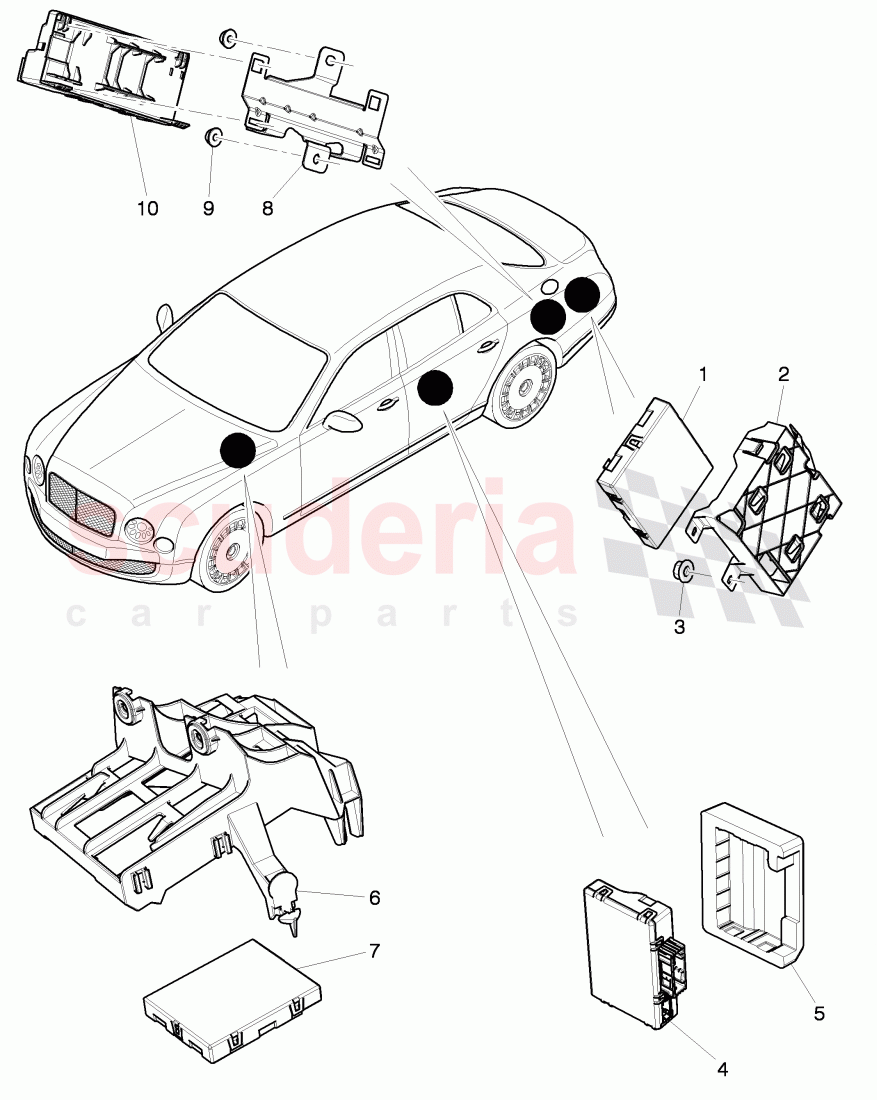

Bentley Mulsanne (2010+) - Control unit (BCM) for convenience system, Gateway, and onboard power supply

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4H0907064JD	central electronic control, unit for comfort system, D - 15.12.2015>>	Enquire

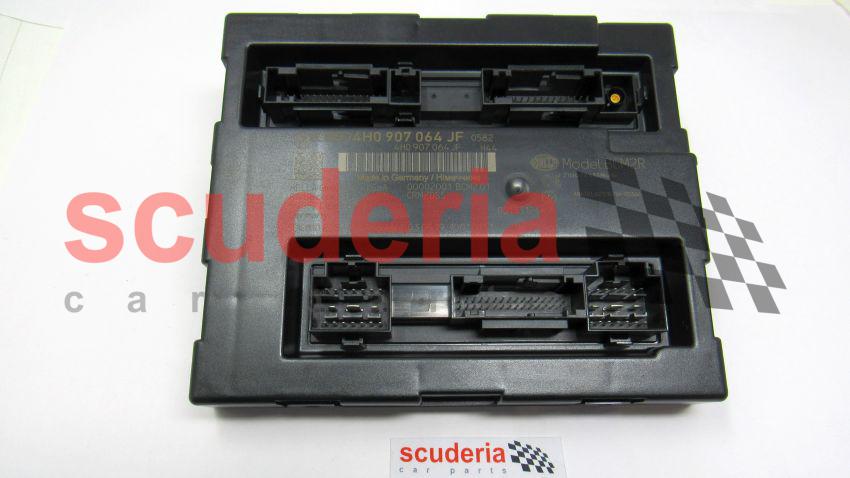

	4H0907064JF	central electronic control, unit for comfort system, D - 15.12.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0907349	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0907468AH	Diagnosis interface for, data bus (Gateway), D >> - 03.12.2012	Enquire
	4G8907468H	Diagnosis interface for, data bus (Gateway), D - MJ 2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0937155	retainer for control units diagnosis interface for data bus (gateway)	Enquire

Photo	Part No	Description	Price (each)	Stock
	8K1971845	mounting	Enquire
	4H2971845	mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0907063CC	Onboard supply control unit, for vehicles with Seat, ventilation and Massage, D - 11.02.2013>>	Enquire
	4H0907063CG	Onboard supply control unit, D - 15.08.2011>> - 16.07.2012	Enquire
	4H0907063CG	Onboard supply control unit, D - 15.08.2011>> - 16.07.2012	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0907816	bracket, Control unit for electro-, mechanical parking brake	Enquire

Photo	Part No	Description	Price (each)	Stock
	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	Enquire

Photo	Part No	Description	Price (each)	Stock
	4G8959107S	Control unit for tailgate, D - 26.05.2014>>	Enquire
	4G8959107R	Control unit for tailgate, D - 14.01.2013>> - 26.05.2014	Enquire
	4G8959107T	Control unit for tailgate, D - 26.05.2014>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4H0907064JD	central electronic control, unit for comfort system, D - 15.12.2015>>	4H0907064JD central electronic control, unit for comfort system, D - 15.12.2015>> 'BCM2', 315MHZ, PR-4F2,4F6+, 5D2,5D4	-	1	Enquire
1	4H0907064JF	central electronic control, unit for comfort system, D - 15.12.2015>>	4H0907064JF central electronic control, unit for comfort system, D - 15.12.2015>> 'BCM2', 433MHZ, PR-4F2,4F6+, 5D1	-	1	Enquire
2	3Y0907349	bracket	3Y0907349 bracket	-	1	Enquire
3	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	N02300212 hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742 M6,	-	1	Enquire
4	4H0907468AH	Diagnosis interface for, data bus (Gateway), D >> - 03.12.2012	4H0907468AH Diagnosis interface for, data bus (Gateway), D >> - 03.12.2012	-	1	Enquire
4	4G8907468H	Diagnosis interface for, data bus (Gateway), D - MJ 2017>>	4G8907468H Diagnosis interface for, data bus (Gateway), D - MJ 2017>>	-	1	Enquire
5	3Y0937155	retainer for control units diagnosis interface for data bus (gateway)	3Y0937155 retainer for control units diagnosis interface for data bus (gateway)	-	1	Enquire
6	8K1971845	mounting	8K1971845 mounting lhd, PR-L0L	-	1	Enquire
6	4H2971845	mounting	4H2971845 mounting rhd, PR-L0R	-	1	Enquire
7	4H0907063CC	Onboard supply control unit, for vehicles with Seat, ventilation and Massage, D - 11.02.2013>>	4H0907063CC Onboard supply control unit, for vehicles with Seat, ventilation and Massage, D - 11.02.2013>> 'BCM1', PR-4D2	-	1	Enquire
7	4H0907063CG	Onboard supply control unit, D - 15.08.2011>> - 16.07.2012	4H0907063CG Onboard supply control unit, D - 15.08.2011>> - 16.07.2012 'BCM1', PR-4D0	-	1	Enquire
7	4H0907063CG	Onboard supply control unit, D - 15.08.2011>> - 16.07.2012	4H0907063CG Onboard supply control unit, D - 15.08.2011>> - 16.07.2012 PR-4D0	-	1	Enquire
8	3Y0907816	bracket, Control unit for electro-, mechanical parking brake	3Y0907816 bracket, Control unit for electro-, mechanical parking brake PR-4E7,4E9	-	1	Enquire
9	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	N02300212 hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742 M6, PR-4E7,4E9	-	2	Enquire
10	4G8959107S	Control unit for tailgate, D - 26.05.2014>>	4G8959107S Control unit for tailgate, D - 26.05.2014>> 18KHZ, all countries,, except:, north american, area, PR-4E7	-	1	Enquire
10	4G8959107R	Control unit for tailgate, D - 14.01.2013>> - 26.05.2014	4G8959107R Control unit for tailgate, D - 14.01.2013>> - 26.05.2014 20MHZ, north american, area, PR-4E9	-	1	Enquire
10	4G8959107T	Control unit for tailgate, D - 26.05.2014>>	4G8959107T Control unit for tailgate, D - 26.05.2014>> 20MHZ, north american, area, PR-4E9	-	1	Enquire
