brake and acc. pedal assembly of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - brake and acc. pedal assembly

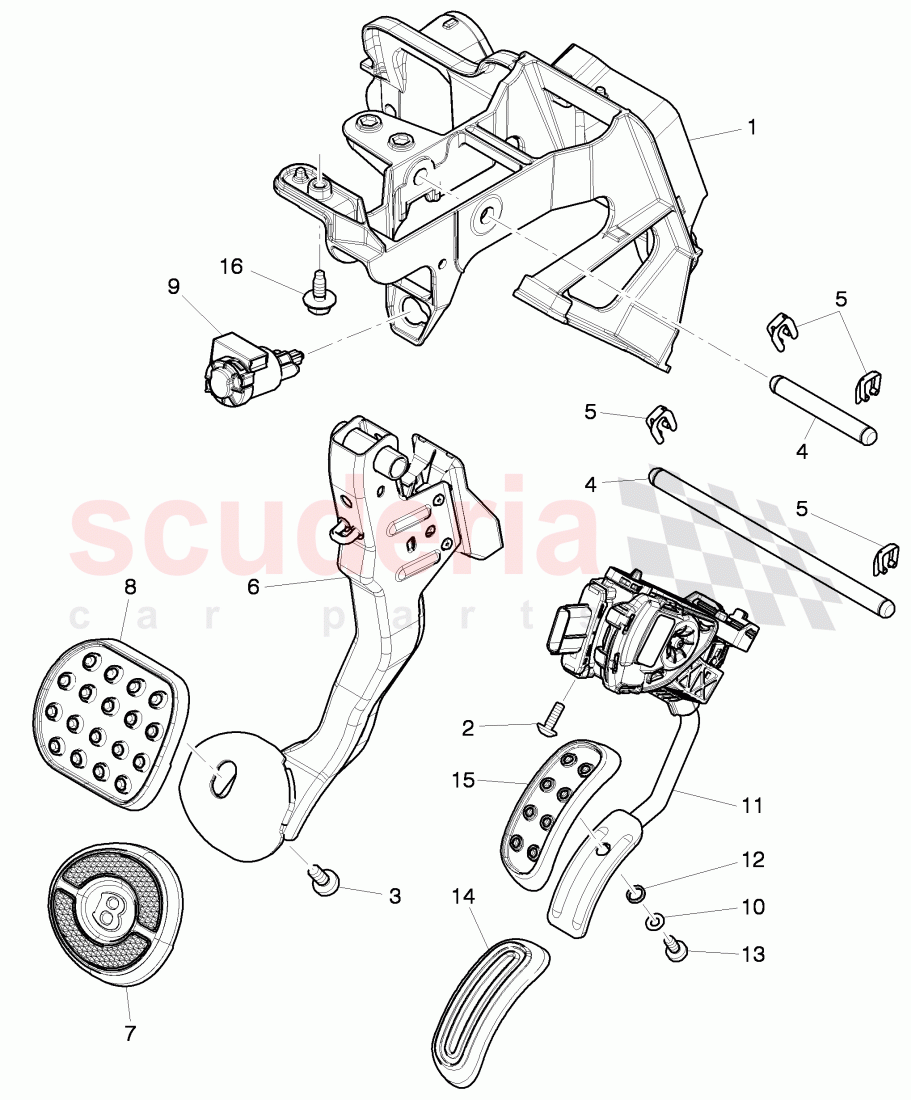

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G1723117	bracket for pedal cluster	Enquire
	4H2723117A	bracket for pedal cluster	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10714801	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90888504	bolt, with polygon socket hd., D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8D1723309A	pin	Enquire
	8K2721329	bearing tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90070305	lock washer, D - 04.02.2013>>	Enquire
	N91148401	retaining washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y1723151A	brake pedal	Enquire
	3Y2723151A	brake pedal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0723173	cap for foot brake pedal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0723173B	cap for foot brake pedal option.colour/customer choice	Enquire

Photo	Part No	Description	Price (each)	Stock
	4F0945459B	brake light sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0723839	concave washer, D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y1721510C	accelerator pedal with, electronic modul, D - 09.01.2012>>	Enquire
	3Y2721510C	accelerator pedal with, electronic modul, D - 09.01.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0723371	spacer, D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90644804	Oval hexagon socket head bolt, D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0723647E	accelerator pedal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0723647B	accelerator pedal, optional color/customer choice	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003698	hexagon head bolt (combi)	Enquire
	WHT003698	hexagon head bolt (combi)	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G1723117	bracket for pedal cluster	4G1723117 bracket for pedal cluster lhd, PR-L0L	-	1	Enquire
1	4H2723117A	bracket for pedal cluster	4H2723117A bracket for pedal cluster rhd, PR-L0R	-	1	Enquire
2	N10714801	Oval hexagon socket head bolt	N10714801 Oval hexagon socket head bolt M6X16,	-	2	Enquire
3	N90888504	bolt, with polygon socket hd., D - MJ 2007>>	N90888504 bolt, with polygon socket hd., D - MJ 2007>> M8X16,	-	1	Enquire
4	8D1723309A	pin	8D1723309A pin lhd, PR-L0L	-	1	Enquire
4	8K2721329	bearing tube	8K2721329 bearing tube rhd, PR-L0R	-	1	Enquire
5	N90070305	lock washer, D - 04.02.2013>>	N90070305 lock washer, D - 04.02.2013>> lhd, PR-L0R	-	2	Enquire
5	N91148401	retaining washer	N91148401 retaining washer rhd, PR-L0R	-	2	Enquire
6	3Y1723151A	brake pedal	3Y1723151A brake pedal lhd, PR-L0L	-	1	Enquire
6	3Y2723151A	brake pedal	3Y2723151A brake pedal rhd, PR-L0R	-	1	Enquire
7	3Y0723173	cap for foot brake pedal	3Y0723173 cap for foot brake pedal Standard, aluminium, PR-VF0	-	1	Enquire
8	3Y0723173B	cap for foot brake pedal option.colour/customer choice	3Y0723173B cap for foot brake pedal option.colour/customer choice PR-VF9	-	1	Enquire
9	4F0945459B	brake light sensor	4F0945459B brake light sensor	-	1	Enquire
10	3W0723839	concave washer, D - MJ 2007>>	3W0723839 concave washer, D - MJ 2007>>	-	1	Enquire
11	3Y1721510C	accelerator pedal with, electronic modul, D - 09.01.2012>>	3Y1721510C accelerator pedal with, electronic modul, D - 09.01.2012>> lhd, PR-L0L	-	1	Enquire
11	3Y2721510C	accelerator pedal with, electronic modul, D - 09.01.2012>>	3Y2721510C accelerator pedal with, electronic modul, D - 09.01.2012>> rhd, PR-L0R	-	1	Enquire
12	3W0723371	spacer, D - MJ 2007>>	3W0723371 spacer, D - MJ 2007>> 12MM,	-	1	Enquire
13	N90644804	Oval hexagon socket head bolt, D - MJ 2007>>	N90644804 Oval hexagon socket head bolt, D - MJ 2007>> M5X9,	-	1	Enquire
14	3W0723647E	accelerator pedal	3W0723647E accelerator pedal Standard, PR-VF0	-	1	Enquire
15	3Y0723647B	accelerator pedal, optional color/customer choice	3Y0723647B accelerator pedal, optional color/customer choice PR-VF9	-	1	Enquire
16	WHT003698	hexagon head bolt (combi)	WHT003698 hexagon head bolt (combi) M8X22, PR-L0L	-	1	Enquire
16	WHT003698	hexagon head bolt (combi)	WHT003698 hexagon head bolt (combi) M8X22, PR-L0R	-	2	Enquire

brake and acc. pedal assembly

Actuating unit for emergency release

shift mechanism, D - MJ 2017>>

shift mechanism, D >> - MJ 2016
