brake disc, splash shield for brake disc, brake caliper of Bentley Bentley Mulsanne (2010+)

View All

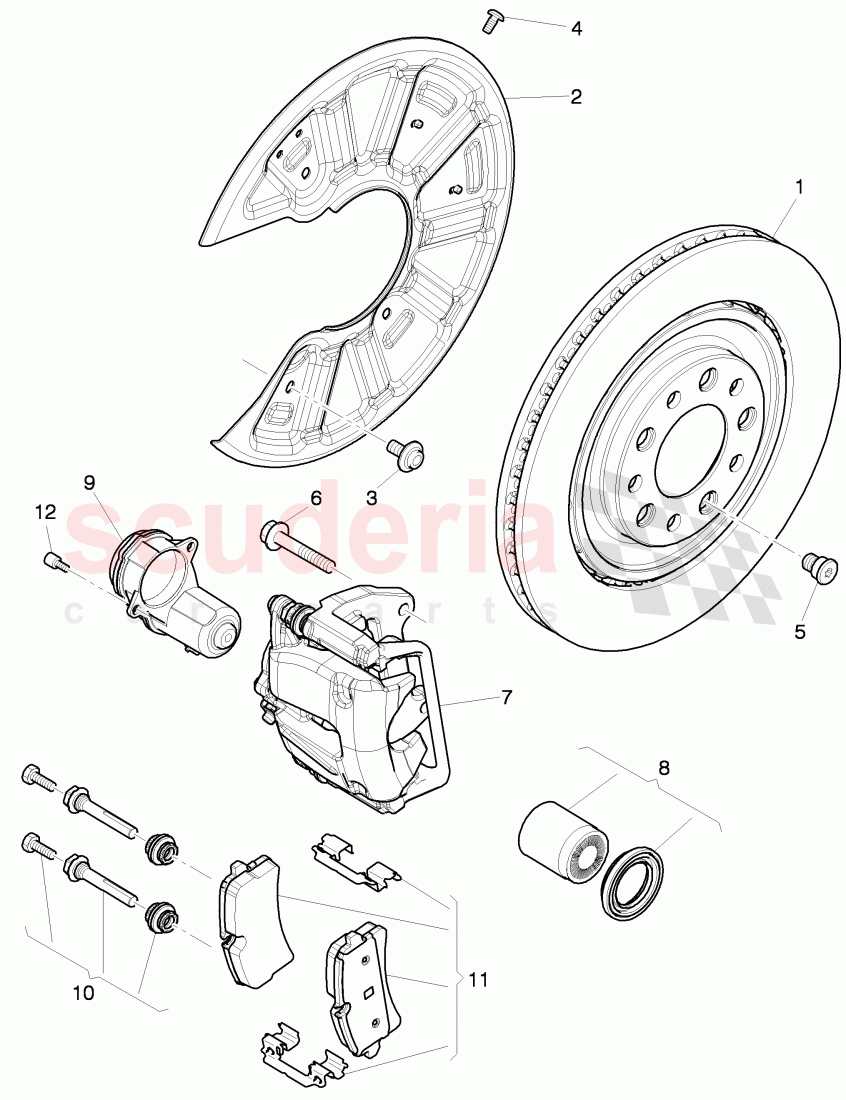

Bentley Mulsanne (2010+) - brake disc, splash shield for brake disc, brake caliper

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

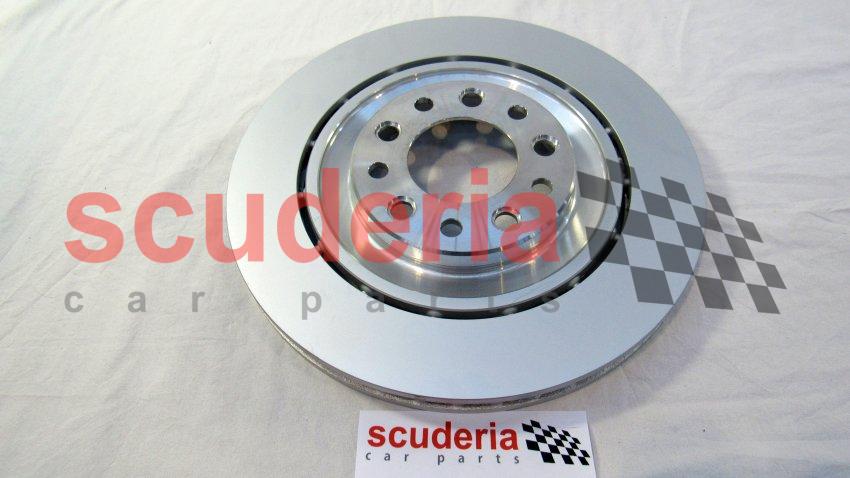

	3Y0615601A	brake disc	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0615611B	splash shield for brake disc	Enquire
	3Y0615612C	splash shield for brake disc, D - 20.08.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90989102	socket head bolt with inner multipoint head D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90638103	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91028202	socket head bolt with hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10209605	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0698679	brake caliper housing	Enquire
	3Y0698680	brake caliper housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Z0698671	set of seals for, piston housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0698996	motor for adjustment for brake, cal. housing w. attachment p.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0698470	1 set protective sleeves with, guide pins	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0698451D	1 SET: BRAKE PADS WITH WEAR INDICATOR FOR DISC BRAKE	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01470111	bolt, with hex. socket, hd., D >> - 14.02.2011	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0615601A	brake disc	3Y0615601A brake disc cast iron,	-	2	Enquire
2	3Y0615611B	splash shield for brake disc	3Y0615611B splash shield for brake disc left rear,	-	1	Enquire
2	3Y0615612C	splash shield for brake disc, D - 20.08.2012>>	3Y0615612C splash shield for brake disc, D - 20.08.2012>> rear, right,	-	1	Enquire
3	N90989102	socket head bolt with inner multipoint head D - 06.11.2006>>	N90989102 socket head bolt with inner multipoint head D - 06.11.2006>> M8X16,	-	3	Enquire
4	N90638103	round hd. screw	N90638103 round hd. screw M6X12,	-	2	Enquire
5	N91028202	socket head bolt with hexagon socket head	N91028202 socket head bolt with hexagon socket head M12X1,5X16X19,	-	2	Enquire
6	N10209605	bolt, hex. hd. with shoulder	N10209605 bolt, hex. hd. with shoulder M12X1,5X65,	-	4	Enquire
7	3Y0698679	brake caliper housing	3Y0698679 brake caliper housing left,	-	1	Enquire
7	3Y0698680	brake caliper housing	3Y0698680 brake caliper housing right,	-	1	Enquire
8	3Z0698671	set of seals for, piston housing	3Z0698671 set of seals for, piston housing	-	1	Enquire
9	3Y0698996	motor for adjustment for brake, cal. housing w. attachment p.	3Y0698996 motor for adjustment for brake, cal. housing w. attachment p.	-	1	Enquire
10	3Y0698470	1 set protective sleeves with, guide pins	3Y0698470 1 set protective sleeves with, guide pins	-	1	Enquire
11	3Y0698451D	1 SET: BRAKE PADS WITH WEAR INDICATOR FOR DISC BRAKE	3Y0698451D 1 SET: BRAKE PADS WITH WEAR INDICATOR FOR DISC BRAKE	-	1	Enquire
12	N01470111	bolt, with hex. socket, hd., D >> - 14.02.2011	N01470111 bolt, with hex. socket, hd., D >> - 14.02.2011	-	4	Enquire
