Find Your Part

harness for battery +/-, Wire harness for starter and alternator with ground, wire of Bentley Bentley Continental Supersports (2017+)

View All

Bentley Continental Supersports (2017+) - harness for battery +/-, Wire harness for starter and alternator with ground, wire

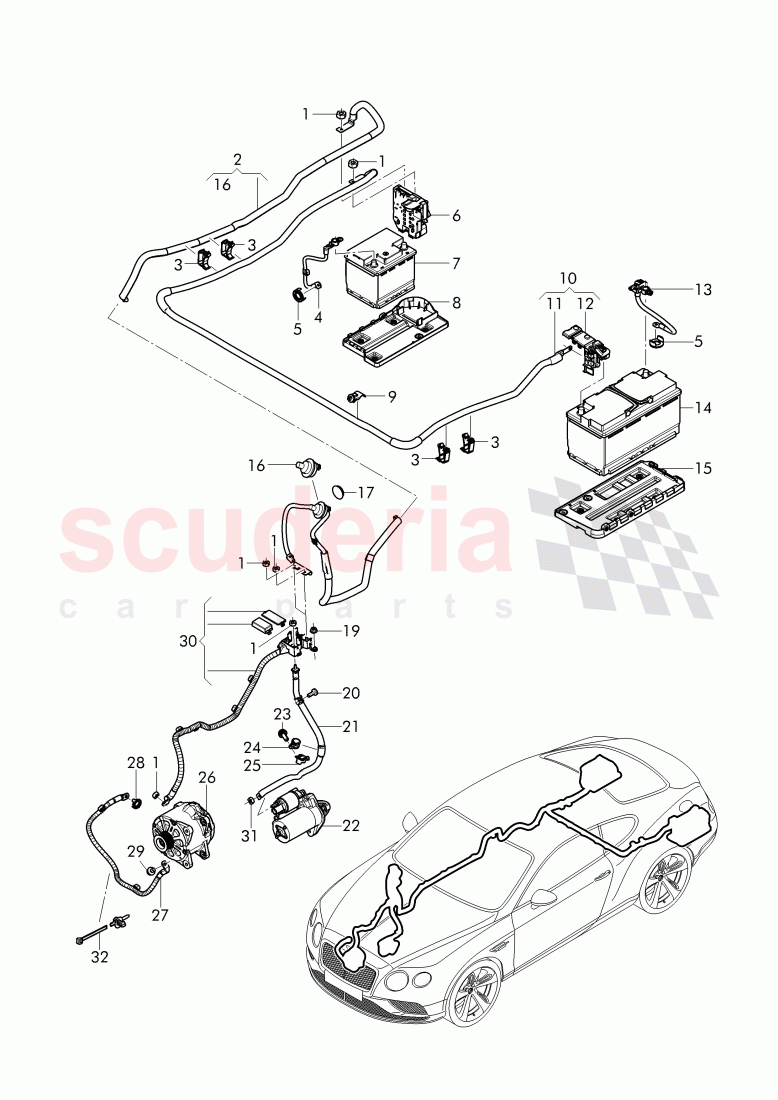

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N01100840	hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1971228	harness for battery +	Enquire
	3W2971228	harness for battery +	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0972674	bracket, Battery cable	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971235F	wiring set for battery - battery	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0971260B	retainer, D >> - 16.04.2012	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0915463C	Fuse box, battery, D - 11.04.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0957815C	cable holder	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971227C	Wiring set for battery +, with fuse, D - 26.09.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971225D	wiring set for battery + D - 26.09.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3915423	fuse box for 2nd battery	Enquire

Photo	Part No	Description	Price (each)	Stock
	8K0915181C	Control unit for battery, monitoring, D >> - 23.05.2016	Enquire

Photo	Part No	Description	Price (each)	Stock
	8K0971871J	grommet, harness for battery +, included in position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3915363A	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215804	Hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971349S	harness for, alternator, harness for battery +, F 3W-4-020 001>> 3W-6-039 935	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10236603	clamp, D - 05.04.2010>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971237C	harness, also use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0971260	retainer, ground strap, battery	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10530203	screw, hex. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971230C	harness for, alternator, F 3W-C-074 744>>, F ZA-C-074 744>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01100840	hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0971838K	Cable ties with bracket	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	N01100840	hexagon nut	N01100840 hexagon nut M8,	-	5	Enquire
2	3W1971228	harness for battery +	3W1971228 harness for battery + lhd,	-	1	Enquire
2	3W2971228	harness for battery +	3W2971228 harness for battery + rhd,	-	1	Enquire
3	3D0972674	bracket, Battery cable	3D0972674 bracket, Battery cable	-	4	Enquire
4	3W0971235F	wiring set for battery - battery	3W0971235F wiring set for battery - battery side right,	-	1	Enquire
5	3D0971260B	retainer, D >> - 16.04.2012	3D0971260B retainer, D >> - 16.04.2012	-	2	Enquire
6	3Y0915463C	Fuse box, battery, D - 11.04.2011>>	3Y0915463C Fuse box, battery, D - 11.04.2011>> side right,	-	1	Enquire
9	3D0957815C	cable holder	3D0957815C cable holder	-	6	Enquire
10	3W0971227C	Wiring set for battery +, with fuse, D - 26.09.2011>>	3W0971227C Wiring set for battery +, with fuse, D - 26.09.2011>> left a. right,	-	1	Enquire
11	3W0971225D	wiring set for battery + D - 26.09.2011>>	3W0971225D wiring set for battery + D - 26.09.2011>> left a. right,	-	1	Enquire
12	3W3915423	fuse box for 2nd battery	3W3915423 fuse box for 2nd battery side left,	-	1	Enquire
13	8K0915181C	Control unit for battery, monitoring, D >> - 23.05.2016	8K0915181C Control unit for battery, monitoring, D >> - 23.05.2016	-	1	Enquire
16	8K0971871J	grommet, harness for battery +, included in position:	8K0971871J grommet, harness for battery +, included in position: 2,	-	1	Enquire
17	3W3915363A	grommet	3W3915363A grommet bright,	-	1	Enquire
19	N90215804	Hexagon nut	N90215804 Hexagon nut M6,	-	2	Enquire
20	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6 X 16MM,	-	1	Enquire
21	3W0971349S	harness for, alternator, harness for battery +, F 3W-4-020 001>> 3W-6-039 935	3W0971349S harness for, alternator, harness for battery +, F 3W-4-020 001>> 3W-6-039 935	-	1	Enquire
23	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6 X 16MM,	-	1	Enquire
24	N10236603	clamp, D - 05.04.2010>>	N10236603 clamp, D - 05.04.2010>> 28X19,	-	1	Enquire
27	3W0971237C	harness, also use:	3W0971237C harness, also use:	-	1	Enquire
28	3D0971260	retainer, ground strap, battery	3D0971260 retainer, ground strap, battery M10,	-	1	Enquire
29	N10530203	screw, hex. hd.	N10530203 screw, hex. hd. M8X12,	-	1	Enquire
30	3W0971230C	harness for, alternator, F 3W-C-074 744>>, F ZA-C-074 744>>	3W0971230C harness for, alternator, F 3W-C-074 744>>, F ZA-C-074 744>>	-	1	Enquire
31	N01100840	hexagon nut	N01100840 hexagon nut M8,	-	1	Enquire
32	3D0971838K	Cable ties with bracket	3D0971838K Cable ties with bracket	-	1	Enquire
