Bentley Continental Supersports (2017+) - floor covering

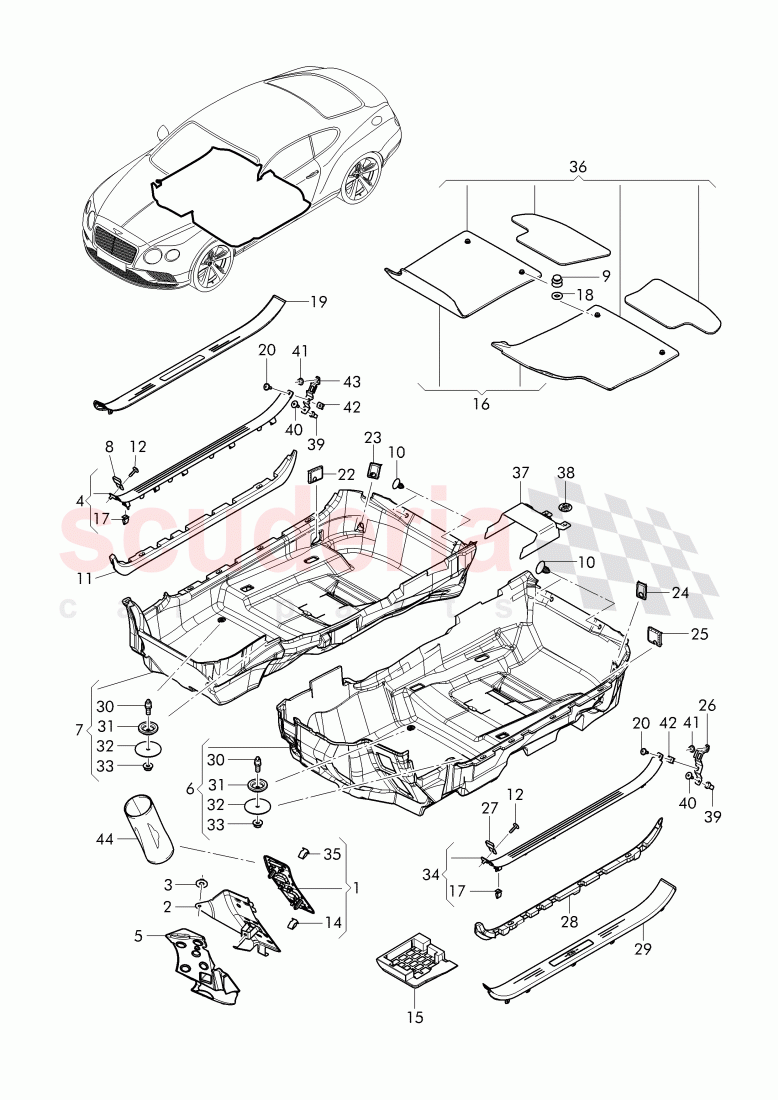

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W1864777Q	cover for foot support, D - 27.05.2013>>	Enquire
	3W2864777M	cover for foot support	Enquire
	3W1864777Q	cover for foot support, D - 27.05.2013>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W1863233C	bracket, foot support, D - 21.10.2013>>	Enquire
	3W2863233D	bracket, foot support, D - 21.10.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90708803	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3863382F	scuff plate - sill panel, D >> - 23.01.2017	Enquire
	3W8863382A	scuff plate - sill panel, D - 13.02.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1864419	base for foot support	Enquire
	3W2864419A	base for foot support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1863677B	Carpet, D - 03.02.2014>>	Enquire
	3W2863677B	Carpet, D - 03.02.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1863678B	Carpet, D - 03.02.2014>>	Enquire
	3W2863678B	Carpet, D - 03.02.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868524	bracket, scuff plate - sill panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0864179	clamp, floor mat	Enquire
	3Y0864179B	clamp, floor mat	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867199	press stud	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3863622A	Shaped part (foam), support	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10442003	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	4A0867276A	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0919244	bracket, Control unit for access and, start authorisation (KESSY)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1863691AJ	1 set floor mats, D - 12.12.2011>>	Enquire
	3W2863691AJ	1 set floor mats, D - 12.12.2011>>	Enquire
	3W1863691AN	1 set floor mats, D - 05.09.2011>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4A0867276A	Clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90452704	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698605	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8867327A	bracket, scuff plate - sill panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868523	bracket, scuff plate - sill panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3863621A	Shaped part (foam), support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0864287	ballpin, bracket for floor mat	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0864199A	cup washer, D - 13.06.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91062801	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10011501	shouldered hex. nut, D >> - 30.08.2010	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3863381F	scuff plate - sill panel, D >> - 23.01.2017	Enquire
	3W8863381A	scuff plate - sill panel, D - 13.02.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M3827649	clamp, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-019 866, F ZH-E-017 831>> ZH-E-019 866	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1863691AG	1 set floor mats, D - 05.09.2011>>	Enquire
	3W2863691AG	1 set floor mats, D - 05.09.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7863367F	floor cover, tunnel	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90335006	Clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90974701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698701	Speed nut Included in position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8867328A	bracket, scuff plate - sill panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0860232	bracket - fire extinguisher	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W1864777Q	cover for foot support, D - 27.05.2013>>	3W1864777Q cover for foot support, D - 27.05.2013>> lhd, Standard, PR-L0L	-	1	Enquire
1	3W2864777M	cover for foot support	3W2864777M cover for foot support rhd, Standard, PR-L0R+VF0	-	1	Enquire
1	3W1864777Q	cover for foot support, D - 27.05.2013>>	3W1864777Q cover for foot support, D - 27.05.2013>> lhd, Sport version, PR-L0L+VF9	-	1	Enquire
1	3W2864777L	cover for foot support	3W2864777L cover for foot support rhd, Sport version, PR-L0R+VF9	-	1	Enquire
2	3W1863233C	bracket, foot support, D - 21.10.2013>>	3W1863233C bracket, foot support, D - 21.10.2013>> lhd, PR-L0L	-	1	Enquire
2	3W2863233D	bracket, foot support, D - 21.10.2013>>	3W2863233D bracket, foot support, D - 21.10.2013>> rhd, PR-L0R	-	1	Enquire
3	N90708803	speed nut	N90708803 speed nut	-	3	Enquire
4	3W3863382F	scuff plate - sill panel, D >> - 23.01.2017	3W3863382F scuff plate - sill panel, D >> - 23.01.2017 right inner, PR-NU1	-	1	Enquire
4	3W8863382A	scuff plate - sill panel, D - 13.02.2017>>	3W8863382A scuff plate - sill panel, D - 13.02.2017>> right inner, Carbon weave, PR-NU2	-	1	Enquire
5	3W1864419	base for foot support	3W1864419 base for foot support lhd, PR-L0L	-	1	Enquire
5	3W2864419A	base for foot support	3W2864419A base for foot support rhd, PR-L0R	-	1	Enquire
6	3W1863677B	Carpet, D - 03.02.2014>>	3W1863677B Carpet, D - 03.02.2014>> left lhd, PR-L0L	-	1	Enquire
6	3W2863677B	Carpet, D - 03.02.2014>>	3W2863677B Carpet, D - 03.02.2014>> left rhd, PR-L0R	-	1	Enquire
7	3W1863678B	Carpet, D - 03.02.2014>>	3W1863678B Carpet, D - 03.02.2014>> right lhd, PR-L0L	-	1	Enquire
7	3W2863678B	Carpet, D - 03.02.2014>>	3W2863678B Carpet, D - 03.02.2014>> right rhd, PR-L0R	-	1	Enquire
8	3W0868524	bracket, scuff plate - sill panel	3W0868524 bracket, scuff plate - sill panel right front, inner,	-	1	Enquire
9	3Y0864179	clamp, floor mat	3Y0864179 clamp, floor mat Standard, PR-0TS	-	4	Enquire
9	3Y0864179B	clamp, floor mat	3Y0864179B clamp, floor mat long. install., PR-0TX	-	4	Enquire
10	3W0867199	press stud	3W0867199 press stud	-	4	Enquire
11	3W3863622A	Shaped part (foam), support	3W3863622A Shaped part (foam), support right,	-	1	Enquire
12	N10442003	self-tapping screw	N10442003 self-tapping screw	-	2	Enquire
14	4A0867276A	Clip	4A0867276A Clip	-	5	Enquire
15	3W0919244	bracket, Control unit for access and, start authorisation (KESSY)	3W0919244 bracket, Control unit for access and, start authorisation (KESSY)	-	1	Enquire
16	3W1863691AJ	1 set floor mats, D - 12.12.2011>>	3W1863691AJ 1 set floor mats, D - 12.12.2011>> lhd, Standard, PR-L0L+0TS	-	1	Enquire
16	3W2863691AJ	1 set floor mats, D - 12.12.2011>>	3W2863691AJ 1 set floor mats, D - 12.12.2011>> rhd, Standard, PR-L0R+0TS	-	1	Enquire
16	3W1863691AN	1 set floor mats, D - 05.09.2011>>	3W1863691AN 1 set floor mats, D - 05.09.2011>> lhd, Lambswool, PR-L0L+0TF	-	1	Enquire
16	3W2863691AE	1 set floor mats	3W2863691AE 1 set floor mats rhd, Lambswool, PR-L0R+0TF	-	1	Enquire
17	4A0867276A	Clip	4A0867276A Clip	-	10	Enquire
18	N90452704	washer	N90452704 washer 10,2X20X3,	-	4	Enquire
20	N90698605	Hexagon socket head panel bolt	N90698605 Hexagon socket head panel bolt ST4.2X16,	-	2	Enquire
26	3W8867327A	bracket, scuff plate - sill panel	3W8867327A bracket, scuff plate - sill panel left rear,	-	1	Enquire
27	3W0868523	bracket, scuff plate - sill panel	3W0868523 bracket, scuff plate - sill panel left front, inner,	-	1	Enquire
28	3W3863621A	Shaped part (foam), support	3W3863621A Shaped part (foam), support left,	-	1	Enquire
30	3Y0864287	ballpin, bracket for floor mat	3Y0864287 ballpin, bracket for floor mat	-	4	Enquire
31	3Y0864199A	cup washer, D - 13.06.2016>>	3Y0864199A cup washer, D - 13.06.2016>>	-	4	Enquire
32	N91062801	washer	N91062801 washer 5,3,	-	4	Enquire
33	N10011501	shouldered hex. nut, D >> - 30.08.2010	N10011501 shouldered hex. nut, D >> - 30.08.2010 M5,	-	4	Enquire
34	3W3863381F	scuff plate - sill panel, D >> - 23.01.2017	3W3863381F scuff plate - sill panel, D >> - 23.01.2017 left inner, PR-NU1	-	1	Enquire
34	3W8863381A	scuff plate - sill panel, D - 13.02.2017>>	3W8863381A scuff plate - sill panel, D - 13.02.2017>> left inner, Carbon weave, PR-NU2	-	1	Enquire
35	7M3827649	clamp, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-019 866, F ZH-E-017 831>> ZH-E-019 866	7M3827649 clamp, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-019 866, F ZH-E-017 831>> ZH-E-019 866 13X7,9,	-	1	Enquire
36	3W1863691AG	1 set floor mats, D - 05.09.2011>>	3W1863691AG 1 set floor mats, D - 05.09.2011>> lhd, Deep Pile, PR-L0L+0TX	-	1	Enquire
36	3W2863691AG	1 set floor mats, D - 05.09.2011>>	3W2863691AG 1 set floor mats, D - 05.09.2011>> rhd, Deep Pile, PR-L0R+0TX	-	1	Enquire
37	3W7863367F	floor cover, tunnel	3W7863367F floor cover, tunnel rear, PR-3D1,3D2	-	1	Enquire
38	N90335006	Clamping washer	N90335006 Clamping washer	-	2	Enquire
39	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	4	Enquire
40	N90974701	Hexagon socket head panel bolt	N90974701 Hexagon socket head panel bolt	-	2	Enquire
41	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	2	Enquire
42	N90698701	Speed nut Included in position:	N90698701 Speed nut Included in position:	-	2	Enquire
43	3W8867328A	bracket, scuff plate - sill panel	3W8867328A bracket, scuff plate - sill panel right rear,	-	1	Enquire
44	3W0860232	bracket - fire extinguisher	3W0860232 bracket - fire extinguisher PR-6A4	-	1	Enquire
