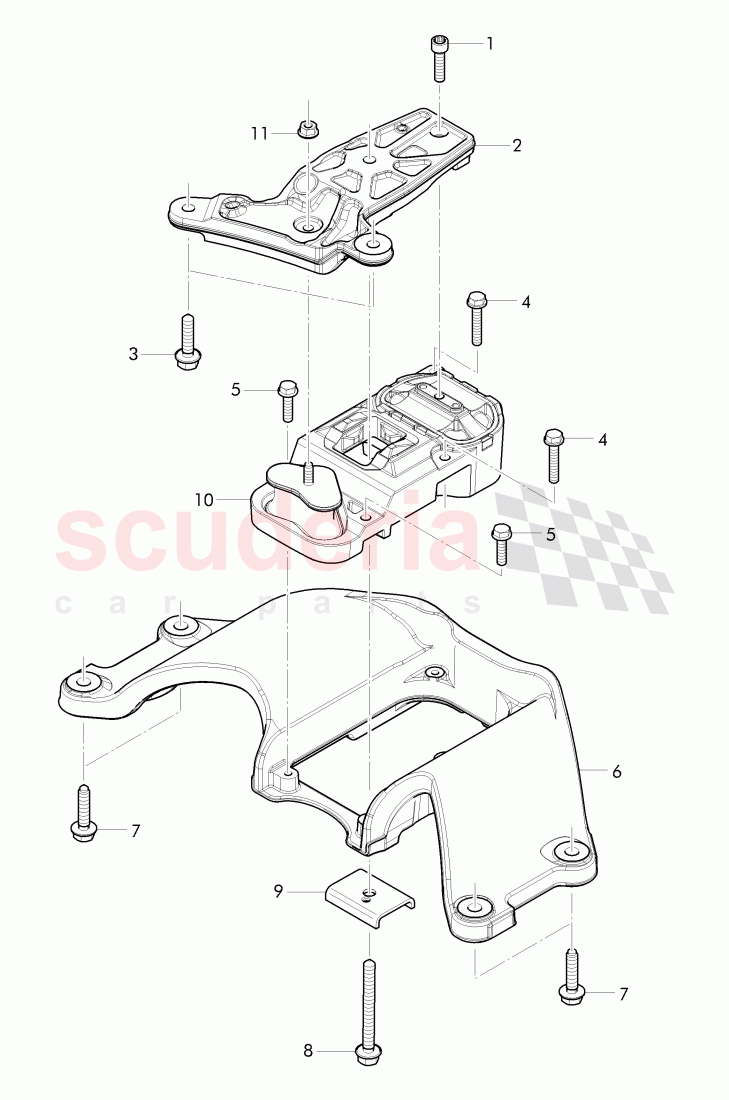

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N10518404	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0399115C	support for transmission, D - 20.02.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10728502	Hex collared bolt alternatively, you can use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10140203	bolt, hex. hd. (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10025004	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0399263K	cross member, for 8-speed automatic gearbox, D - 20.02.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10241605	bolt, hex. hd. with shoulder, D - MJ 2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10699501	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0399291	stop plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0399151B	bonded rubber mounting with, stop shell, only to be used with:, F 3W-H-060 770>>, F ZA-H-060 770>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10609201	Hexagon collar nut	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	N10518404	socket head bolt with inner multipoint head	N10518404 socket head bolt with inner multipoint head M8X30,	-	1	Enquire

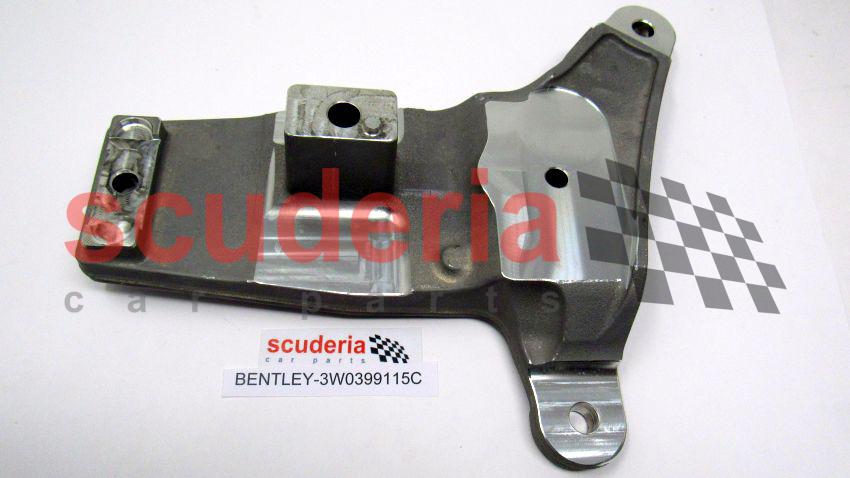

2	3W0399115C	support for transmission, D - 20.02.2017>>	3W0399115C support for transmission, D - 20.02.2017>>	-	1	Enquire
3	N10728502	Hex collared bolt alternatively, you can use:	N10728502 Hex collared bolt alternatively, you can use: M10X42,	-	2	Enquire
4	N10140203	bolt, hex. hd. (combi.)	N10140203 bolt, hex. hd. (combi.) M8X45,	-	2	Enquire

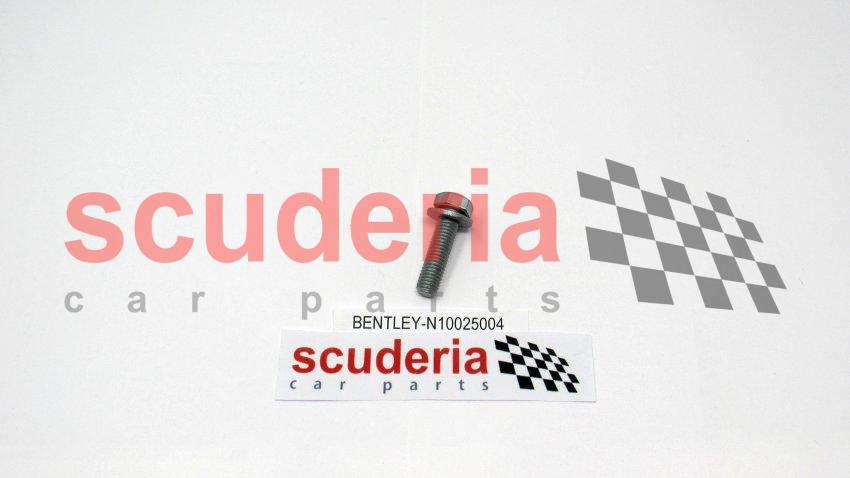

5	N10025004	hexagon head bolt (combi)	N10025004 hexagon head bolt (combi) M8X32,	-	2	Enquire
6	3W0399263K	cross member, for 8-speed automatic gearbox, D - 20.02.2017>>	3W0399263K cross member, for 8-speed automatic gearbox, D - 20.02.2017>>	-	1	Enquire
7	N10241605	bolt, hex. hd. with shoulder, D - MJ 2011>>	N10241605 bolt, hex. hd. with shoulder, D - MJ 2011>> M10X45,	-	4	Enquire
8	N10699501	bolt, hex. hd. with shoulder	N10699501 bolt, hex. hd. with shoulder M10X95,	-	1	Enquire
9	3W0399291	stop plate	3W0399291 stop plate	-	1	Enquire

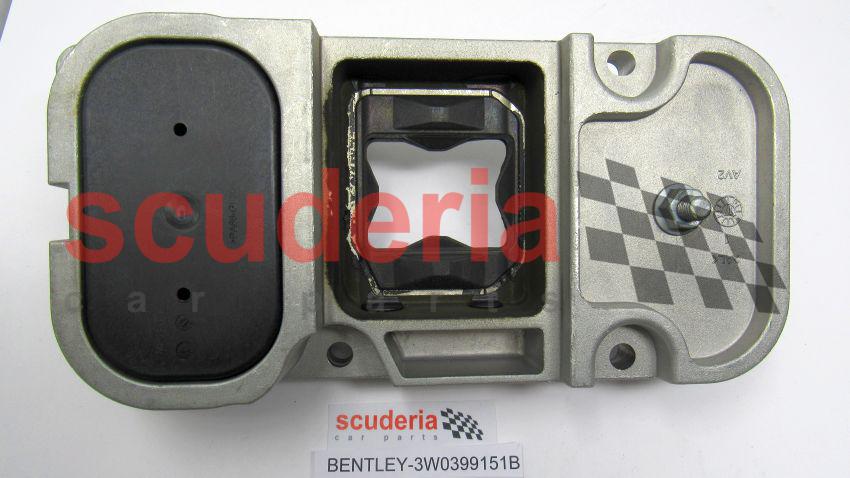

10	3W0399151B	bonded rubber mounting with, stop shell, only to be used with:, F 3W-H-060 770>>, F ZA-H-060 770>>	3W0399151B bonded rubber mounting with, stop shell, only to be used with:, F 3W-H-060 770>>, F ZA-H-060 770>>	-	1	Enquire
11	N10609201	Hexagon collar nut	N10609201 Hexagon collar nut M8,	-	1	Enquire
