Find Your Part

exhaust pipe with catalyst of Bentley Bentley Continental Supersports (2017+)

View All

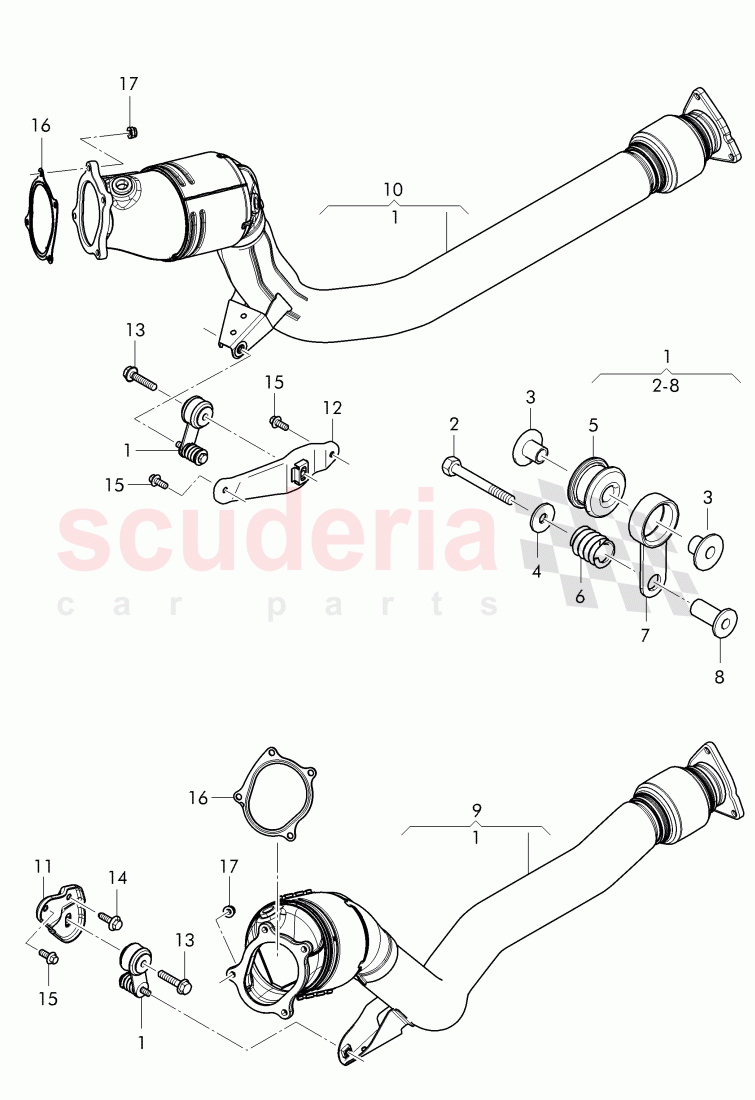

Bentley Continental Supersports (2017+) - exhaust pipe with catalyst

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0253144L	bracket, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0403016	screw, hex. hd., D >> - 11.12.2006	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0253205G	spacer tube, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01167026	Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	4A0253149B	rubber bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	893253353	pressure spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253144L	bracket, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0253205	spacer sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253059H	front catalyst	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253059J	front catalyst	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253465A	bracket for exhaust pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253465B	bracket for exhaust pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91150601	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0197006	bolt, hex. hd. with shoulder, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002806	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253115F	gasket, (Connection flange >, turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91130801	shouldered hex. nut,, self-locking	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0253144L	bracket, D - 11.12.2006>>	3W0253144L bracket, D - 11.12.2006>>	-	2	Enquire
2	N0403016	screw, hex. hd., D >> - 11.12.2006	N0403016 screw, hex. hd., D >> - 11.12.2006 M8X48,	-	2	Enquire
3	4B0253205G	spacer tube, D - 11.12.2006>>	4B0253205G spacer tube, D - 11.12.2006>>	-	4	Enquire
4	N01167026	Washer	N01167026 Washer 8,4X24X2,	-	2	Enquire
5	4A0253149B	rubber bush	4A0253149B rubber bush	-	2	Enquire
6	893253353	pressure spring	893253353 pressure spring	-	2	Enquire
7	3W0253144L	bracket, D - 11.12.2006>>	3W0253144L bracket, D - 11.12.2006>>	-	2	Enquire
8	3D0253205	spacer sleeve	3D0253205 spacer sleeve	-	2	Enquire
9	3W0253059H	front catalyst	3W0253059H front catalyst cylinders 7-12,	-	1	Enquire
10	3W0253059J	front catalyst	3W0253059J front catalyst Cylinder 1-6,	-	1	Enquire
11	3W0253465A	bracket for exhaust pipe	3W0253465A bracket for exhaust pipe cylinders 7-12,	-	1	Enquire
12	3W0253465B	bracket for exhaust pipe	3W0253465B bracket for exhaust pipe Cylinder 1-6,	-	1	Enquire
13	N91150601	hexagon head bolt (combi)	N91150601 hexagon head bolt (combi) M10X48,	-	2	Enquire
14	N0197006	bolt, hex. hd. with shoulder, D - 11.12.2006>>	N0197006 bolt, hex. hd. with shoulder, D - 11.12.2006>> M8X30,	-	1	Enquire
15	WHT002806	bolt	WHT002806 bolt M8X20,	-	3	Enquire
16	3W0253115F	gasket, (Connection flange >, turbocharger)	3W0253115F gasket, (Connection flange >, turbocharger)	-	2	Enquire
17	N91130801	shouldered hex. nut,, self-locking	N91130801 shouldered hex. nut,, self-locking M8,	-	8	Enquire
