Bentley Continental Supersports (2017+) - water cooling for turbocharger

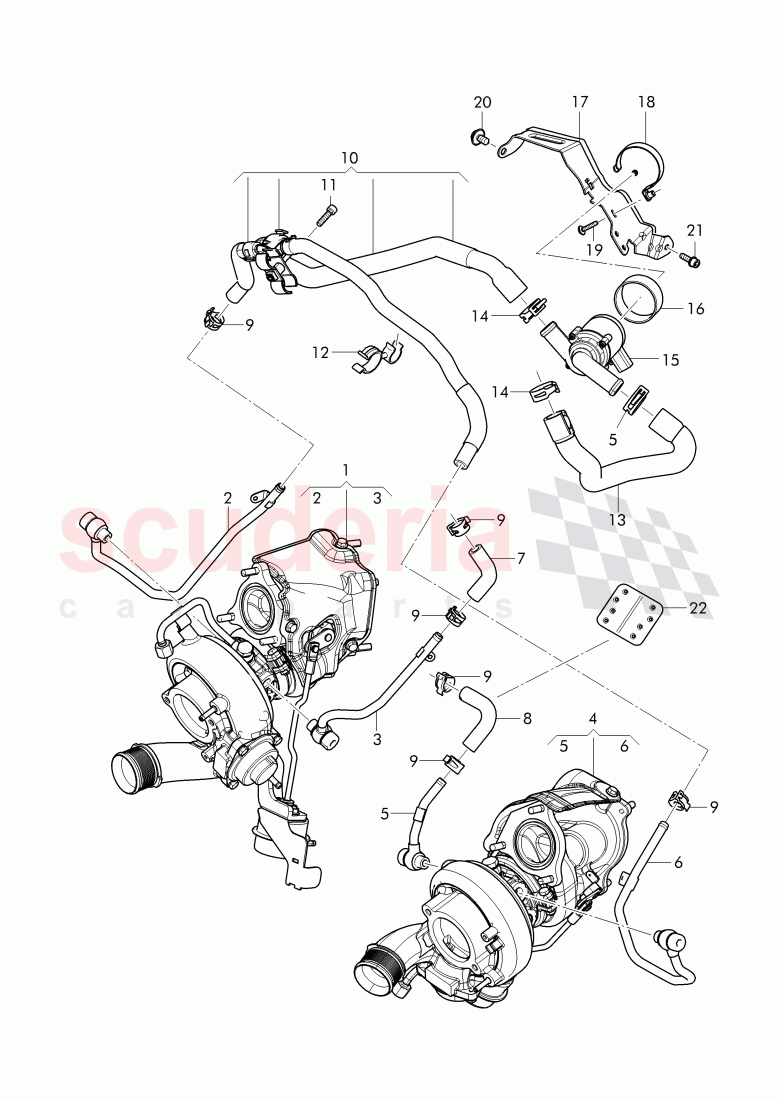

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0121444F	water hose, D - 30.03.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121444D	water hose, D - 24.11.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90770201	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0122444J	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10456201	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10550601	hose clip, included in position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121449H	water hose, (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0965561H	additional water pump, (For turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121300	Spring pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121079H	bracket for additional water, pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	4Z7121703	bracket for additional water, pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10634001	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90415405	socket head bolt with hexagon socket head (combination) D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	8L9121653A	heat insulation	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
7	3W0121444F	water hose, D - 30.03.2015>>	3W0121444F water hose, D - 30.03.2015>>	-	1	Enquire
8	3W0121444D	water hose, D - 24.11.2014>>	3W0121444D water hose, D - 24.11.2014>>	-	1	Enquire
9	N90770201	Spring band clamp	N90770201 Spring band clamp 17X12,	-	6	Enquire
10	3W0122444J	water coolant pipe with, water hose	3W0122444J water coolant pipe with, water hose rear,	-	1	Enquire
11	N10456201	socket head bolt with inner multipoint head	N10456201 socket head bolt with inner multipoint head M6X25,	-	1	Enquire
12	N10550601	hose clip, included in position:	N10550601 hose clip, included in position:	-	1	Enquire
13	3W0121449H	water hose, (For turbocharger)	3W0121449H water hose, (For turbocharger)	-	1	Enquire
14	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	3	Enquire
15	3W0965561H	additional water pump, (For turbocharger)	3W0965561H additional water pump, (For turbocharger)	-	1	Enquire
16	3W0121300	Spring pin	3W0121300 Spring pin	-	1	Enquire
17	3W0121079H	bracket for additional water, pump	3W0121079H bracket for additional water, pump	-	1	Enquire
18	4Z7121703	bracket for additional water, pump	4Z7121703 bracket for additional water, pump	-	1	Enquire
19	N10634001	oval hexagon socket head bolt	N10634001 oval hexagon socket head bolt M4X20,	-	1	Enquire
20	N90415405	socket head bolt with hexagon socket head (combination) D - 11.12.2006>>	N90415405 socket head bolt with hexagon socket head (combination) D - 11.12.2006>> M8X20,4,	-	1	Enquire
21	N10248003	socket hd. screw with, collar, D - 11.12.2006>>	N10248003 socket hd. screw with, collar, D - 11.12.2006>> M6X14,	-	1	Enquire
22	8L9121653A	heat insulation	8L9121653A heat insulation	-	1	Enquire
