Central Display, Navigation and TV of Bentley Bentley Continental Supersports Convertible (2017+)

View All

Bentley Continental Supersports Convertible (2017+) - Central Display, Navigation and TV

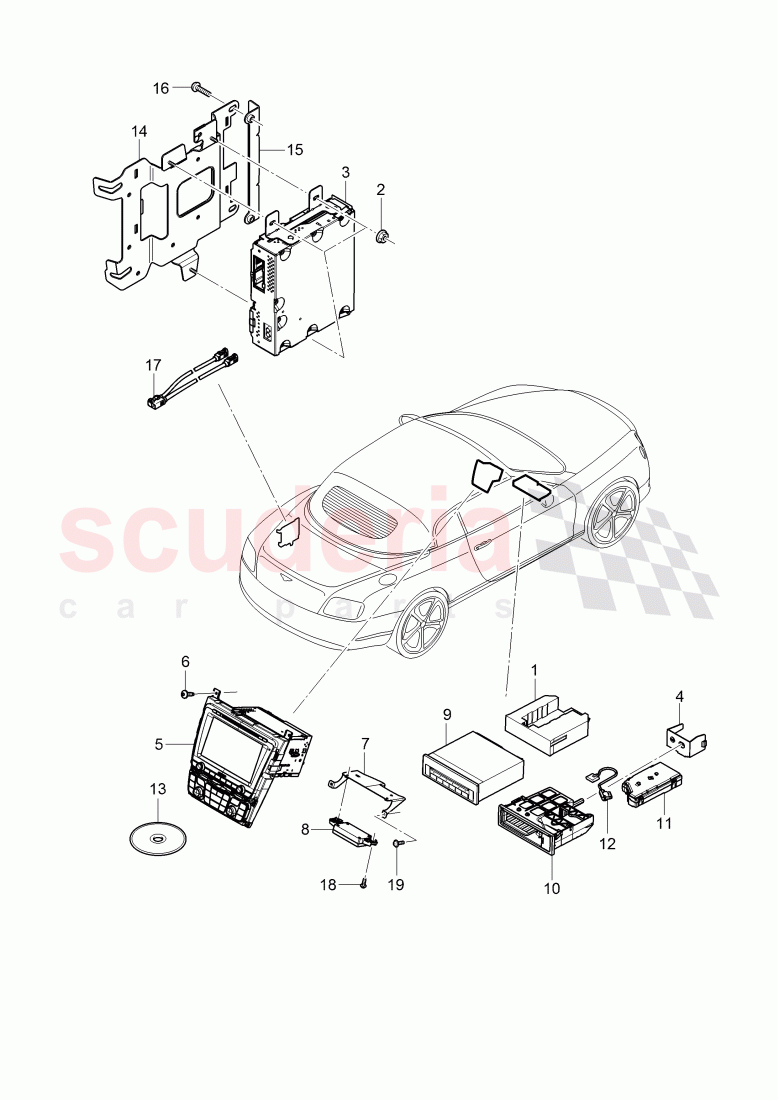

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4W0868547	plastic foam bloc, D - 07.12.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0919129E	v receiver (tuner), D - 13.05.2013>>	Enquire
	3W0919129C	v receiver (tuner)	Enquire
	3W0919129G	v receiver (tuner), F 3W-E-082 780>> 3W-E-092 450, F ZA-E-082 780>> ZA-E-092 450	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035547	Bracket for multimedia, interface box 'MDI'	Enquire
	3W0035547A	Bracket for multimedia, interface box 'MDI'	Enquire

Photo	Part No	Description	Price (each)	Stock
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10684701	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035755	bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0035769F	Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire

Photo	Part No	Description	Price (each)	Stock
	5N0035309A	retaining frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	5N0035342G	Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	5N0035554J	Adapter wiring set for, multimedia interface box 'MDI', D >> - MJ 2012	Enquire
	5N0035554K	Adapter wiring set for, multimedia interface box 'MDI', to be used for:, D - 26.01.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0919859CR	dvd-rom for navigation, system, D - 05.09.2016>>	Enquire
	3W0919859DB	dvd-rom for navigation, system, D - 30.01.2017>>	Enquire
	3W0919859CG	dvd-rom for navigation, system, D - 08.11.2015>>	Enquire

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W7907509B	bracket, D - 15.06.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7907509B	bracket, D - 15.06.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91009801	Hex socket head collared bolt, D >> - 16.11.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7971552	harness fortv, receiver (tuner)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90729003	fillister head bolt (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4W0868547	plastic foam bloc, D - 07.12.2015>>	4W0868547 plastic foam bloc, D - 07.12.2015>> PR-7A0	-	1	Enquire
2	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	N10334801 shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366 M4,	-	3	Enquire
3	3W0919129E	v receiver (tuner), D - 13.05.2013>>	3W0919129E v receiver (tuner), D - 13.05.2013>> all countries,, except:, China, PR-QV1	-	1	Enquire
3	3W0919129C	v receiver (tuner)	3W0919129C v receiver (tuner) China, PR-QU3	-	1	Enquire
3	3W0919129G	v receiver (tuner), F 3W-E-082 780>> 3W-E-092 450, F ZA-E-082 780>> ZA-E-092 450	3W0919129G v receiver (tuner), F 3W-E-082 780>> 3W-E-092 450, F ZA-E-082 780>> ZA-E-092 450 digital, PR-QU7	-	1	Enquire
4	3W0035547	Bracket for multimedia, interface box 'MDI'	3W0035547 Bracket for multimedia, interface box 'MDI' lhd, PR-L0L+UF1	-	1	Enquire
4	3W0035547A	Bracket for multimedia, interface box 'MDI'	3W0035547A Bracket for multimedia, interface box 'MDI' rhd, PR-L0R+UF1	-	1	Enquire
5	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 all countries,, except:, north american, area, China, PR-7Q1,7Q9	-	1	Enquire
5	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 north american, area, PR-7Q2	-	1	Enquire
5	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 China, PR-7T4	-	1	Enquire
6	N10684701	Oval hexagon socket head bolt	N10684701 Oval hexagon socket head bolt M5X20,	-	6	Enquire
7	3W0035755	bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	3W0035755 bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015 PR-QF5+8YY,, 8YG	-	1	Enquire
8	3D0035769F	Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	3D0035769F Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015 PR-QF5+8YY,, 8YG	-	1	Enquire
9	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 6-DISC, PR-7A2+NZ0	-	1	Enquire
10	5N0035309A	retaining frame	5N0035309A retaining frame	-	1	Enquire
11	5N0035342G	Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>>	5N0035342G Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>>	-	1	Enquire
12	5N0035554J	Adapter wiring set for, multimedia interface box 'MDI', D >> - MJ 2012	5N0035554J Adapter wiring set for, multimedia interface box 'MDI', D >> - MJ 2012 north american, area, iPod Nano, iPod Touch, iPhone 1-4S, PR-UF1+7Q2	-	1	Enquire
12	5N0035554K	Adapter wiring set for, multimedia interface box 'MDI', to be used for:, D - 26.01.2015>>	5N0035554K Adapter wiring set for, multimedia interface box 'MDI', to be used for:, D - 26.01.2015>> all countries,, except:, north american, area, iPod Nano, iPod Touch, PR-UF1+7Q1,, 7Q9,7T4	-	1	Enquire
13	3W0919859CR	dvd-rom for navigation, system, D - 05.09.2016>>	3W0919859CR dvd-rom for navigation, system, D - 05.09.2016>> north american, area, PR-7RS	-	1	Enquire
13	3W0919859DB	dvd-rom for navigation, system, D - 30.01.2017>>	3W0919859DB dvd-rom for navigation, system, D - 30.01.2017>> western europe, PR-7RT	-	1	Enquire
13	3W0919859CG	dvd-rom for navigation, system, D - 08.11.2015>>	3W0919859CG dvd-rom for navigation, system, D - 08.11.2015>> Eastern Europe, PR-7RK	-	1	Enquire
13	3W0919859CH	dvd-rom for navigation, system, D - 08.11.2015>>	3W0919859CH dvd-rom for navigation, system, D - 08.11.2015>> AGCC states, PR-7RH	-	1	Enquire
13	3W0919859CP	dvd-rom for navigation, system, D - 09.05.2016>>	3W0919859CP dvd-rom for navigation, system, D - 09.05.2016>> Malaysia, Singapore, PR-7RY	-	1	Enquire
13	3W0919859CJ	dvd-rom for navigation, system, D - 08.11.2015>>	3W0919859CJ dvd-rom for navigation, system, D - 08.11.2015>> australia, New Zealand, PR-7RJ,7RL	-	1	Enquire
13	3W0919859CQ	dvd-rom for navigation, system, D - 09.05.2016>>	3W0919859CQ dvd-rom for navigation, system, D - 09.05.2016>> South Africa, PR-7RX	-	1	Enquire
13	3W0919859CM	dvd-rom for navigation, system	3W0919859CM dvd-rom for navigation, system South America, PR-7RW	-	1	Enquire
13	3W0919859CN	dvd-rom for navigation, system	3W0919859CN dvd-rom for navigation, system Chile, PR-77K	-	1	Enquire
14	3W7907509B	bracket, D - 15.06.2015>>	3W7907509B bracket, D - 15.06.2015>>	-	1	Enquire
15	3W7907509B	bracket, D - 15.06.2015>>	3W7907509B bracket, D - 15.06.2015>>	-	1	Enquire
16	N91009801	Hex socket head collared bolt, D >> - 16.11.2015	N91009801 Hex socket head collared bolt, D >> - 16.11.2015 M6X12,	-	2	Enquire
17	3W7971552	harness fortv, receiver (tuner)	3W7971552 harness fortv, receiver (tuner) 2.7M,	-	1	Enquire
18	N90729003	fillister head bolt (combi.)	N90729003 fillister head bolt (combi.) M5X16,	-	2	Enquire
19	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt TP4X12,	-	2	Enquire
