Central Display, Navigation and TV, D - MJ 2012>> of Bentley Bentley Continental Supersports (2009-2011)

View All

Bentley Continental Supersports (2009-2011) - Central Display, Navigation and TV, D - MJ 2012>>

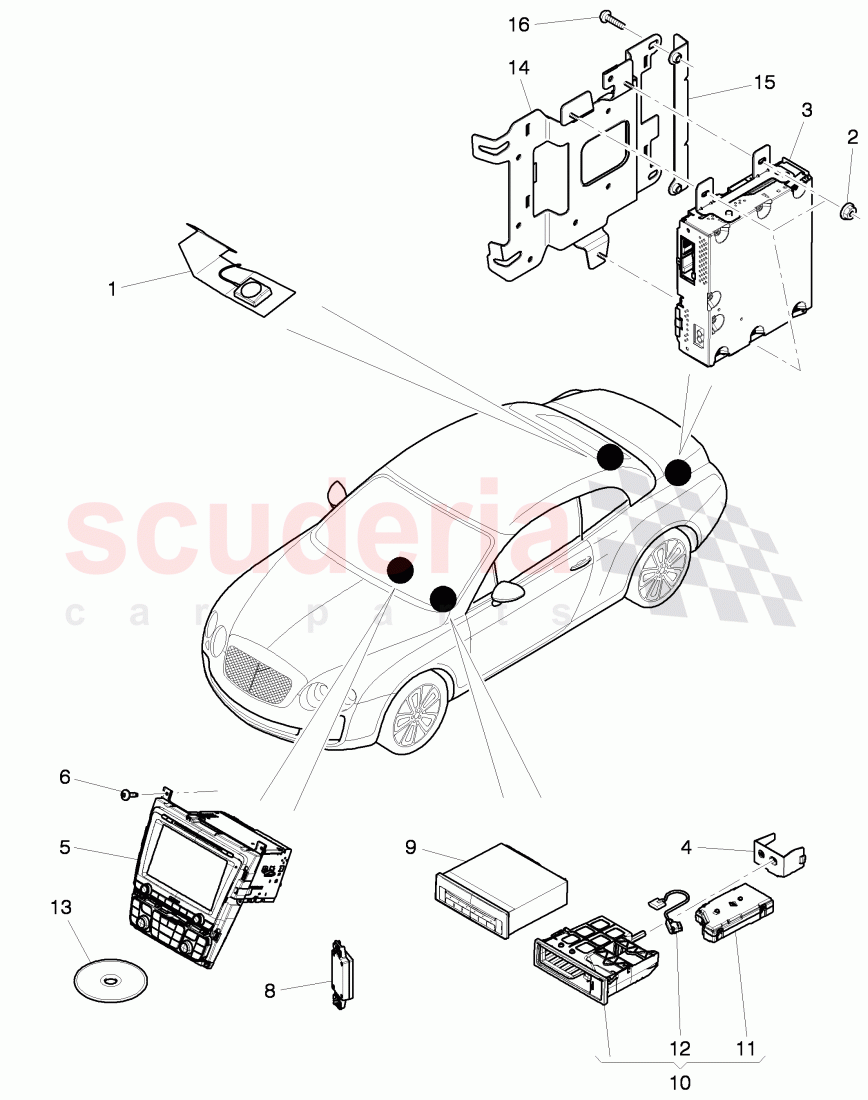

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0919129E	v receiver (tuner), D - 13.05.2013>>	Enquire
	3W0919129C	v receiver (tuner)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035547	Bracket for multimedia, interface box 'MDI'	Enquire
	3W0035547A	Bracket for multimedia, interface box 'MDI'	Enquire

Photo	Part No	Description	Price (each)	Stock
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10684701	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0035769F	Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire

Photo	Part No	Description	Price (each)	Stock
	5N0035344F	Multimedia interface box 'MDI', with integrated control unit, D >> - 18.07.2011	Enquire

Photo	Part No	Description	Price (each)	Stock
	5N0035342G	Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0051510	Adapter wiring set for, multimedia interface box 'MDI'	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0919859CR	dvd-rom for navigation, system, D - 05.09.2016>>	Enquire
	3W0919859DB	dvd-rom for navigation, system, D - 30.01.2017>>	Enquire
	3W0919859CG	dvd-rom for navigation, system, D - 08.11.2015>>	Enquire

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W7907509B	bracket, D - 15.06.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7907509B	bracket, D - 15.06.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91009801	Hex socket head collared bolt, D >> - 16.11.2015	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	N10334801 shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366 M4, PR-QV1	-	3	Enquire
3	3W0919129E	v receiver (tuner), D - 13.05.2013>>	3W0919129E v receiver (tuner), D - 13.05.2013>> PR-QV1	-	1	Enquire
3	3W0919129C	v receiver (tuner)	3W0919129C v receiver (tuner) China, PR-QU3	-	1	Enquire
4	3W0035547	Bracket for multimedia, interface box 'MDI'	3W0035547 Bracket for multimedia, interface box 'MDI' PR-L0L+UF1	-	1	Enquire
4	3W0035547A	Bracket for multimedia, interface box 'MDI'	3W0035547A Bracket for multimedia, interface box 'MDI' PR-L0R+UF1	-	1	Enquire
5	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 PR-7Q1+8AY,, 8YY	-	1	Enquire
5	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 north american, area, PR-7Q2+8AY	-	1	Enquire
5	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 China, PR-7T4+8AY	-	1	Enquire
6	N10684701	Oval hexagon socket head bolt	N10684701 Oval hexagon socket head bolt M5X20,	-	6	Enquire
8	3D0035769F	Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	3D0035769F Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015 PR-7Q1+8YY	-	1	Enquire
9	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 6 point, PR-7A2	-	1	Enquire
10	5N0035344F	Multimedia interface box 'MDI', with integrated control unit, D >> - 18.07.2011	5N0035344F Multimedia interface box 'MDI', with integrated control unit, D >> - 18.07.2011 IPOD, PR-UF1	-	1	Enquire
11	5N0035342G	Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>>	5N0035342G Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>> PR-UF1	-	1	Enquire
12	3W0051510	Adapter wiring set for, multimedia interface box 'MDI'	3W0051510 Adapter wiring set for, multimedia interface box 'MDI'	-	1	Enquire
13	3W0919859CR	dvd-rom for navigation, system, D - 05.09.2016>>	3W0919859CR dvd-rom for navigation, system, D - 05.09.2016>> north american, area, PR-7RS	-	1	Enquire
13	3W0919859DB	dvd-rom for navigation, system, D - 30.01.2017>>	3W0919859DB dvd-rom for navigation, system, D - 30.01.2017>> europe, PR-7Q1+7RT	-	1	Enquire
13	3W0919859CG	dvd-rom for navigation, system, D - 08.11.2015>>	3W0919859CG dvd-rom for navigation, system, D - 08.11.2015>> Eastern Europe, PR-7Q1+7RK	-	1	Enquire
13	3W0919859CG	dvd-rom for navigation, system, D - 08.11.2015>>	3W0919859CG dvd-rom for navigation, system, D - 08.11.2015>> EASTERN EUROPE, PR-7RK+7RK	-	1	Enquire
13	3W0919859CH	dvd-rom for navigation, system, D - 08.11.2015>>	3W0919859CH dvd-rom for navigation, system, D - 08.11.2015>> AGCC states, PR-7RH	-	1	Enquire
13	3W0919859CP	dvd-rom for navigation, system, D - 09.05.2016>>	3W0919859CP dvd-rom for navigation, system, D - 09.05.2016>> Malaysia, Singapore, PR-7RY	-	1	Enquire
13	3W0919859CJ	dvd-rom for navigation, system, D - 08.11.2015>>	3W0919859CJ dvd-rom for navigation, system, D - 08.11.2015>> australia, New Zealand, PR-7RJ,7RL	-	1	Enquire
13	3W0919859CQ	dvd-rom for navigation, system, D - 09.05.2016>>	3W0919859CQ dvd-rom for navigation, system, D - 09.05.2016>> South Africa, PR-7RX	-	1	Enquire
14	3W7907509B	bracket, D - 15.06.2015>>	3W7907509B bracket, D - 15.06.2015>>	-	1	Enquire
15	3W7907509B	bracket, D - 15.06.2015>>	3W7907509B bracket, D - 15.06.2015>>	-	1	Enquire
16	N91009801	Hex socket head collared bolt, D >> - 16.11.2015	N91009801 Hex socket head collared bolt, D >> - 16.11.2015 M6X12,	-	2	Enquire
