Find Your Part

brake caliper, splash shield for brake disc, for vehicles with ceramic, brake disc, D - MJ 2012>> of Bentley Bentley Continental Supersports (2009-2011)

View All

Bentley Continental Supersports (2009-2011) - brake caliper, splash shield for brake disc, for vehicles with ceramic, brake disc, D - MJ 2012>>

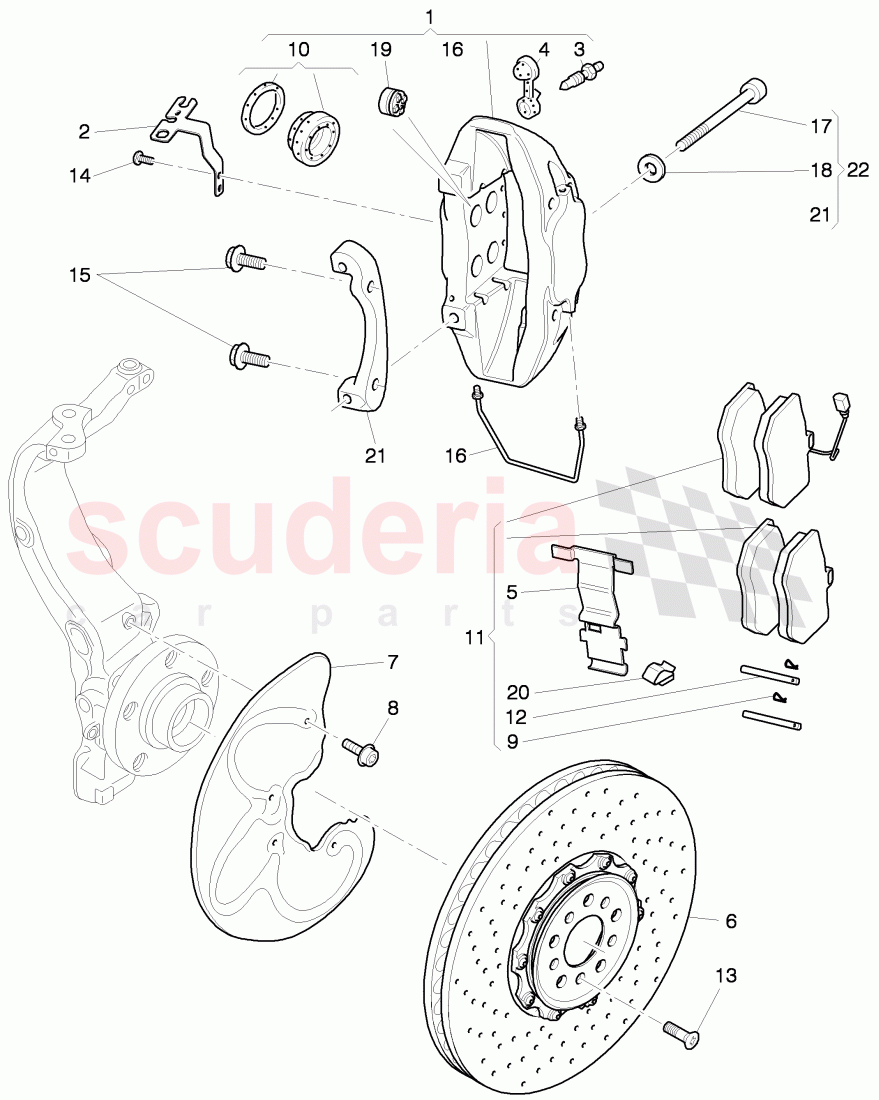

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0698479D	brake caliper housing D - MJ 2011>>	Enquire
	3W0698480D	brake caliper housing D - MJ 2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615133	retainer for brake hose	Enquire
	3W0615134	retainer for brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615273	breather valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615229	dust cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615157	cup expander spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615301T	ceramic brake disc, (vented), D - 19.01.2015>>	Enquire
	3W0615302J	ceramic brake disc, (vented), D - 19.01.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4F0615311D	splash shield for brake disc, F 3W-C-075 137>>, F ZA-C-075 137>>	Enquire
	4F0615312D	splash shield for brake disc, F 3W-C-075 137>>, F ZA-C-075 137>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90842903	hex socket head collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698307	1 set of securing parts, contains:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698471	set of seals for, piston housing, contains:, Square ring, dust seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698151S	1 set of brake pads for disc, brakes, D - 22.08.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615145	retaining pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615146A	guide pin RETAINING SCREW - NOT SHOWN FITTED TO FRONT DISCS TO STOP REAR DISCS BEING FITTED	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90995303	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90876802	bolt,hex.hd.with shoul.(combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611720	brake pipe	Enquire
	3W0611721	brake pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615403A	piston, D >> - 03.10.2011	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615295	spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698135A	mounting, bracket	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0698479D	brake caliper housing D - MJ 2011>>	3W0698479D brake caliper housing D - MJ 2011>> left, PR-1LU	-	1	Enquire
1	3W0698480D	brake caliper housing D - MJ 2011>>	3W0698480D brake caliper housing D - MJ 2011>> right, PR-1LU	-	1	Enquire
2	3W0615133	retainer for brake hose	3W0615133 retainer for brake hose left, PR-1LU	-	1	Enquire
2	3W0615134	retainer for brake hose	3W0615134 retainer for brake hose right, PR-1LU	-	1	Enquire
3	3W0615273	breather valve	3W0615273 breather valve	-	1	Enquire
4	3W0615229	dust cap	3W0615229 dust cap	-	1	Enquire
5	3W0615157	cup expander spring	3W0615157 cup expander spring	-	2	Enquire
6	3W0615301T	ceramic brake disc, (vented), D - 19.01.2015>>	3W0615301T ceramic brake disc, (vented), D - 19.01.2015>> left, PR-1LU	-	1	Enquire
6	3W0615302J	ceramic brake disc, (vented), D - 19.01.2015>>	3W0615302J ceramic brake disc, (vented), D - 19.01.2015>> right, PR-1LU	-	1	Enquire
7	4F0615311D	splash shield for brake disc, F 3W-C-075 137>>, F ZA-C-075 137>>	4F0615311D splash shield for brake disc, F 3W-C-075 137>>, F ZA-C-075 137>> left, PR-1LU	-	1	Enquire
7	4F0615312D	splash shield for brake disc, F 3W-C-075 137>>, F ZA-C-075 137>>	4F0615312D splash shield for brake disc, F 3W-C-075 137>>, F ZA-C-075 137>> right, PR-1LU	-	1	Enquire
8	N90842903	hex socket head collared bolt	N90842903 hex socket head collared bolt M6X12,	-	8	Enquire
9	3W0698307	1 set of securing parts, contains:	3W0698307 1 set of securing parts, contains:	-	4	Enquire
10	3W0698471	set of seals for, piston housing, contains:, Square ring, dust seal	3W0698471 set of seals for, piston housing, contains:, Square ring, dust seal PR-1LU	-	1	Enquire
11	3W0698151S	1 set of brake pads for disc, brakes, D - 22.08.2011>>	3W0698151S 1 set of brake pads for disc, brakes, D - 22.08.2011>> CARBON CERAMIC, PAGID, PR-1LU	-	1	Enquire
12	3W0615145	retaining pin	3W0615145 retaining pin	-	4	Enquire
13	3W0615146A	guide pin RETAINING SCREW - NOT SHOWN FITTED TO FRONT DISCS TO STOP REAR DISCS BEING FITTED	3W0615146A guide pin RETAINING SCREW - NOT SHOWN FITTED TO FRONT DISCS TO STOP REAR DISCS BEING FITTED	-	2	Enquire
14	N90995303	oval hexagon socket head bolt	N90995303 oval hexagon socket head bolt M8X12,	-	2	Enquire
15	N90876802	bolt,hex.hd.with shoul.(combi)	N90876802 bolt,hex.hd.with shoul.(combi) M14X1,5X38,	-	4	Enquire
16	3W0611720	brake pipe	3W0611720 brake pipe right,	-	1	Enquire
16	3W0611721	brake pipe	3W0611721 brake pipe left,	-	1	Enquire
19	3W0615403A	piston, D >> - 03.10.2011	3W0615403A piston, D >> - 03.10.2011 28.6, steel,	-	1	Enquire
20	3W0615295	spring	3W0615295 spring	-	1	Enquire
22	3W0698135A	mounting, bracket	3W0698135A mounting, bracket KIT,	-	2	Enquire
