track control arm of Bentley Bentley Continental Supersports (2009-2011)

View All

Bentley Continental Supersports (2009-2011) - track control arm

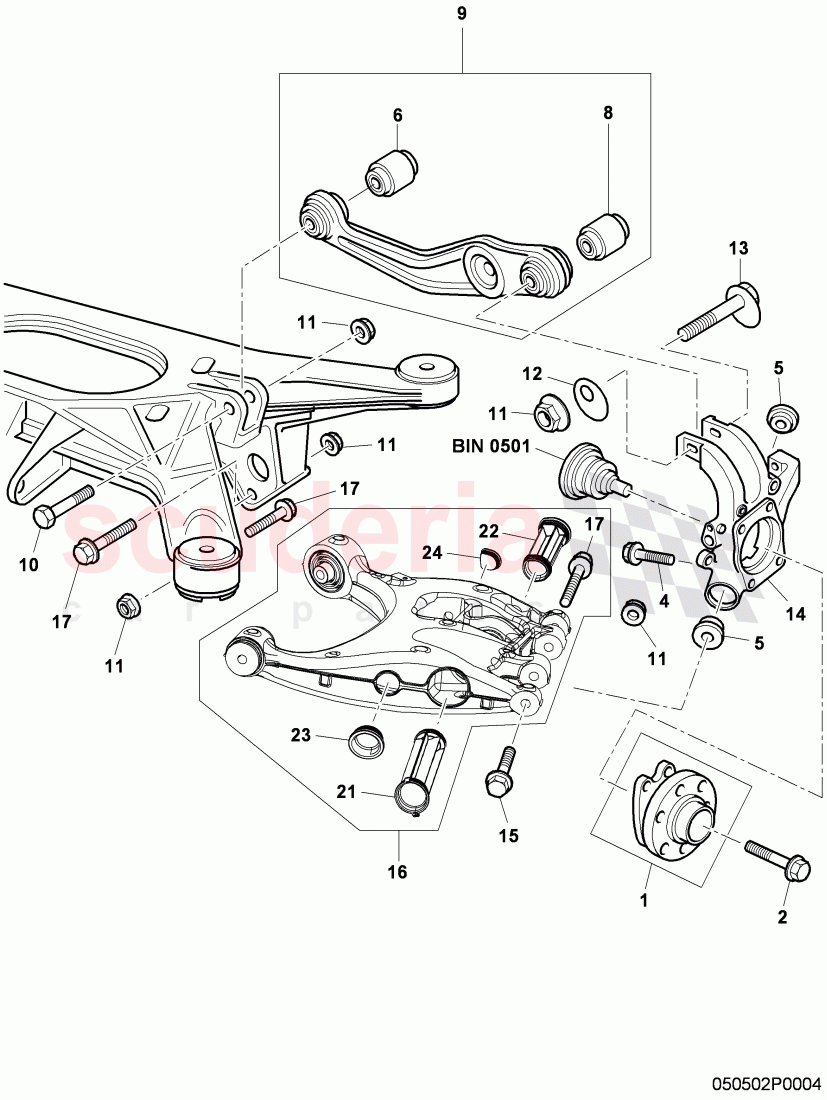

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0407613E	Wheel Hub With Bearing	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0407643A	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000237	ball screw, marked blue	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0505171	bonded rubber mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7505323C	trailing arm, D - 24.11.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10421304	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001656	eccentric washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001661	eccentric screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7505435B	wheel bearing housing	Enquire
	3W7505436B	wheel bearing housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91131901	hexagon screw with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7511511C	track control arm	Enquire
	3W7511512C	track control arm	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10294902	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7511531A	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7511531B	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7511531C	threaded plug	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7511531D	threaded plug	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0407613E	Wheel Hub With Bearing	3W0407613E Wheel Hub With Bearing left, right,	-	2	Enquire
2	8E0407643A	socket head bolt with inner multipoint head	8E0407643A socket head bolt with inner multipoint head M16X72,	-	2	Enquire
4	WHT000237	ball screw, marked blue	WHT000237 ball screw, marked blue M12X45,	-	8	Enquire
5	3D0505171	bonded rubber mounting	3D0505171 bonded rubber mounting	-	4	Enquire
9	3W7505323C	trailing arm, D - 24.11.2014>>	3W7505323C trailing arm, D - 24.11.2014>> rear, upper,	-	1	Enquire
10	N10421304	hexagon head bolt (combi)	N10421304 hexagon head bolt (combi)	-	4	Enquire
11	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	N10106402 shouldered hex. nut,, self-locking, D >> - 12.06.2017 M12X1,5,	-	1	Enquire
12	WHT001656	eccentric washer	WHT001656 eccentric washer	-	2	Enquire
13	WHT001661	eccentric screw	WHT001661 eccentric screw	-	2	Enquire
14	3W7505435B	wheel bearing housing	3W7505435B wheel bearing housing left rear,	-	1	Enquire
14	3W7505436B	wheel bearing housing	3W7505436B wheel bearing housing right rear,	-	1	Enquire
15	N91131901	hexagon screw with washer	N91131901 hexagon screw with washer	-	2	Enquire
16	3W7511511C	track control arm	3W7511511C track control arm left rear,	-	1	Enquire
16	3W7511512C	track control arm	3W7511512C track control arm right rear,	-	1	Enquire
17	N10294902	hexagon head bolt (combi)	N10294902 hexagon head bolt (combi)	-	6	Enquire
21	3W7511531A	threaded plug	3W7511531A threaded plug	-	2	Enquire
22	3W7511531B	threaded plug	3W7511531B threaded plug	-	2	Enquire
23	3W7511531C	threaded plug	3W7511531C threaded plug	-	2	Enquire
24	3W7511531D	threaded plug	3W7511531D threaded plug	-	2	Enquire
