steering gear of Bentley Bentley Continental Supersports (2009-2011)

View All

Bentley Continental Supersports (2009-2011) - steering gear

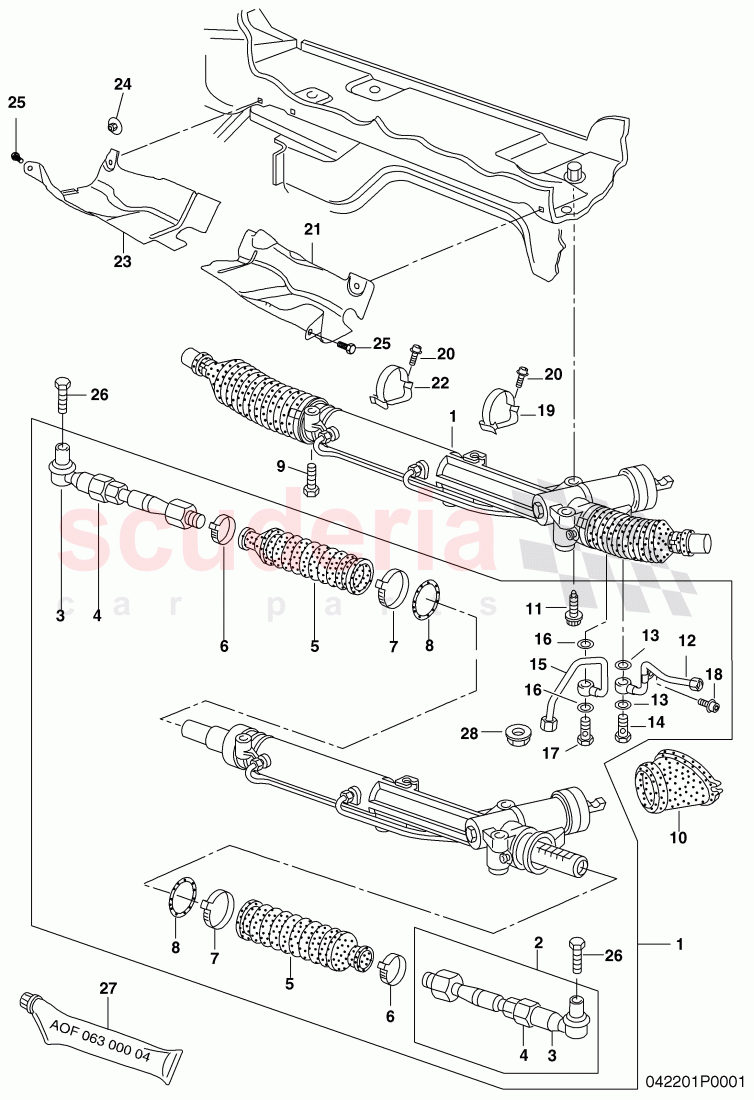

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W1422071D	steering gear, F 3W-8-054 096>>, F ZA-A-062 566>>	Enquire
	3W2422071D	steering gear, F 3W-8-054 096>>, F ZA-A-062 566>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0419801E	track rod	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0419811E	tie rod end	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01116418	hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0419831	gaiter	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0422875	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10575201	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90654202	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10211202	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0422535B	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10625601	screw, hex. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1422894C	high pressure hose	Enquire
	3W2422894D	high pressure hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138494	seal ring use only in conjunction with: D >> - 07.12.2018	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0210747	banjo bolt, D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1422859A	return line, tube	Enquire
	3W2422859C	return line, tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0138486	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90467405	banjo bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01470213	socket head bolt with hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D1422482B	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90944603	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0422703C	heat shield, D - 28.11.2011>> - 24.02.2014	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D1422481B	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0422704B	heat shield	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90708803	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90782803	socket head bolt with inner multipoint head (kombi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90966002	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	G052168A1	steering grease, Service fluid -lubricant-	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215804	Hexagon nut	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

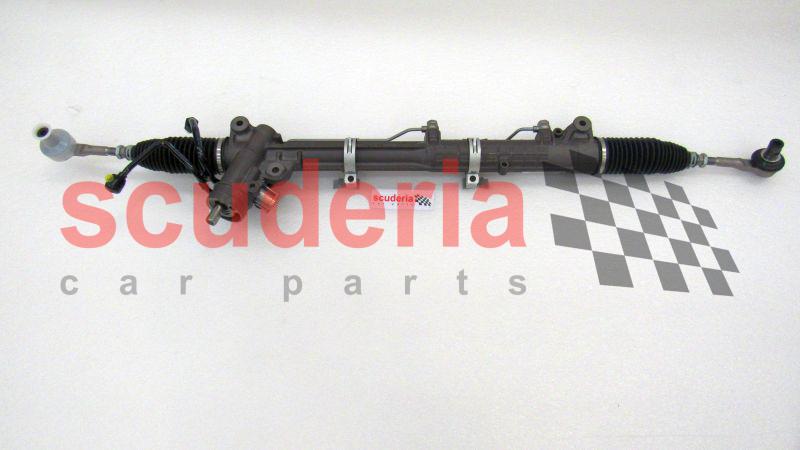

1	3W1422071D	steering gear, F 3W-8-054 096>>, F ZA-A-062 566>>	3W1422071D steering gear, F 3W-8-054 096>>, F ZA-A-062 566>> lhd, PR-L0L	-	1	Enquire
1	3W2422071D	steering gear, F 3W-8-054 096>>, F ZA-A-062 566>>	3W2422071D steering gear, F 3W-8-054 096>>, F ZA-A-062 566>> rhd, PR-L0R	-	1	Enquire
2	4E0419801E	track rod	4E0419801E track rod steel,	-	2	Enquire
3	4E0419811E	tie rod end	4E0419811E tie rod end	-	2	Enquire
4	N01116418	hexagon nut	N01116418 hexagon nut M16X1,50,	-	2	Enquire
5	4E0419831	gaiter	4E0419831 gaiter	-	2	Enquire
6	4E0422875	clamp	4E0422875 clamp	-	2	Enquire
7	N10575201	clamp	N10575201 clamp 68,0X7X0,60,	-	2	Enquire
8	N90654202	o-ring	N90654202 o-ring 57,00X2,00,	-	2	Enquire
9	N10211202	bolt, hex. hd. with shoulder	N10211202 bolt, hex. hd. with shoulder M12X90,	-	2	Enquire
10	3W0422535B	gasket	3W0422535B gasket	-	1	Enquire
11	N10625601	screw, hex. hd.	N10625601 screw, hex. hd. M12X51,	-	1	Enquire
12	3W1422894C	high pressure hose	3W1422894C high pressure hose lhd, PR-L0L	-	1	Enquire
12	3W2422894D	high pressure hose	3W2422894D high pressure hose rhd, PR-L0R	-	1	Enquire
13	N0138494	seal ring use only in conjunction with: D >> - 07.12.2018	N0138494 seal ring use only in conjunction with: D >> - 07.12.2018 A14X20,	-	2	Enquire
14	N0210747	banjo bolt, D - 06.11.2006>>	N0210747 banjo bolt, D - 06.11.2006>>	-	1	Enquire
15	3W1422859A	return line, tube	3W1422859A return line, tube lhd, PR-L0L	-	1	Enquire
15	3W2422859C	return line, tube	3W2422859C return line, tube rhd, PR-L0R	-	1	Enquire
16	N0138486	seal ring	N0138486 seal ring A16X22,	-	2	Enquire
17	N90467405	banjo bolt	N90467405 banjo bolt M16,	-	1	Enquire
18	N01470213	socket head bolt with hexagon socket head	N01470213 socket head bolt with hexagon socket head M6X15,	-	1	Enquire
19	3D1422482B	clamp	3D1422482B clamp right,	-	1	Enquire
20	N90944603	Oval hexagon socket head bolt	N90944603 Oval hexagon socket head bolt M5X12,	-	2	Enquire
21	3W0422703C	heat shield, D - 28.11.2011>> - 24.02.2014	3W0422703C heat shield, D - 28.11.2011>> - 24.02.2014 left,	-	1	Enquire
22	3D1422481B	clamp	3D1422481B clamp left, PR-L0L	-	1	Enquire
23	3W0422704B	heat shield	3W0422704B heat shield right,	-	1	Enquire
24	N90708803	speed nut	N90708803 speed nut 5,	-	2	Enquire
25	N90782803	socket head bolt with inner multipoint head (kombi)	N90782803 socket head bolt with inner multipoint head (kombi) M8X22,	-	2	Enquire
26	N90966002	hexagon head bolt (combi)	N90966002 hexagon head bolt (combi) M8X22,	-	2	Enquire
27	G052168A1	steering grease, Service fluid -lubricant-	G052168A1 steering grease, Service fluid -lubricant- 250G,	-	1	Enquire
28	N90215804	Hexagon nut	N90215804 Hexagon nut M6,	-	1	Enquire
