exhaust pipe with catalyst, D >> - MJ 2010 of Bentley Bentley Continental Supersports (2009-2011)

View All

Bentley Continental Supersports (2009-2011) - exhaust pipe with catalyst, D >> - MJ 2010

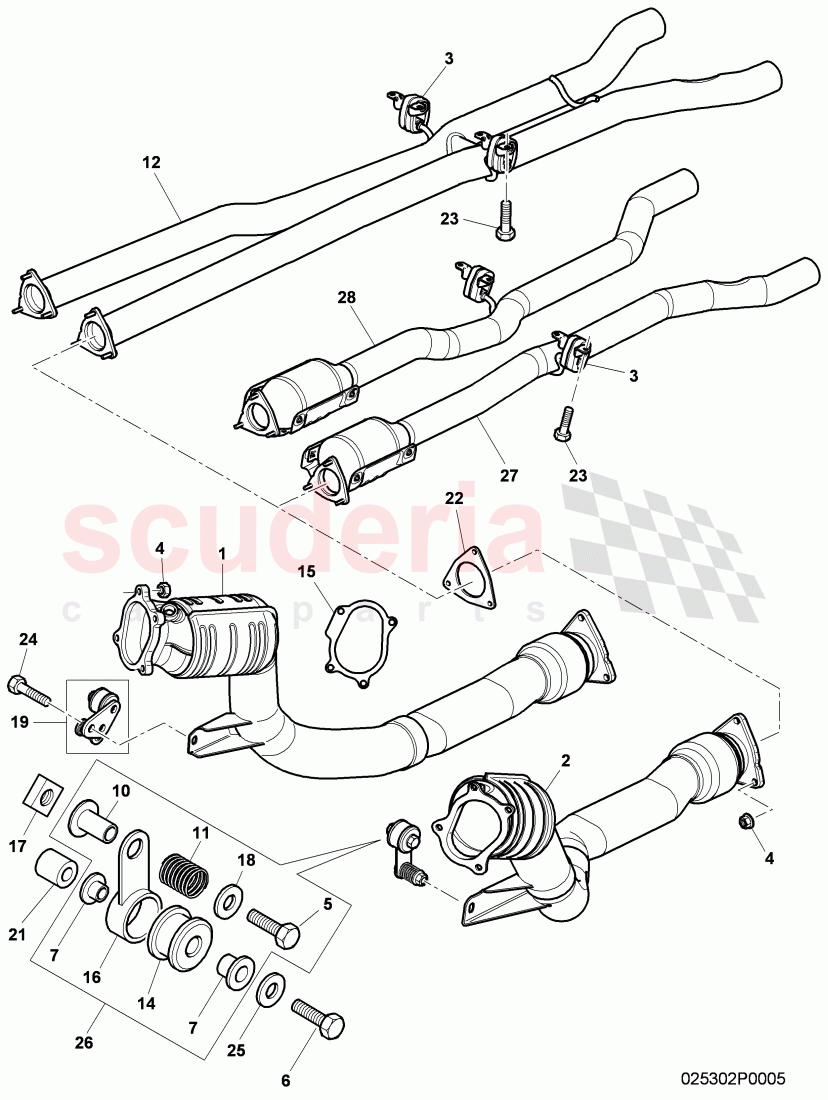

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0253059N	front catalyst, D - 01.10.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253059N	front catalyst, D - 01.10.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0253144AR	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91130801	shouldered hex. nut,, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0403016	screw, hex. hd., D >> - 11.12.2006	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10295605	screw, hex. hd., D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0253205G	spacer tube, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0253205	spacer sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	893253353	pressure spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8253200B	exhaust pipe	Enquire
	3W8253200B	exhaust pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	4A0253149B	rubber bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253115F	gasket, (Connection flange >, turbocharger)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253144L	bracket, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0110569	nut, square, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01167026	Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253144A	front catalyst, mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253150	spacer sleeve, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0253115A	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10668401	Hexagon bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90847602	bolt, hex. hd. with shoulder, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10406105	Washer, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0253144L	bracket, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8254400D	exhaust pipe with catalyst, D - 01.10.2012>>	Enquire
	3W8254400D	exhaust pipe with catalyst, D - 01.10.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8254450D	exhaust pipe with catalyst, D - 01.10.2012>>	Enquire
	3W8254450D	exhaust pipe with catalyst, D - 01.10.2012>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0253059N	front catalyst, D - 01.10.2012>>	3W0253059N front catalyst, D - 01.10.2012>> Cylinder 1-6,	-	1	Enquire
2	3W0253059N	front catalyst, D - 01.10.2012>>	3W0253059N front catalyst, D - 01.10.2012>> cylinders 7-12,	-	1	Enquire
3	3D0253144AR	bracket	3D0253144AR bracket	-	2	Enquire
4	N91130801	shouldered hex. nut,, self-locking	N91130801 shouldered hex. nut,, self-locking M8,	-	12	Enquire
5	N0403016	screw, hex. hd., D >> - 11.12.2006	N0403016 screw, hex. hd., D >> - 11.12.2006 M8X48,	-	2	Enquire
6	N10295605	screw, hex. hd., D - 11.12.2006>>	N10295605 screw, hex. hd., D - 11.12.2006>> M10X70,	-	1	Enquire
7	4B0253205G	spacer tube, D - 11.12.2006>>	4B0253205G spacer tube, D - 11.12.2006>>	-	2	Enquire
10	3D0253205	spacer sleeve	3D0253205 spacer sleeve	-	1	Enquire
11	893253353	pressure spring	893253353 pressure spring	-	2	Enquire
12	3W8253200B	exhaust pipe	3W8253200B exhaust pipe center, all countries,, except:, north american, area, japan, PR-7GH	-	1	Enquire
12	3W8253200B	exhaust pipe	3W8253200B exhaust pipe center, all countries,, except:, north american, area, japan, PR-0GG+B0A,, B0M,B0R,B1P,, B1Z,B2G	-	1	Enquire
14	4A0253149B	rubber bush	4A0253149B rubber bush	-	2	Enquire
15	3W0253115F	gasket, (Connection flange >, turbocharger)	3W0253115F gasket, (Connection flange >, turbocharger)	-	2	Enquire
16	3W0253144L	bracket, D - 11.12.2006>>	3W0253144L bracket, D - 11.12.2006>>	-	2	Enquire
17	N0110569	nut, square, D - 11.12.2006>>	N0110569 nut, square, D - 11.12.2006>> M8,	-	2	Enquire
18	N01167026	Washer	N01167026 Washer M8,	-	2	Enquire
19	3W0253144A	front catalyst, mounting	3W0253144A front catalyst, mounting right,	-	1	Enquire
21	3W0253150	spacer sleeve, D - 11.12.2006>>	3W0253150 spacer sleeve, D - 11.12.2006>>	-	1	Enquire
22	3D0253115A	gasket	3D0253115A gasket	-	2	Enquire
23	N10668401	Hexagon bolt	N10668401 Hexagon bolt M8X18,	-	4	Enquire
24	N90847602	bolt, hex. hd. with shoulder, D - 11.12.2006>>	N90847602 bolt, hex. hd. with shoulder, D - 11.12.2006>> M10X25,	-	2	Enquire
25	N10406105	Washer, D - 11.12.2006>>	N10406105 Washer, D - 11.12.2006>> 10,5X20X2,	-	1	Enquire
26	3W0253144L	bracket, D - 11.12.2006>>	3W0253144L bracket, D - 11.12.2006>> left,	-	1	Enquire
27	3W8254400D	exhaust pipe with catalyst, D - 01.10.2012>>	3W8254400D exhaust pipe with catalyst, D - 01.10.2012>> center left, north american, area, PR-7GA,7GB	-	1	Enquire
27	3W8254400D	exhaust pipe with catalyst, D - 01.10.2012>>	3W8254400D exhaust pipe with catalyst, D - 01.10.2012>> center left, japan, PR-0GG+B0L	-	1	Enquire
28	3W8254450D	exhaust pipe with catalyst, D - 01.10.2012>>	3W8254450D exhaust pipe with catalyst, D - 01.10.2012>> center right, north american, area, PR-7GA,7GB	-	1	Enquire
28	3W8254450D	exhaust pipe with catalyst, D - 01.10.2012>>	3W8254450D exhaust pipe with catalyst, D - 01.10.2012>> center right, japan, PR-0GG+B0L	-	1	Enquire
