vacuum hoses for brake servo, vacuum hoses with connecting parts, D >> - MJ 2014 of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - vacuum hoses for brake servo, vacuum hoses with connecting parts, D >> - MJ 2014

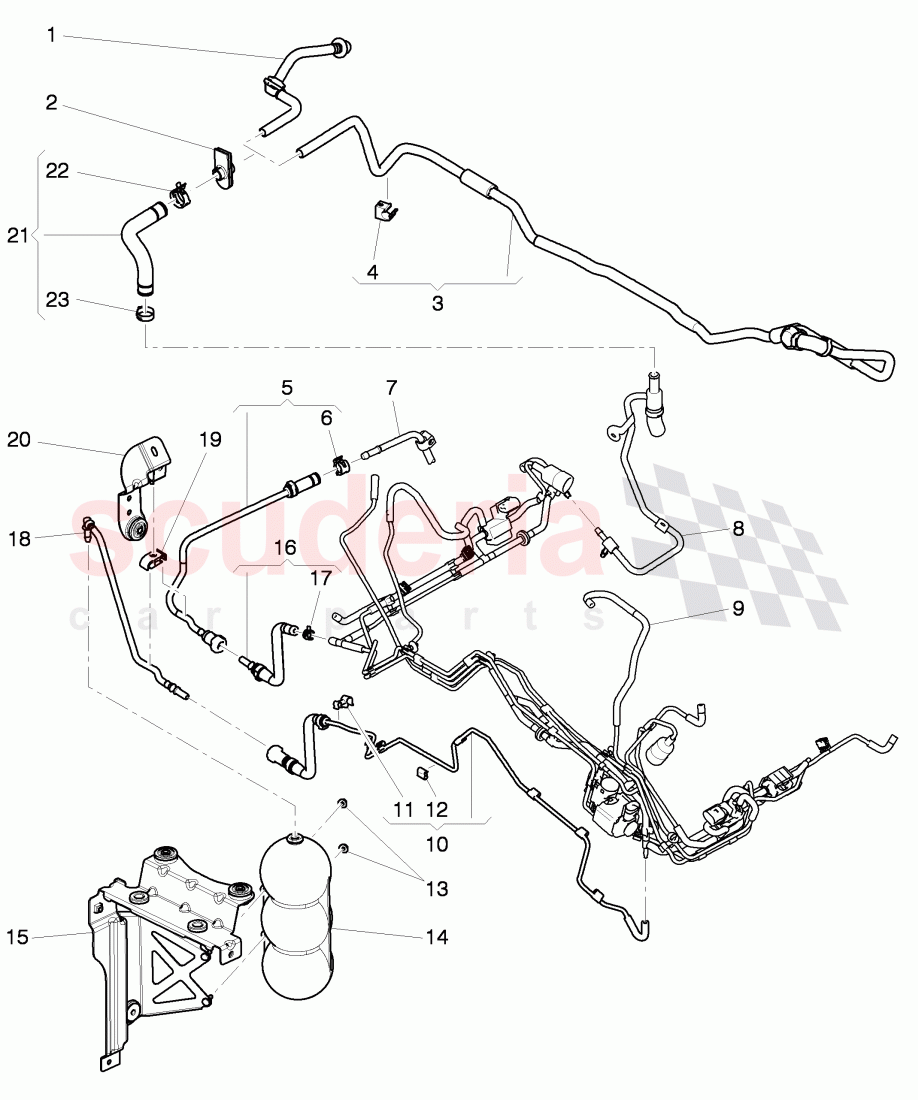

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W2612041AM	vacuum pipe with, check valve, D - 29.10.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2819345B	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1612041AT	vacuum pipe with, check valve, D - 15.12.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4Z7721697A	bracket, to be used for item:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612923A	vacuum hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90986501	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612935A	vacuum pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10401902	Double clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	59131694M	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10017307	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	443131541	vacuum reservoir	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612939	vacuum hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10686301	spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612929A	vacuum pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0201449K	securing clip, D >> - MJ 2016	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612930B	vacuum hose, D - 15.12.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4G0145917	spring clip, D - 21.02.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10201801	retaining clip, F >> 3Y-D-017 737, F >> ZH-D-017 737	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W2612041AM	vacuum pipe with, check valve, D - 29.10.2012>>	3W2612041AM vacuum pipe with, check valve, D - 29.10.2012>> rhd, PR-L0R	-	1	Enquire
2	3W2819345B	grommet	3W2819345B grommet	-	1	Enquire
3	3W1612041AT	vacuum pipe with, check valve, D - 15.12.2012>>	3W1612041AT vacuum pipe with, check valve, D - 15.12.2012>> lhd, PR-L0L	-	1	Enquire
4	4Z7721697A	bracket, to be used for item:	4Z7721697A bracket, to be used for item: lhd, PR-L0L	-	1	Enquire
5	3W0612923A	vacuum hose	3W0612923A vacuum hose	-	1	Enquire
6	N90986501	Spring band clamp	N90986501 Spring band clamp 14,5X12,	-	1	Enquire
10	3W0612935A	vacuum pipe	3W0612935A vacuum pipe	-	1	Enquire
11	N10401902	Double clip	N10401902 Double clip	-	1	Enquire
12	59131694M	clip	59131694M clip (dual pipe),	-	7	Enquire
13	N10017307	Hexagon collar nut	N10017307 Hexagon collar nut M5,	-	2	Enquire
14	443131541	vacuum reservoir	443131541 vacuum reservoir	-	1	Enquire
16	3W0612939	vacuum hose	3W0612939 vacuum hose	-	1	Enquire
17	N10686301	spring band clamp	N10686301 spring band clamp 10,5X8,4,	-	1	Enquire
18	3W0612929A	vacuum pipe	3W0612929A vacuum pipe	-	1	Enquire
19	3D0201449K	securing clip, D >> - MJ 2016	3D0201449K securing clip, D >> - MJ 2016 (dual pipe),	-	1	Enquire
21	3W0612930B	vacuum hose, D - 15.12.2012>>	3W0612930B vacuum hose, D - 15.12.2012>>	-	1	Enquire
22	4G0145917	spring clip, D - 21.02.2013>>	4G0145917 spring clip, D - 21.02.2013>> 21X12,	-	1	Enquire
23	N10201801	retaining clip, F >> 3Y-D-017 737, F >> ZH-D-017 737	N10201801 retaining clip, F >> 3Y-D-017 737, F >> ZH-D-017 737 21X7X0,60,	-	1	Enquire
