loudspeaker, F >> 3W-8-059 516 of Bentley Bentley Continental GTC (2006-2010)

View All

Bentley Continental GTC (2006-2010) - loudspeaker, F >> 3W-8-059 516

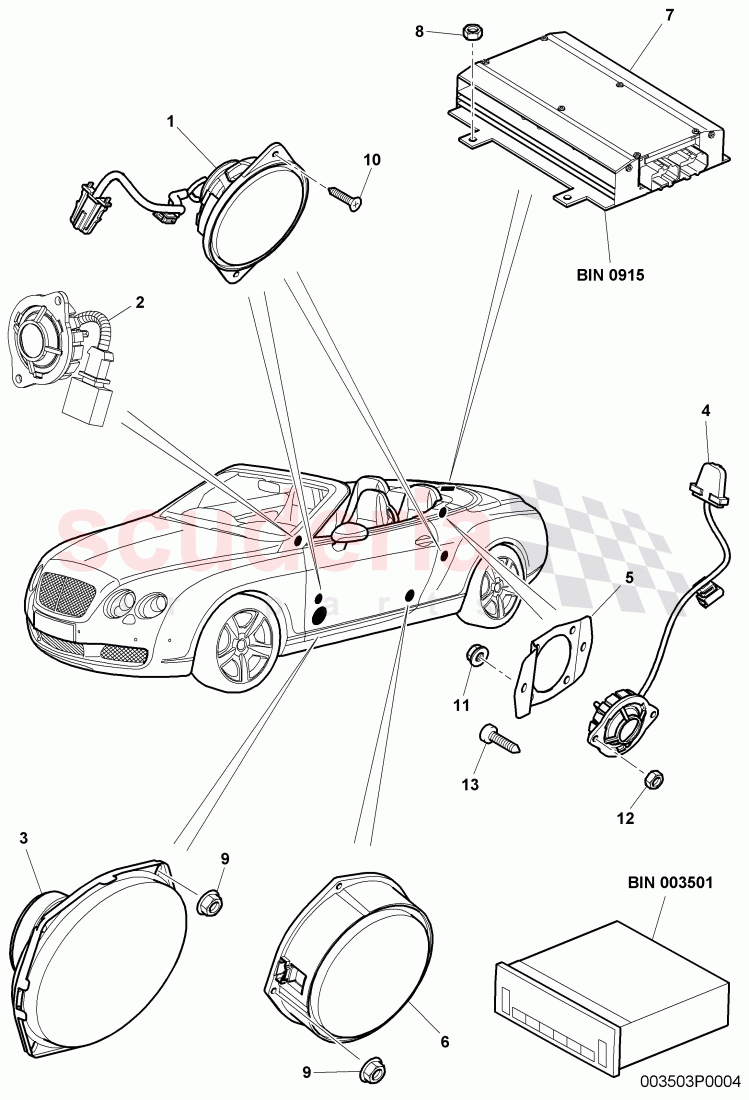

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0035411AG	Mid-range speaker, D - 28.06.2010>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035387G	Tweeter Speaker with, Mounting, D - 28.06.2010>>	Enquire
	3W0035388G	Tweeter Speaker with, Mounting, D - 28.06.2010>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5035411D	Woofer, D - 28.06.2010>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035411Q	loudspeaker tweeter	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035309A	bracket, loudspeaker tweeter	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035411AF	Woofer, D - 28.06.2010>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W7035456C	Booster for sound system	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90342504	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10017304	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10015101	Hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0111812	hex. nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10640201	Oval hexagon socket head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0035411AG	Mid-range speaker, D - 28.06.2010>>	3W0035411AG Mid-range speaker, D - 28.06.2010>> front and rear, PR-9VE,9VJ,, 9VM	-	4	Enquire
2	3W0035387G	Tweeter Speaker with, Mounting, D - 28.06.2010>>	3W0035387G Tweeter Speaker with, Mounting, D - 28.06.2010>> left front,	-	1	Enquire
2	3W0035388G	Tweeter Speaker with, Mounting, D - 28.06.2010>>	3W0035388G Tweeter Speaker with, Mounting, D - 28.06.2010>> right front,	-	1	Enquire
3	3W5035411D	Woofer, D - 28.06.2010>>	3W5035411D Woofer, D - 28.06.2010>> front, PR-9VE,9VM	-	2	Enquire
4	3W0035411Q	loudspeaker tweeter	3W0035411Q loudspeaker tweeter rear, PR-9VE	-	2	Enquire
5	3W0035309A	bracket, loudspeaker tweeter	3W0035309A bracket, loudspeaker tweeter rear, PR-9VE	-	2	Enquire
6	3W0035411AF	Woofer, D - 28.06.2010>>	3W0035411AF Woofer, D - 28.06.2010>> PR-9VE,9VJ,, 9VM	-	2	Enquire
7	3W7035456C	Booster for sound system	3W7035456C Booster for sound system 12 CHANNEL, PR-9VE	-	1	Enquire
8	N90342504	speed nut	N90342504 speed nut M6X19,5X18,0,	-	4	Enquire
9	N10017304	Hexagon collar nut	N10017304 Hexagon collar nut M5,	-	8	Enquire
10	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt ST4X12,	-	8	Enquire
11	N10015101	Hexagon nut	N10015101 Hexagon nut M5,	-	4	Enquire
12	N0111812	hex. nut, self-locking	N0111812 hex. nut, self-locking M4,	-	4	Enquire
13	N10640201	Oval hexagon socket head bolt	N10640201 Oval hexagon socket head bolt M4X10,0,	-	2	Enquire
