oil pressure line for gear oil cooling, Gear oil cooler, F 3W-7-041 093>> 3W-7-048 817 of Bentley Bentley Continental GTC (2006-2010)

View All

Bentley Continental GTC (2006-2010) - oil pressure line for gear oil cooling, Gear oil cooler, F 3W-7-041 093>> 3W-7-048 817

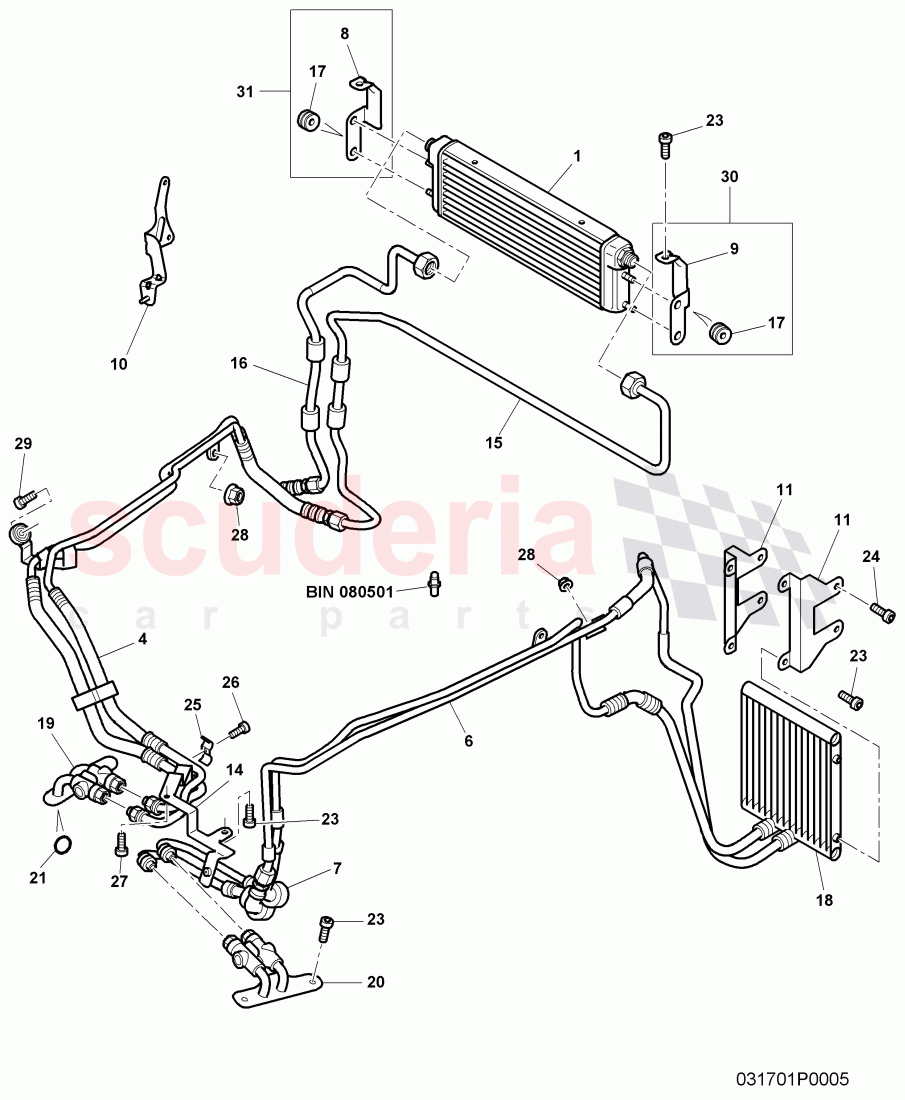

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0317019A	gear oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317801Q	oil pipe, Gear oil cooler, F 3W-7-040 081>> 3W-7-041 092, contains:, O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317801AB	oil pipe, for front axle differential, F >> 3W-C-072 392, F >> ZA-C-072 392	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317801P	oil pipe, for front axle differential, contains:, O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317829D	bracket, D - 21.11.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317830C	bracket, for oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317837E	bracket, oil pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317847D	oil pressure line for gearbox oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317848C	oil pressure line for gearbox oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317867	rubber isolator, oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0317021D	Front Differential Oil Cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317828G	bracket, valve, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317828G	bracket, valve, D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	9E409069	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737101	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90944603	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317837D	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10559902	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91026002	socket head bolt with inner multipoint head D - 11.12.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90969901	Hex socket head locating bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317828K	bracket for oil cooler, D - 05.11.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317828K	bracket for oil cooler, D - 05.11.2012>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0317019A	gear oil cooler	3W0317019A gear oil cooler	-	1	Enquire
4	3W0317801Q	oil pipe, Gear oil cooler, F 3W-7-040 081>> 3W-7-041 092, contains:, O-Ring	3W0317801Q oil pipe, Gear oil cooler, F 3W-7-040 081>> 3W-7-041 092, contains:, O-Ring left, 3W0 301 323,	-	1	Enquire
6	3W0317801AB	oil pipe, for front axle differential, F >> 3W-C-072 392, F >> ZA-C-072 392	3W0317801AB oil pipe, for front axle differential, F >> 3W-C-072 392, F >> ZA-C-072 392 right front, 3W0 301 323,	-	1	Enquire
7	3W0317801P	oil pipe, for front axle differential, contains:, O-Ring	3W0317801P oil pipe, for front axle differential, contains:, O-Ring right rear, 3W0 310 323,	-	1	Enquire
10	3W0317829D	bracket, D - 21.11.2011>>	3W0317829D bracket, D - 21.11.2011>>	-	1	Enquire
11	3W0317830C	bracket, for oil cooler	3W0317830C bracket, for oil cooler left, right,	-	2	Enquire
14	3W0317837E	bracket, oil pipe	3W0317837E bracket, oil pipe	-	1	Enquire
15	3W0317847D	oil pressure line for gearbox oil cooling	3W0317847D oil pressure line for gearbox oil cooling right,	-	1	Enquire
16	3W0317848C	oil pressure line for gearbox oil cooling	3W0317848C oil pressure line for gearbox oil cooling left,	-	1	Enquire
17	3W0317867	rubber isolator, oil cooler	3W0317867 rubber isolator, oil cooler	-	4	Enquire
18	4B0317021D	Front Differential Oil Cooler	4B0317021D Front Differential Oil Cooler	-	1	Enquire
19	3W0317828G	bracket, valve, D - 11.12.2006>>	3W0317828G bracket, valve, D - 11.12.2006>> left,	-	1	Enquire
20	3W0317828G	bracket, valve, D - 11.12.2006>>	3W0317828G bracket, valve, D - 11.12.2006>> right,	-	1	Enquire
21	9E409069	o-ring	9E409069 o-ring	-	4	Enquire
23	N90737101	Oval hexagon socket head bolt	N90737101 Oval hexagon socket head bolt M6X12,	-	8	Enquire
24	N90944603	Oval hexagon socket head bolt	N90944603 Oval hexagon socket head bolt M5X12,	-	6	Enquire
25	3W0317837D	bracket	3W0317837D bracket	-	2	Enquire
26	N10559902	socket head bolt with inner multipoint head	N10559902 socket head bolt with inner multipoint head M6X20,	-	2	Enquire
27	N91026002	socket head bolt with inner multipoint head D - 11.12.2006>>	N91026002 socket head bolt with inner multipoint head D - 11.12.2006>> M10X20,	-	1	Enquire
28	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	3	Enquire
29	N90969901	Hex socket head locating bolt	N90969901 Hex socket head locating bolt M6X25,	-	1	Enquire
30	3W0317828K	bracket for oil cooler, D - 05.11.2012>>	3W0317828K bracket for oil cooler, D - 05.11.2012>> right,	-	1	Enquire
31	3W0317828K	bracket for oil cooler, D - 05.11.2012>>	3W0317828K bracket for oil cooler, D - 05.11.2012>> left,	-	1	Enquire
