Find Your Part

solenoid valve, vacuum hoses, F 3W-8-052 846>>, F ZA-A-062 022>>, D >> - MJ 2010 of Bentley Bentley Continental GTC (2006-2010)

View All

Bentley Continental GTC (2006-2010) - solenoid valve, vacuum hoses, F 3W-8-052 846>>, F ZA-A-062 022>>, D >> - MJ 2010

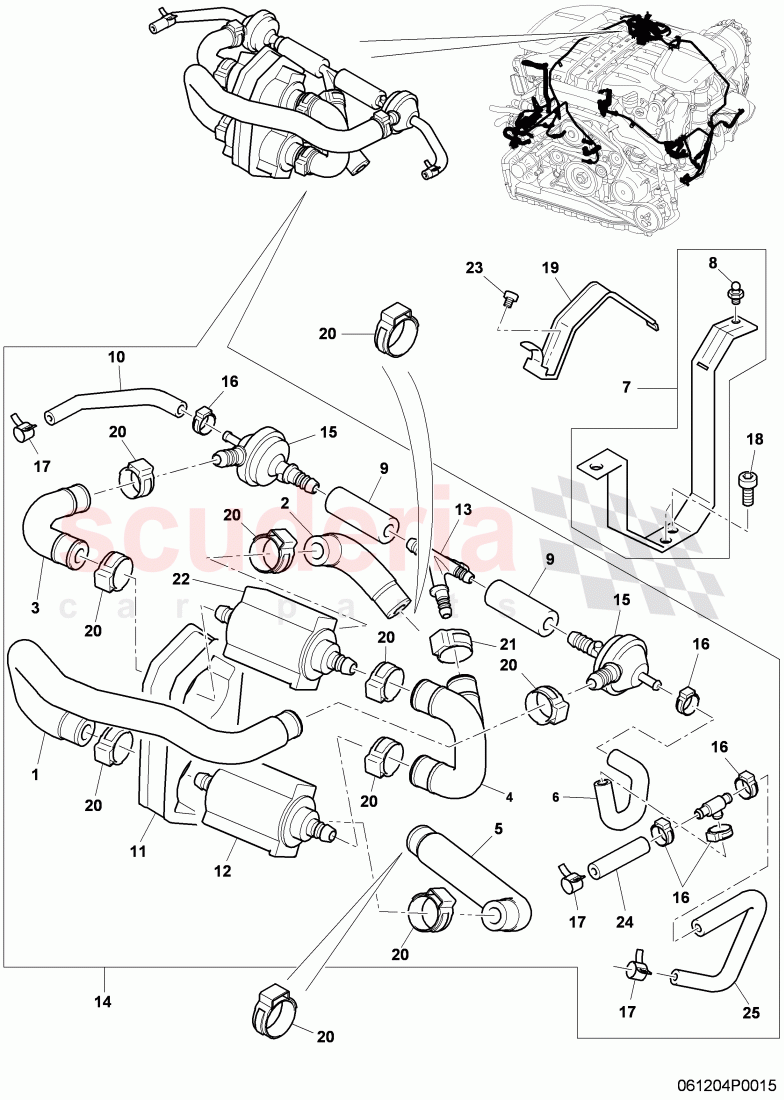

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0612921H	vacuum hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612921H	vacuum hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612921H	vacuum hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612921B	vacuum hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612921H	vacuum hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612733AK	Hose, Service parts	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612391AD	bracket, D >> - 22.07.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000355	Ball screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612733AG	vacuum hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612733AH	vacuum hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612597	damping rubber	Enquire

Photo	Part No	Description	Price (each)	Stock
	78906283C	solenoid valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133794A	double-T-piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612925BD	vacuum pipe, D - 17.08.2009>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612351A	non-return valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10210501	clamp, D >> - 03.09.2012	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10279301	spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10207002	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612391AE	retaining bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612391M	clamp, Only in combination with:, Only in combination with:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196901	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	78906283C	solenoid valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10456101	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612733AL	Hose, Service parts	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0612733BB	hose	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0612921H	vacuum hose	3W0612921H vacuum hose	-	1	Enquire
2	3W0612921H	vacuum hose	3W0612921H vacuum hose	-	1	Enquire
3	3W0612921H	vacuum hose	3W0612921H vacuum hose	-	1	Enquire
4	3W0612921B	vacuum hose	3W0612921B vacuum hose	-	1	Enquire
5	3W0612921H	vacuum hose	3W0612921H vacuum hose	-	1	Enquire
6	3W0612733AK	Hose, Service parts	3W0612733AK Hose, Service parts	-	1	Enquire
7	3W0612391AD	bracket, D >> - 22.07.2013	3W0612391AD bracket, D >> - 22.07.2013	-	1	Enquire
8	WHT000355	Ball screw	WHT000355 Ball screw	-	1	Enquire
9	3W0612733AG	vacuum hose	3W0612733AG vacuum hose	-	2	Enquire
10	3W0612733AH	vacuum hose	3W0612733AH vacuum hose	-	1	Enquire
11	3W0612597	damping rubber	3W0612597 damping rubber	-	1	Enquire
12	78906283C	solenoid valve	78906283C solenoid valve	-	1	Enquire
13	7C133794A	double-T-piece	7C133794A double-T-piece	-	1	Enquire
14	3W0612925BD	vacuum pipe, D - 17.08.2009>>	3W0612925BD vacuum pipe, D - 17.08.2009>>	-	1	Enquire
15	3W0612351A	non-return valve	3W0612351A non-return valve	-	2	Enquire
16	N10210501	clamp, D >> - 03.09.2012	N10210501 clamp, D >> - 03.09.2012 9,5X5X0,5,	-	5	Enquire
17	N10279301	spring band clamp	N10279301 spring band clamp 8X6,	-	2	Enquire
18	N10207002	socket head bolt with inner multipoint head	N10207002 socket head bolt with inner multipoint head M6X13,4,	-	2	Enquire
19	3W0612391AE	retaining bracket	3W0612391AE retaining bracket	-	1	Enquire
20	3W0612391M	clamp, Only in combination with:, Only in combination with:	3W0612391M clamp, Only in combination with:, Only in combination with: 16X7X0,61,	-	8	Enquire
21	N10196901	clamp	N10196901 clamp	-	1	Enquire
22	78906283C	solenoid valve	78906283C solenoid valve	-	1	Enquire
23	N10456101	socket head bolt with inner multipoint head	N10456101 socket head bolt with inner multipoint head M4X10,	-	1	Enquire
24	3W0612733AL	Hose, Service parts	3W0612733AL Hose, Service parts	-	1	Enquire
25	3W0612733BB	hose	3W0612733BB hose	-	1	Enquire
