Alternator, Connecting And Mounting Parts, For Alternator, V-Ribbed Belt, Tensioning Lever With...

Bentley Continental GT (2011-2018)

Find Your Part

Bentley Continental GT (2011-2018) - Alternator, connecting and mounting parts, for alternator, v-ribbed belt, tensioning lever with...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3Y0903021A alternator, (water-cooled), D - 05.03.2012>> Enquire
Photo Part No Description Price (each) Stock
N10610001 bolt, hex. hd. with shoulder Enquire
Photo Part No Description Price (each) Stock
N01100840 hexagon nut Enquire
Photo Part No Description Price (each) Stock
N90403004 cap, D - 31.10.2006>> Enquire
Photo Part No Description Price (each) Stock
N10025004 hexagon head bolt (combi) Enquire
Photo Part No Description Price (each) Stock

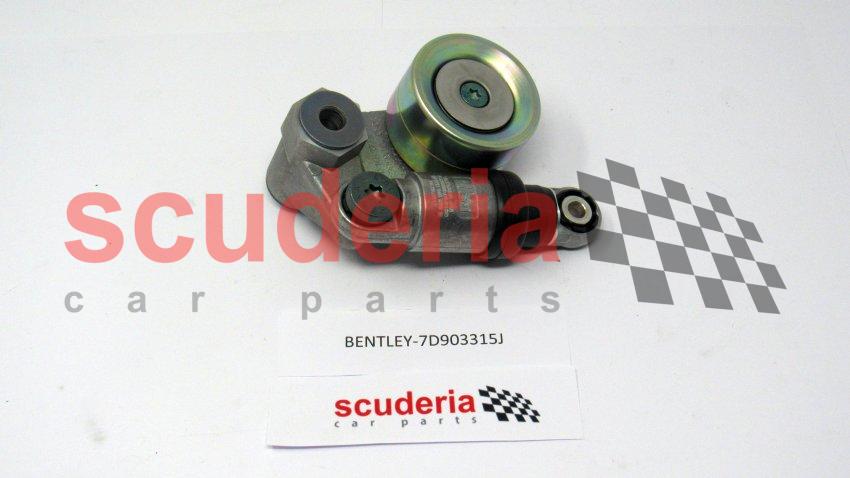

7D903315J Ribbed Belt Tensioner Enquire
Photo Part No Description Price (each) Stock

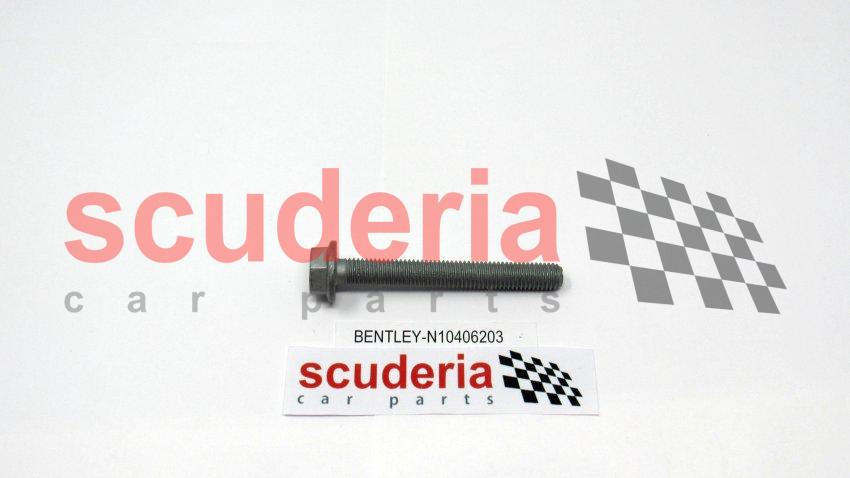

N10406203 bolt, hex. hd. with shoulder Enquire
Photo Part No Description Price (each) Stock

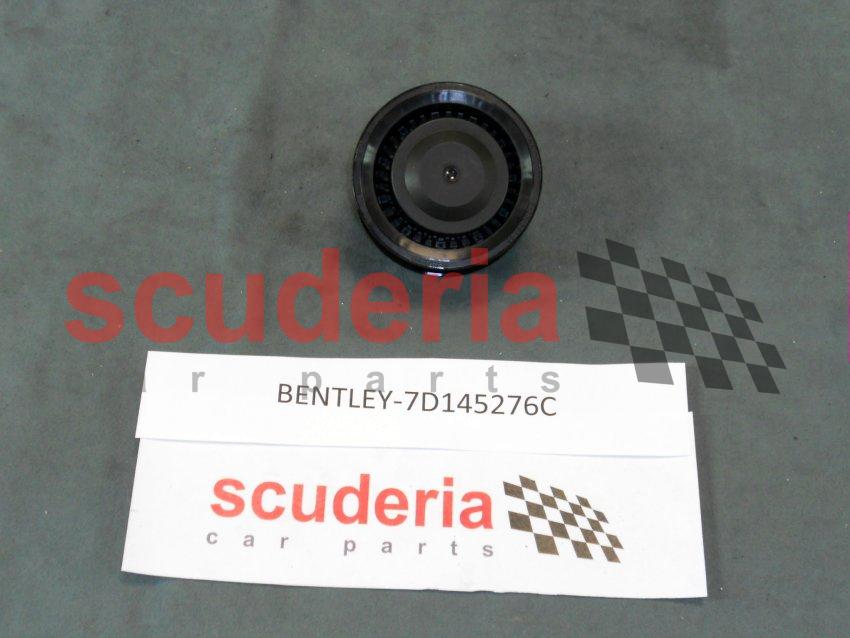

7D145276C Relay Roller Enquire
7D145276C Relay Roller Enquire

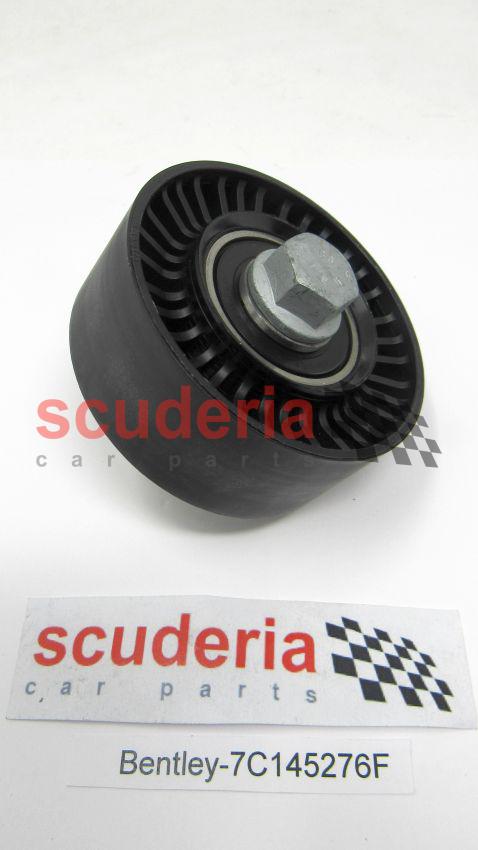

7C145276F relay roller, * Note technical, * product information Enquire
Photo Part No Description Price (each) Stock

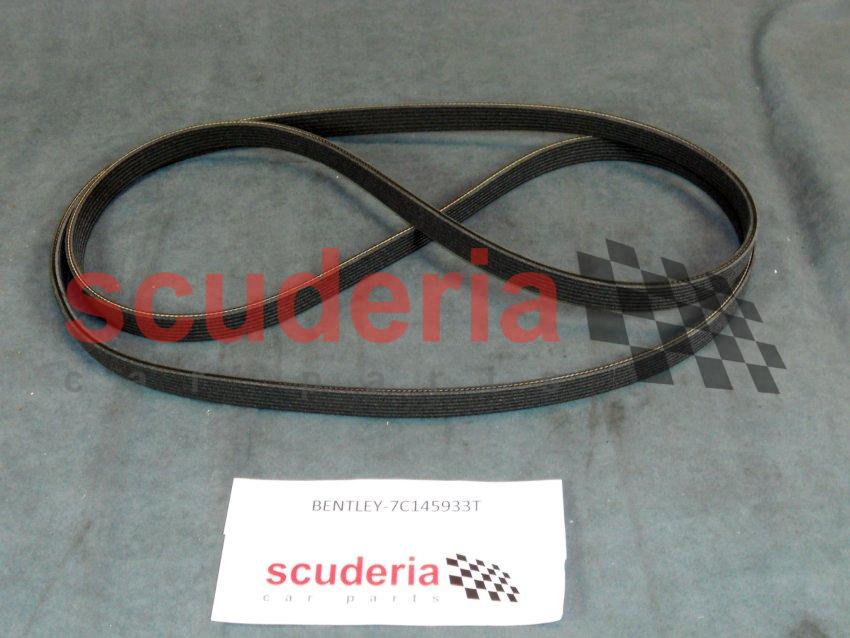

7C145933T Double Ribbed V Belt Enquire
View All

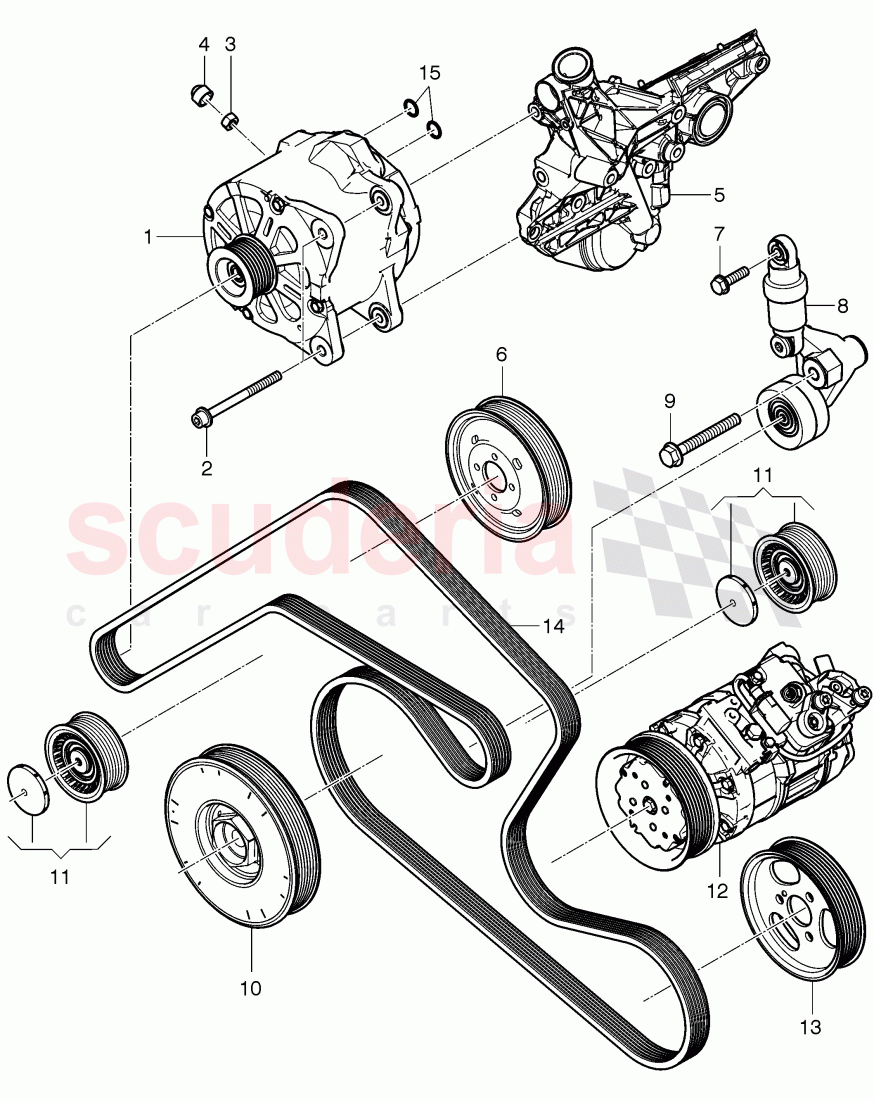

Alternator, connecting and mounting parts, for alternator, v-ribbed belt, tensioning lever with relay, roller, F >> 3W-D-086 017, F >> ZA-D-086 017 of Bentley Bentley Continental GT (2011-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3Y0903021A
alternator, (water-cooled), D - 05.03.2012>>
210A, 		- 1 Enquire
2 N10610001
bolt, hex. hd. with shoulder
M8X90, 		- 2 Enquire
3 N01100840
hexagon nut
M8, 		- 1 Enquire
4 N90403004
cap, D - 31.10.2006>> 		- 1 Enquire
7 N10025004
hexagon head bolt (combi)
M8X32, 		- 1 Enquire
8 7D903315J
Ribbed Belt Tensioner 		- 1 Enquire
9 N10406203
bolt, hex. hd. with shoulder
M10X80, 		- 1 Enquire
11 7D145276C
Relay Roller
Cylinder 1-6, (BANK 1), 		- 1 Enquire
11 7D145276C
Relay Roller
cylinders 7-12, (BANK 2), all countries,, except:, China, 2032874/1, 		- 1 Enquire
11 7C145276F
relay roller, * Note technical, * product information
cylinders 7-12, (BANK 2), China, 		- 1 Enquire
14 7C145933T
Double Ribbed V Belt 		- 1 Enquire
