air condtioner condenser, refrigerant circuit, Engine bay, D - MJ 2017>> of Bentley Bentley Continental GT (2011-2018)

View All

Bentley Continental GT (2011-2018) - air condtioner condenser, refrigerant circuit, Engine bay, D - MJ 2017>>

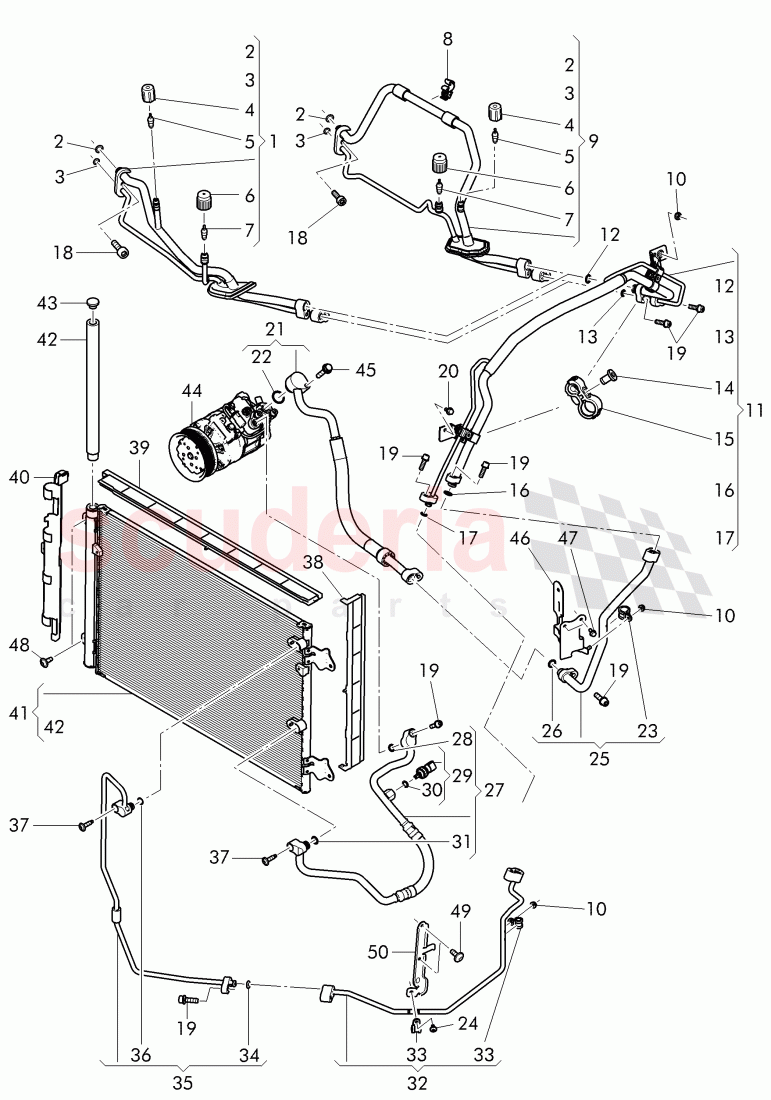

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4W2260741B	refrigerant line	Enquire
	3W2816741E	refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3C0820231	Protective cap for refrigerant: D >> - MJ 2019	Enquire
	5Q0816231	Protective cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0820855A	Evacuating and charging valve for refrigerant:	Enquire
	8E0820855	Evacuating and charging valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0820581	protective cap	Enquire
	5Q0816581	Protective cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0820855	valve insert	Enquire
	8E0820855	Evacuating and charging valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0201449R	securing clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1260741C	refrigerant line	Enquire
	3W1816741B	refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0260702B	refrigerant line, heater core, D - 24.11.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	8D0201441C	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0260759H	bracket for refrigerant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90320206	socket head bolt with hexagon socket head (combination) D - 29.05.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10414402	Socket head bolt with hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10158605	bolt,hex.hd.with shoul.(combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0260725A	suction pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737107	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0260713A	suction pipe, D - 12.05.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0260701D	suction pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0959126D	pressure sensor, D - 04.07.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0260706B	refrigerant line, D - 12.05.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0260703B	refrigerant line, D - MJ 2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90969901	Hex socket head locating bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0260255	sealing strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0260423	sealing strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0819216	air duct	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0260401A	refrigerant condenser with, dryer, D - 04.11.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0298403	dryer insert with attachment parts	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0260143	cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0195315	Hex collared bolt	Enquire
	N10664502	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0260447B	bracket for refrigerant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10158605	bolt,hex.hd.with shoul.(combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90817003	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90944603	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0260081	bracket for refrigerant pipe	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4W2260741B	refrigerant line	4W2260741B refrigerant line rhd, R134A, PR-L0R+KK1	-	1	Enquire
1	3W2816741E	refrigerant line	3W2816741E refrigerant line rhd, R1234YF, PR-L0R+KK3	-	1	Enquire
2	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5,	-	1	Enquire
3	4E0260749B	seal ring	4E0260749B seal ring 11X2,5,	-	1	Enquire
4	3C0820231	Protective cap for refrigerant: D >> - MJ 2019	3C0820231 Protective cap for refrigerant: D >> - MJ 2019 Small, R134A, PR-KK1	-	1	Enquire
4	5Q0816231	Protective cap	5Q0816231 Protective cap Small, R1234YF, PR-KK3	-	1	Enquire
5	3D0820855A	Evacuating and charging valve for refrigerant:	3D0820855A Evacuating and charging valve for refrigerant: R134A, PR-KK1	-	1	Enquire
5	8E0820855	Evacuating and charging valve	8E0820855 Evacuating and charging valve R1234YF, PR-KK3	-	1	Enquire
6	3D0820581	protective cap	3D0820581 protective cap Large, R134A, PR-KK1	-	1	Enquire
6	5Q0816581	Protective cap	5Q0816581 Protective cap R1234YF, PR-KK3	-	1	Enquire
7	3D0820855	valve insert	3D0820855 valve insert R134A, PR-KK1	-	1	Enquire
7	8E0820855	Evacuating and charging valve	8E0820855 Evacuating and charging valve R1234YF, PR-KK3	-	1	Enquire
8	3D0201449R	securing clip	3D0201449R securing clip 16MM, lhd, PR-L0L	-	1	Enquire
9	3W1260741C	refrigerant line	3W1260741C refrigerant line lhd, R134A, PR-L0L+KK1	-	1	Enquire
9	3W1816741B	refrigerant line	3W1816741B refrigerant line lhd, R1234YF, PR-L0L+KK3	-	1	Enquire
10	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	3	Enquire
11	3W0260702B	refrigerant line, heater core, D - 24.11.2014>>	3W0260702B refrigerant line, heater core, D - 24.11.2014>>	-	1	Enquire
12	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5,	-	1	Enquire
13	3D0260749C	seal ring	3D0260749C seal ring 9,5X2,5,	-	1	Enquire
14	8D0201441C	speed nut	8D0201441C speed nut M5,	-	2	Enquire
15	4H0260759H	bracket for refrigerant pipe	4H0260759H bracket for refrigerant pipe	-	2	Enquire
16	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5,	-	1	Enquire
17	3D0260749C	seal ring	3D0260749C seal ring 9,5X2,5,	-	1	Enquire
18	N90320206	socket head bolt with hexagon socket head (combination) D - 29.05.2006>>	N90320206 socket head bolt with hexagon socket head (combination) D - 29.05.2006>> M10X33,4,	-	1	Enquire
19	N10414402	Socket head bolt with hexagon socket head	N10414402 Socket head bolt with hexagon socket head M8X26,	-	6	Enquire
20	N10158605	bolt,hex.hd.with shoul.(combi)	N10158605 bolt,hex.hd.with shoul.(combi) M6X16,	-	1	Enquire
21	4W0260725A	suction pipe	4W0260725A suction pipe	-	1	Enquire
22	8E0260749C	seal ring	8E0260749C seal ring 23,8X2,4,	-	1	Enquire
24	N90737107	Oval hexagon socket head bolt	N90737107 Oval hexagon socket head bolt M6X12,	-	1	Enquire
25	4W0260713A	suction pipe, D - 12.05.2014>>	4W0260713A suction pipe, D - 12.05.2014>>	-	1	Enquire
26	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5,	-	1	Enquire
27	4W0260701D	suction pipe	4W0260701D suction pipe	-	1	Enquire
28	8E0260749C	seal ring	8E0260749C seal ring 10,8X1,82,	-	1	Enquire
29	3D0959126D	pressure sensor, D - 04.07.2011>>	3D0959126D pressure sensor, D - 04.07.2011>>	-	1	Enquire
30	4E0260749B	seal ring	4E0260749B seal ring 11X2,5,	-	1	Enquire
31	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5,	-	1	Enquire
32	4W0260706B	refrigerant line, D - 12.05.2014>>	4W0260706B refrigerant line, D - 12.05.2014>>	-	1	Enquire
34	3D0260749C	seal ring	3D0260749C seal ring 9,5X2,5,	-	1	Enquire
35	4W0260703B	refrigerant line, D - MJ 2016>>	4W0260703B refrigerant line, D - MJ 2016>>	-	1	Enquire
36	4E0260749B	seal ring	4E0260749B seal ring 11X2,5,	-	1	Enquire
37	N90969901	Hex socket head locating bolt	N90969901 Hex socket head locating bolt M6X25,	-	2	Enquire
38	4W0260255	sealing strip	4W0260255 sealing strip side left,	-	1	Enquire
39	4W0260423	sealing strip	4W0260423 sealing strip upper,	-	1	Enquire
40	4W0819216	air duct	4W0819216 air duct side right,	-	1	Enquire

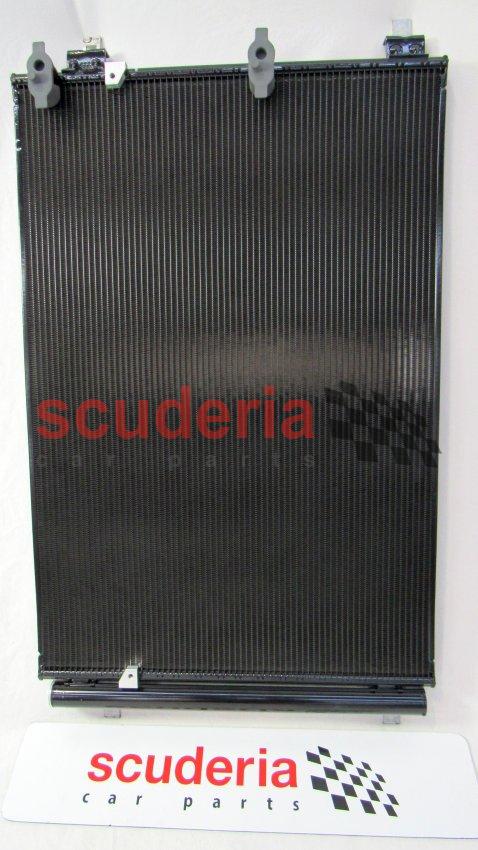

41	4W0260401A	refrigerant condenser with, dryer, D - 04.11.2013>>	4W0260401A refrigerant condenser with, dryer, D - 04.11.2013>>	-	1	Enquire
42	4H0298403	dryer insert with attachment parts	4H0298403 dryer insert with attachment parts	-	1	Enquire
43	3W0260143	cap	3W0260143 cap black,	-	1	Enquire
45	N0195315	Hex collared bolt	N0195315 Hex collared bolt M8X40, PR-KK1	-	1	Enquire
45	N10664502	bolt, hex. hd. with shoulder	N10664502 bolt, hex. hd. with shoulder M8X45, PR-KK3	-	1	Enquire
46	4W0260447B	bracket for refrigerant pipe	4W0260447B bracket for refrigerant pipe	-	1	Enquire
47	N10158605	bolt,hex.hd.with shoul.(combi)	N10158605 bolt,hex.hd.with shoul.(combi) M6X16,	-	2	Enquire
48	N90817003	Hexagon socket head panel bolt	N90817003 Hexagon socket head panel bolt 6,22X17,	-	4	Enquire
49	N90944603	Oval hexagon socket head bolt	N90944603 Oval hexagon socket head bolt M5X12,	-	2	Enquire
50	4W0260081	bracket for refrigerant pipe	4W0260081 bracket for refrigerant pipe left outer,	-	1	Enquire
51	N91128701	Socket head bolt with inner multipoint head	N91128701 Socket head bolt with inner multipoint head M8X32, PR-KK1	-	1	Enquire
51	N10673001	Socket head bolt with inner multipoint head (Kombi)	N10673001 Socket head bolt with inner multipoint head (Kombi) M8X40, PR-KK3	-	1	Enquire
