Bentley Continental GT (2003-2010) - floor covering, F >> 3W-6-032 782

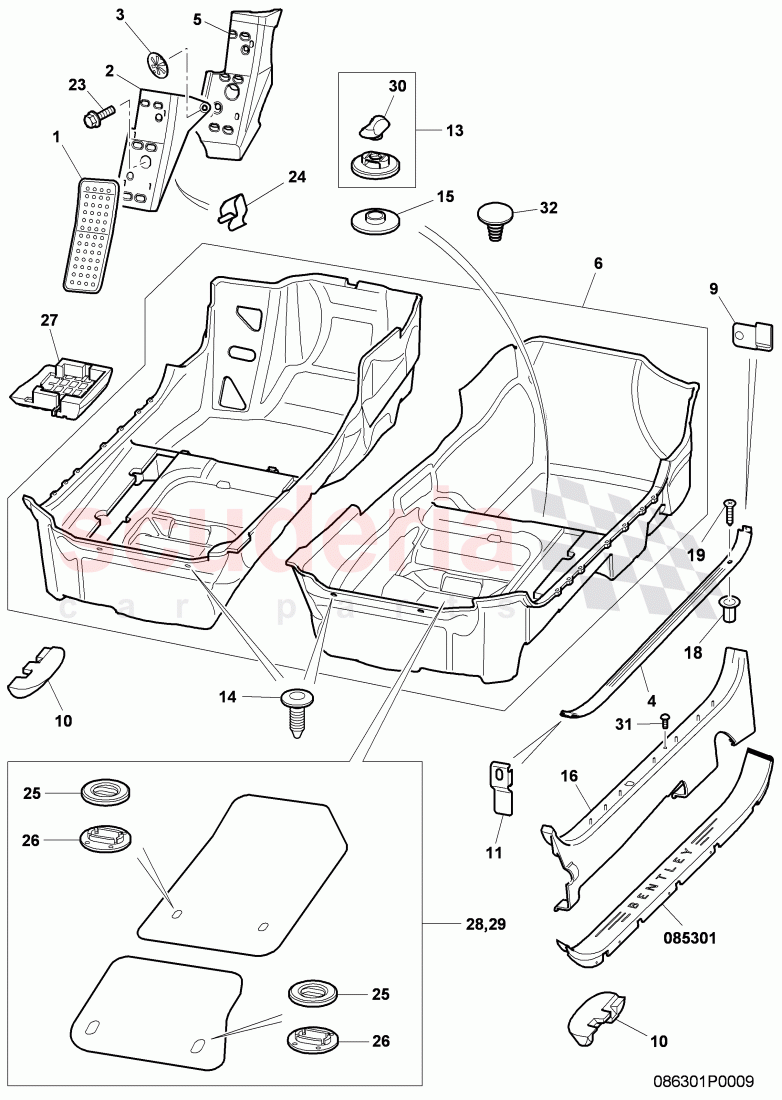

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W1864777M	cover for foot support	Enquire
	3W1864777N	cover for foot support	Enquire
	3W2864777H	cover for foot support	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W1863233	bracket, foot support	Enquire
	3W2863233D	bracket, foot support, D - 21.10.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90335006	Clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3863381D	scuff plate - sill panel	Enquire
	3W3863382D	scuff plate - sill panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D1864419A	foot support	Enquire
	3W2864419A	base for foot support	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1863015	Carpet, (manufactured to order,, refer to the colour table, on Bentley Hub)	Enquire
	3W2863015A	Carpet, (manufactured to order,, refer to the colour table, on Bentley Hub)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868523	bracket, scuff plate - sill panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8863725A	block of foam carpet floor	Enquire
	3W8863726A	block of foam carpet floor	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3867375A	bracket, scuff plate - sill panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0864199A	bracket carpets, foot mats	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867199	press stud	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0864107	fixing plate, for floor cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W3863563C	bracket, scuff plate - sill panel	Enquire
	3W3863564C	bracket, scuff plate - sill panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10516801	expanding nut, F >> 3W-8-056 974	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10442003	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0863581	hex. nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M3827649	clamp, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-019 866, F ZH-E-017 831>> ZH-E-019 866	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0864200A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0864287B	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0919244	bracket, Control unit for access and, start authorisation (KESSY)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1863691Q1BM	1 SET FOOT MATS NAUTIC	Enquire
	3W1863691Q	1 set floor mats, Deep Pile, 1 set =	Enquire
	3W1863691S	Lambswool Rug, (manufactured to order,, refer to the colour table, on Bentley Hub)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2863691	1 set floor mats, (manufactured to order,, refer to the colour table, on Bentley Hub)	Enquire
	3W1863691Q	1 set floor mats, Deep Pile, 1 set =	Enquire
	3W2863691N	1 set floor mats, Lambswool Rug, (manufactured to order,, refer to the colour table, on Bentley Hub)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0863773	rotary knob, clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698601	Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867833	clamp, loop, D >> - MJ 2006	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W1864777M	cover for foot support	3W1864777M cover for foot support lhd, PR-VF0+L0L	-	1	Enquire
1	3W1864777N	cover for foot support	3W1864777N cover for foot support lhd, PR-VF9+L0L	-	1	Enquire
1	3W2864777H	cover for foot support	3W2864777H cover for foot support rhd, PR-VF0+L0R	-	1	Enquire
1	3W2864777J	cover for foot support	3W2864777J cover for foot support rhd, PR-VF9+L0R	-	1	Enquire
2	3W1863233	bracket, foot support	3W1863233 bracket, foot support lhd, PR-L0L	-	1	Enquire
2	3W2863233D	bracket, foot support, D - 21.10.2013>>	3W2863233D bracket, foot support, D - 21.10.2013>> rhd, PR-L0R	-	1	Enquire
3	N90335006	Clamping washer	N90335006 Clamping washer	-	1	Enquire
4	3W3863381D	scuff plate - sill panel	3W3863381D scuff plate - sill panel left inner,	-	1	Enquire
4	3W3863382D	scuff plate - sill panel	3W3863382D scuff plate - sill panel right inner,	-	1	Enquire
5	3D1864419A	foot support	3D1864419A foot support lhd, PR-L0L	-	1	Enquire
5	3W2864419A	base for foot support	3W2864419A base for foot support rhd, PR-L0R	-	1	Enquire
6	3W1863015	Carpet, (manufactured to order,, refer to the colour table, on Bentley Hub)	3W1863015 Carpet, (manufactured to order,, refer to the colour table, on Bentley Hub) lhd, PR-L0L	-	1	Enquire
6	3W2863015A	Carpet, (manufactured to order,, refer to the colour table, on Bentley Hub)	3W2863015A Carpet, (manufactured to order,, refer to the colour table, on Bentley Hub) rhd, PR-L0R	-	1	Enquire
9	3W0868523	bracket, scuff plate - sill panel	3W0868523 bracket, scuff plate - sill panel front, inner,	-	2	Enquire
10	3W8863725A	block of foam carpet floor	3W8863725A block of foam carpet floor left front,	-	1	Enquire
10	3W8863726A	block of foam carpet floor	3W8863726A block of foam carpet floor right front,	-	1	Enquire
11	3W3867375A	bracket, scuff plate - sill panel	3W3867375A bracket, scuff plate - sill panel rear, inner,	-	2	Enquire
13	3D0864199A	bracket carpets, foot mats	3D0864199A bracket carpets, foot mats upper,	-	8	Enquire
14	3W0867199	press stud	3W0867199 press stud	-	4	Enquire
15	3D0864107	fixing plate, for floor cover	3D0864107 fixing plate, for floor cover lower,	-	8	Enquire
16	3W3863563C	bracket, scuff plate - sill panel	3W3863563C bracket, scuff plate - sill panel left,	-	1	Enquire
16	3W3863564C	bracket, scuff plate - sill panel	3W3863564C bracket, scuff plate - sill panel right,	-	1	Enquire
18	N10516801	expanding nut, F >> 3W-8-056 974	N10516801 expanding nut, F >> 3W-8-056 974 5X14,4,	-	2	Enquire
19	N10442003	self-tapping screw	N10442003 self-tapping screw M5X16,	-	2	Enquire
23	3W0863581	hex. nut	3W0863581 hex. nut	-	1	Enquire
24	7M3827649	clamp, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-019 866, F ZH-E-017 831>> ZH-E-019 866	7M3827649 clamp, F >> 3Y-D-018 900, F >> ZH-D-018 900, F 3Y-E-017 831>> 3Y-E-019 866, F ZH-E-017 831>> ZH-E-019 866 13X7,9,	-	1	Enquire
25	3D0864200A	bracket	3D0864200A bracket	-	8	Enquire
26	3D0864287B	bracket	3D0864287B bracket	-	8	Enquire
27	3W0919244	bracket, Control unit for access and, start authorisation (KESSY)	3W0919244 bracket, Control unit for access and, start authorisation (KESSY)	-	1	Enquire
28	3W1863691Q1BM	1 SET FOOT MATS NAUTIC	3W1863691Q1BM 1 SET FOOT MATS NAUTIC lhd, front and rear, PR-L0L+0TD	-	1	Enquire
28	3W1863691Q	1 set floor mats, Deep Pile, 1 set =	3W1863691Q 1 set floor mats, Deep Pile, 1 set = lhd, front and rear, PR-L0L+0TX	-	1	Enquire
28	3W1863691S	Lambswool Rug, (manufactured to order,, refer to the colour table, on Bentley Hub)	3W1863691S Lambswool Rug, (manufactured to order,, refer to the colour table, on Bentley Hub) lhd, front, PR-L0L+0TC	-	1	Enquire
29	3W2863691	1 set floor mats, (manufactured to order,, refer to the colour table, on Bentley Hub)	3W2863691 1 set floor mats, (manufactured to order,, refer to the colour table, on Bentley Hub) rhd, front and rear, PR-L0R+0TD	-	1	Enquire
29	3W1863691Q	1 set floor mats, Deep Pile, 1 set =	3W1863691Q 1 set floor mats, Deep Pile, 1 set = rhd, front and rear, PR-L0R+0TX	-	1	Enquire
29	3W2863691N	1 set floor mats, Lambswool Rug, (manufactured to order,, refer to the colour table, on Bentley Hub)	3W2863691N 1 set floor mats, Lambswool Rug, (manufactured to order,, refer to the colour table, on Bentley Hub) rhd, front, PR-L0R+OTC	-	1	Enquire
30	3D0863773	rotary knob, clamp	3D0863773 rotary knob, clamp	-	8	Enquire
31	N90698601	Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508	N90698601 Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508	-	2	Enquire
32	3W0867833	clamp, loop, D >> - MJ 2006	3W0867833 clamp, loop, D >> - MJ 2006	-	4	Enquire
