Find Your Part

elbow, throttle valve, D >> - MJ 2004 of Bentley Bentley Continental GT (2003-2010)

View All

Bentley Continental GT (2003-2010) - elbow, throttle valve, D >> - MJ 2004

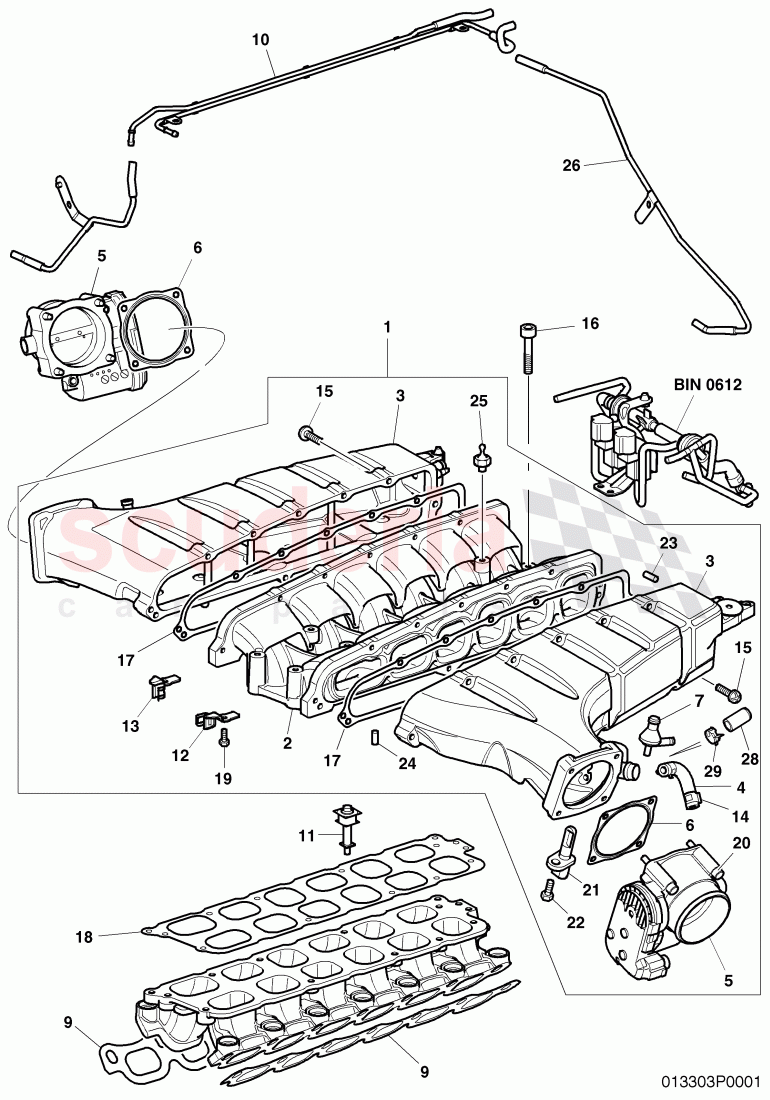

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7C133185BE	elbow, D - 08.03.2004>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133221AT	elbow, D - 27.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133262N	elbow, D >> - 08.03.2004	Enquire
	7C133263R	elbow, D - 08.03.2004>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133371D	Purge Hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133062C	throttle valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	21133073D	gasket, throttle valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	36129846B	ball head	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C129717D	gasket, intake manifold - lower part	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133790B	vacuum pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133588D	Decoupling element	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133334	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133332	bracket, engine cover plate, contains:, spring clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10554004	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10158203	socket head bolt with hexagon socket head (combination)	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133594A	gasket, intake manifold - upper part	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133238F	Intake Manifold Gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10170303	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10127005	socket head bolt with hexagon socket head (combination)	Enquire

Photo	Part No	Description	Price (each)	Stock
	6B905379G	temperature sensor, D - 18.09.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10227805	socket head bolt with hexagon socket head (combination)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10527801	cylinder pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10527801	cylinder pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000355	Ball screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C133797C	vacuum pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	22133369A	cap closure	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7C133185BE	elbow, D - 08.03.2004>>	7C133185BE elbow, D - 08.03.2004>>	-	1	Enquire
2	7C133221AT	elbow, D - 27.03.2017>>	7C133221AT elbow, D - 27.03.2017>> center,	-	1	Enquire
3	7C133262N	elbow, D >> - 08.03.2004	7C133262N elbow, D >> - 08.03.2004 right,	-	1	Enquire
3	7C133263R	elbow, D - 08.03.2004>>	7C133263R elbow, D - 08.03.2004>> left,	-	1	Enquire
4	7C133371D	Purge Hose	7C133371D Purge Hose	-	1	Enquire
5	7C133062C	throttle valve	7C133062C throttle valve	-	2	Enquire
6	21133073D	gasket, throttle valve	21133073D gasket, throttle valve	-	2	Enquire
7	36129846B	ball head	36129846B ball head	-	4	Enquire
9	7C129717D	gasket, intake manifold - lower part	7C129717D gasket, intake manifold - lower part	-	2	Enquire
10	7C133790B	vacuum pipe	7C133790B vacuum pipe	-	1	Enquire
11	7C133588D	Decoupling element	7C133588D Decoupling element M6X54,	-	14	Enquire
12	7C133334	bracket	7C133334 bracket	-	1	Enquire
13	7C133332	bracket, engine cover plate, contains:, spring clip	7C133332 bracket, engine cover plate, contains:, spring clip right front,	-	1	Enquire
14	N90686701	Spring band clamp	N90686701 Spring band clamp 14X12,	-	2	Enquire
15	N10554004	socket head bolt with inner multipoint head	N10554004 socket head bolt with inner multipoint head M6X35,	-	18	Enquire
16	N10158203	socket head bolt with hexagon socket head (combination)	N10158203 socket head bolt with hexagon socket head (combination) M6X60,00 S4,	-	8	Enquire
17	7C133594A	gasket, intake manifold - upper part	7C133594A gasket, intake manifold - upper part	-	2	Enquire
18	7C133238F	Intake Manifold Gasket	7C133238F Intake Manifold Gasket upper/lower,	-	2	Enquire
19	N10170303	round hd. screw	N10170303 round hd. screw M6X10,	-	2	Enquire
20	N10127005	socket head bolt with hexagon socket head (combination)	N10127005 socket head bolt with hexagon socket head (combination) M6X55,	-	8	Enquire
21	6B905379G	temperature sensor, D - 18.09.2006>>	6B905379G temperature sensor, D - 18.09.2006>>	-	2	Enquire
22	N10227805	socket head bolt with hexagon socket head (combination)	N10227805 socket head bolt with hexagon socket head (combination) M6X20,	-	2	Enquire
23	N10527801	cylinder pin	N10527801 cylinder pin 6X12,	-	4	Enquire
24	N10527801	cylinder pin	N10527801 cylinder pin 6X12,	-	2	Enquire
25	WHT000355	Ball screw	WHT000355 Ball screw	-	10	Enquire
26	7C133797C	vacuum pipe	7C133797C vacuum pipe	-	1	Enquire
28	22133369A	cap closure	22133369A cap closure 7,5X24,	-	1	Enquire
29	N90686701	Spring band clamp	N90686701 Spring band clamp 14X12,	-	1	Enquire
