Mechatronic with software, oil strainer, oil pan, for 6 speed automatic transm., D >> - MJ 2007 of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - Mechatronic with software, oil strainer, oil pan, for 6 speed automatic transm., D >> - MJ 2007

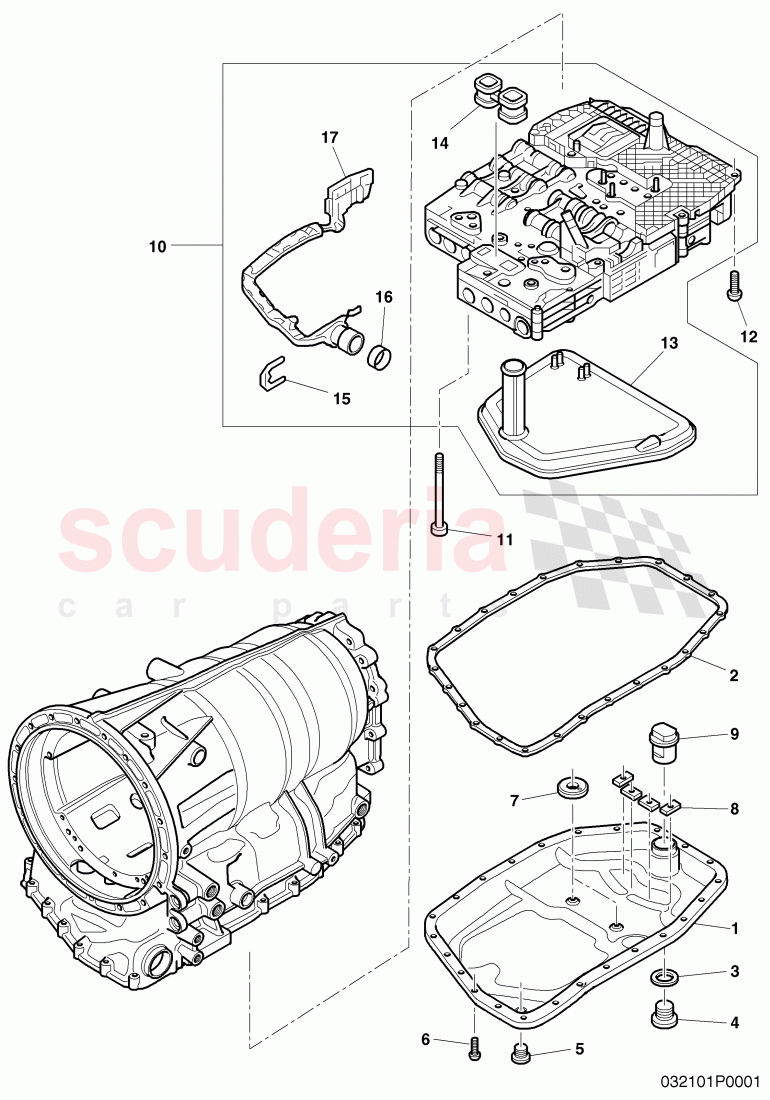

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9E321359	transmission oil sump	Enquire

Photo	Part No	Description	Price (each)	Stock
	9E321371	gasket for oil sump	Enquire

Photo	Part No	Description	Price (each)	Stock
	1V321379	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	1V321376	threaded plug, connector	Enquire

Photo	Part No	Description	Price (each)	Stock
	18321377B	seal bolt with sealing ring connector	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000747	socket head bolt with hexagon socket head (combination) D - 01.05.2007>>	Enquire
	WHT000747	socket head bolt with hexagon socket head (combination) D - 01.05.2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	9E321367	magnet	Enquire

Photo	Part No	Description	Price (each)	Stock
	18321367	magnet	Enquire

Photo	Part No	Description	Price (each)	Stock
	1V321432	protective cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire
	9E927760AB	electronic control module, D - 04.09.2006>> - 20.08.2007	Enquire

Photo	Part No	Description	Price (each)	Stock
	18325061B	socket head bolt with inner multipoint head (kombi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000488	hexagonal socket head, screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	9E325429	oil strainer	Enquire

Photo	Part No	Description	Price (each)	Stock
	9E325443A	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	1V971848	retaining clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	1V927322A	o-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	9E927363A	wiring set for 6-speed automatic gearbox D - 01.07.2007>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9E321359	transmission oil sump	9E321359 transmission oil sump 24 holes,	-	1	Enquire
2	9E321371	gasket for oil sump	9E321371 gasket for oil sump 24 holes,	-	1	Enquire
3	1V321379	seal ring	1V321379 seal ring	-	1	Enquire
4	1V321376	threaded plug, connector	1V321376 threaded plug, connector M30X1,5,	-	1	Enquire
5	18321377B	seal bolt with sealing ring connector	18321377B seal bolt with sealing ring connector	-	1	Enquire
6	WHT000747	socket head bolt with hexagon socket head (combination) D - 01.05.2007>>	WHT000747 socket head bolt with hexagon socket head (combination) D - 01.05.2007>> M6X20,	-	24	Enquire
6	WHT000747	socket head bolt with hexagon socket head (combination) D - 01.05.2007>>	WHT000747 socket head bolt with hexagon socket head (combination) D - 01.05.2007>> M6X23,	-	24	Enquire
7	9E321367	magnet	9E321367 magnet	-	2	Enquire
8	18321367	magnet	18321367 magnet	-	4	Enquire
9	1V321432	protective cap	1V321432 protective cap	-	1	Enquire
10	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009	-	1	Enquire
10	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009	-	1	Enquire
10	9E927760AB	electronic control module, D - 04.09.2006>> - 20.08.2007	9E927760AB electronic control module, D - 04.09.2006>> - 20.08.2007	-	1	Enquire
11	18325061B	socket head bolt with inner multipoint head (kombi)	18325061B socket head bolt with inner multipoint head (kombi) M6X60,	-	7	Enquire
12	WHT000488	hexagonal socket head, screw	WHT000488 hexagonal socket head, screw M6,	-	4	Enquire
13	9E325429	oil strainer	9E325429 oil strainer	-	1	Enquire
14	9E325443A	gasket	9E325443A gasket	-	1	Enquire
15	1V971848	retaining clip	1V971848 retaining clip	-	1	Enquire
16	1V927322A	o-ring	1V927322A o-ring	-	2	Enquire
17	9E927363A	wiring set for 6-speed automatic gearbox D - 01.07.2007>>	9E927363A wiring set for 6-speed automatic gearbox D - 01.07.2007>>	-	1	Enquire
