fuel delivery unit with separately supported fuel, gauge sender, suction jet pump with hose, D - MJ 2011>> - MJ 2011 of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - fuel delivery unit with separately supported fuel, gauge sender, suction jet pump with hose, D - MJ...

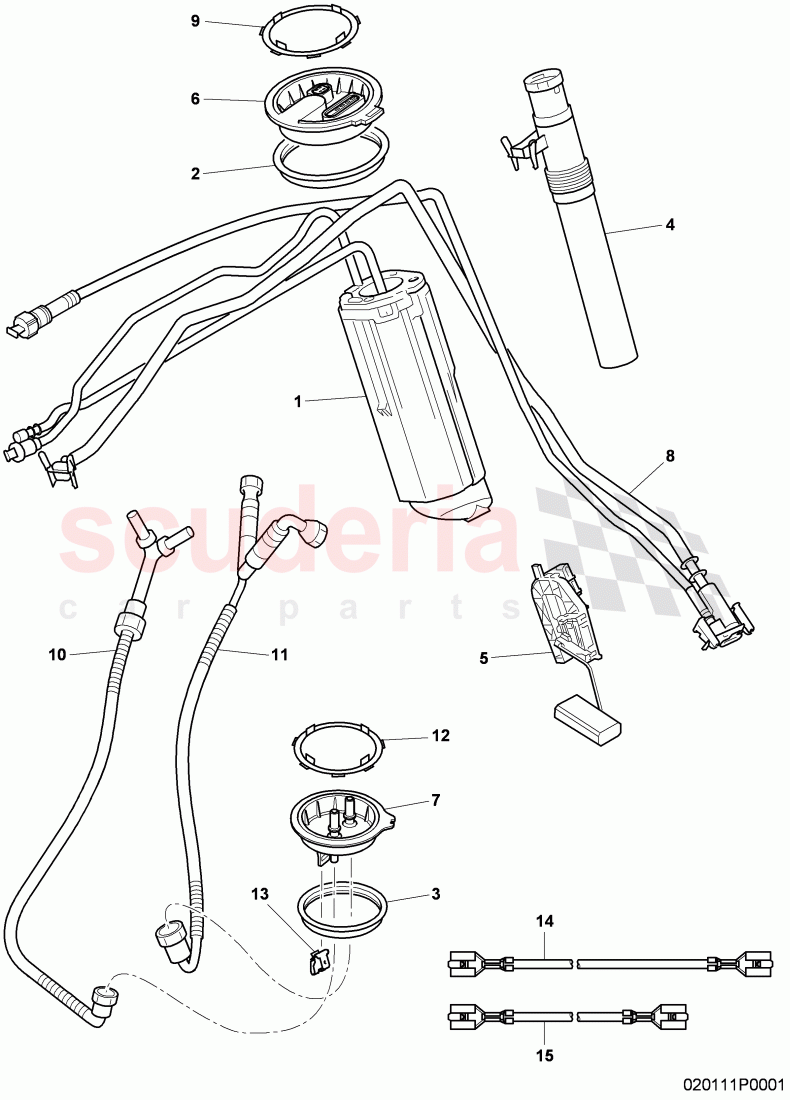

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W8919087H	fuel supply module, D - 12.09.2014>>	Enquire
	3W8919087G	fuel supply module, D - 12.09.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	1J0919133B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0919133E	seal ring, F 3W-7-041 500>>, F ZA-A-062 464>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8919673	sender for fuel gauge .	Enquire
	3W8919673A	sender for fuel gauge .	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0919673F	sender for fuel gauge .	Enquire
	3D0919673G	sender for fuel gauge .	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8919679	flange, fuel line	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8919679B	flange, fuel line	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8919715C	suction pump, D - 12.09.2014>>	Enquire
	3W8919715C	suction pump, D - 12.09.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	1K0201375	Union nut Bayonet catch	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8201294C	fuel line, D - 01.10.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8201293A	fuel line	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000506	union nut, D - 11.04.2005>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8201398A	retaining clip, clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8201142A	earthing strap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8201142B	earthing strap	Enquire

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W8919087H	fuel supply module, D - 12.09.2014>>	3W8919087H fuel supply module, D - 12.09.2014>> left, Flex Fuel, PR-1A4	-	1	Enquire
1	3W8919087G	fuel supply module, D - 12.09.2014>>	3W8919087G fuel supply module, D - 12.09.2014>> right, Flex Fuel, PR-1A4	-	1	Enquire
2	1J0919133B	seal ring	1J0919133B seal ring	-	2	Enquire
3	3D0919133E	seal ring, F 3W-7-041 500>>, F ZA-A-062 464>>	3D0919133E seal ring, F 3W-7-041 500>>, F ZA-A-062 464>>	-	1	Enquire
4	3W8919673	sender for fuel gauge .	3W8919673 sender for fuel gauge . left upper,	-	1	Enquire
4	3W8919673A	sender for fuel gauge .	3W8919673A sender for fuel gauge . right upper,	-	1	Enquire
5	3D0919673F	sender for fuel gauge .	3D0919673F sender for fuel gauge . left lower,	-	1	Enquire
5	3D0919673G	sender for fuel gauge .	3D0919673G sender for fuel gauge . right lower,	-	1	Enquire
6	3W8919679	flange, fuel line	3W8919679 flange, fuel line upper, supply/return,	-	2	Enquire
7	3W8919679B	flange, fuel line	3W8919679B flange, fuel line lower,	-	1	Enquire
8	3W8919715C	suction pump, D - 12.09.2014>>	3W8919715C suction pump, D - 12.09.2014>> left,	-	1	Enquire
8	3W8919715C	suction pump, D - 12.09.2014>>	3W8919715C suction pump, D - 12.09.2014>> right,	-	1	Enquire
9	1K0201375	Union nut Bayonet catch	1K0201375 Union nut Bayonet catch	-	2	Enquire
10	3W8201294C	fuel line, D - 01.10.2012>>	3W8201294C fuel line, D - 01.10.2012>>	-	1	Enquire
11	3W8201293A	fuel line	3W8201293A fuel line	-	1	Enquire
12	WHT000506	union nut, D - 11.04.2005>>	WHT000506 union nut, D - 11.04.2005>>	-	1	Enquire
13	3W8201398A	retaining clip, clamp	3W8201398A retaining clip, clamp	-	6	Enquire
14	3W8201142A	earthing strap	3W8201142A earthing strap	-	2	Enquire
15	3W8201142B	earthing strap	3W8201142B earthing strap	-	1	Enquire
