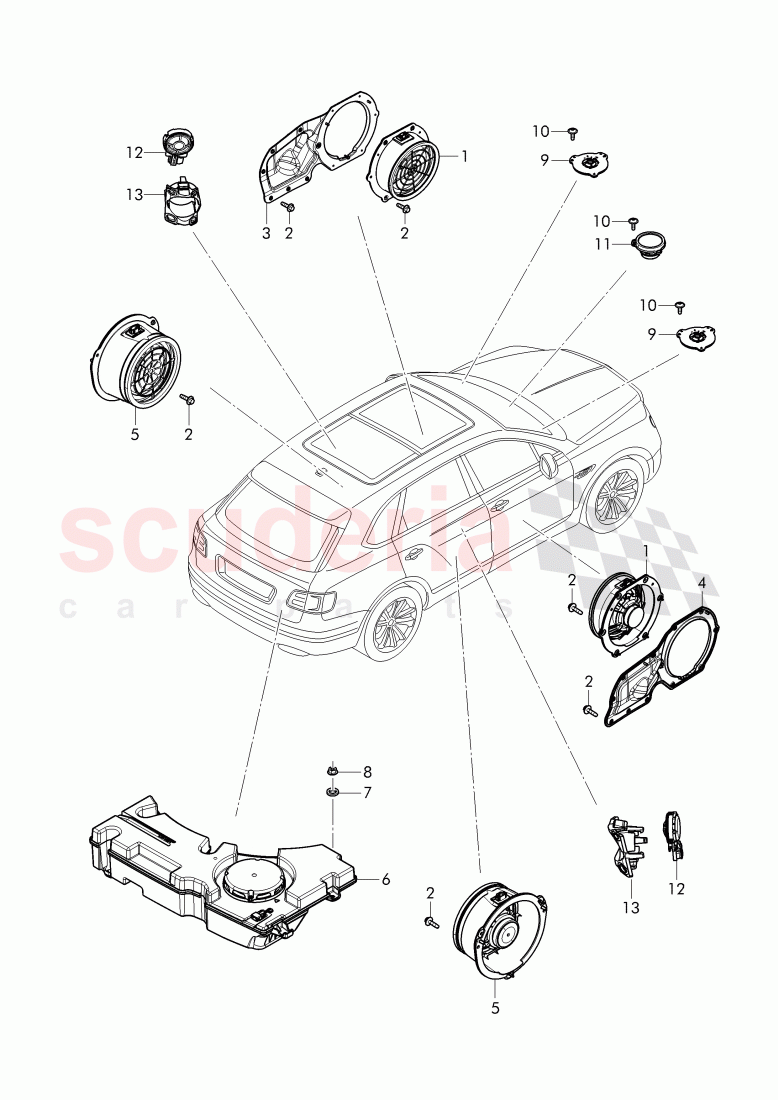

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0035415	Woofer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91180901	Flat head multi-point socket bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0837103C	cover, D - 29.02.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0837104C	cover, D - 29.02.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0035411	Woofer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT004040	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91173301	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A035209	loudspeaker tweeter	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90918701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A035416A	Treble speaker	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0035399A	loudspeaker tweeter	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0035415	Woofer	4M0035415 Woofer front,	-	2	Enquire
2	N91180901	Flat head multi-point socket bolt	N91180901 Flat head multi-point socket bolt	-	-	Enquire
3	4M0837103C	cover, D - 29.02.2016>>	4M0837103C cover, D - 29.02.2016>> left,	-	1	Enquire
4	4M0837104C	cover, D - 29.02.2016>>	4M0837104C cover, D - 29.02.2016>> right,	-	1	Enquire
5	4M0035411	Woofer	4M0035411 Woofer rear,	-	2	Enquire
6	4M0035621	Subwoofer, D >> - MJ 2017	4M0035621 Subwoofer, D >> - MJ 2017	-	1	Enquire
6	4M0035621	Subwoofer, D >> - MJ 2017	4M0035621 Subwoofer, D >> - MJ 2017 PR-3NL,3NQ	-	1	Enquire
6	4M0035621F	Subwoofer, D - MJ 2018>>	4M0035621F Subwoofer, D - MJ 2018>> PR-5KL	-	1	Enquire
7	WHT004040	washer	WHT004040 washer 7MM X 16MM,	-	1	Enquire
8	N91173301	hex. nut with washer	N91173301 hex. nut with washer M6,	-	5	Enquire
9	36A035209	loudspeaker tweeter	36A035209 loudspeaker tweeter left a. right,	-	2	Enquire
10	N90918701	Hexagon socket head panel bolt	N90918701 Hexagon socket head panel bolt TP4X12,	-	9	Enquire
11	36A035416A	Treble speaker	36A035416A Treble speaker center,	-	1	Enquire
12	4M0035399A	loudspeaker tweeter	4M0035399A loudspeaker tweeter B-pillar,	-	2	Enquire
