disc brake, brake disc (ventilated), splash shield for brake disc of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - disc brake, brake disc (ventilated), splash shield for brake disc

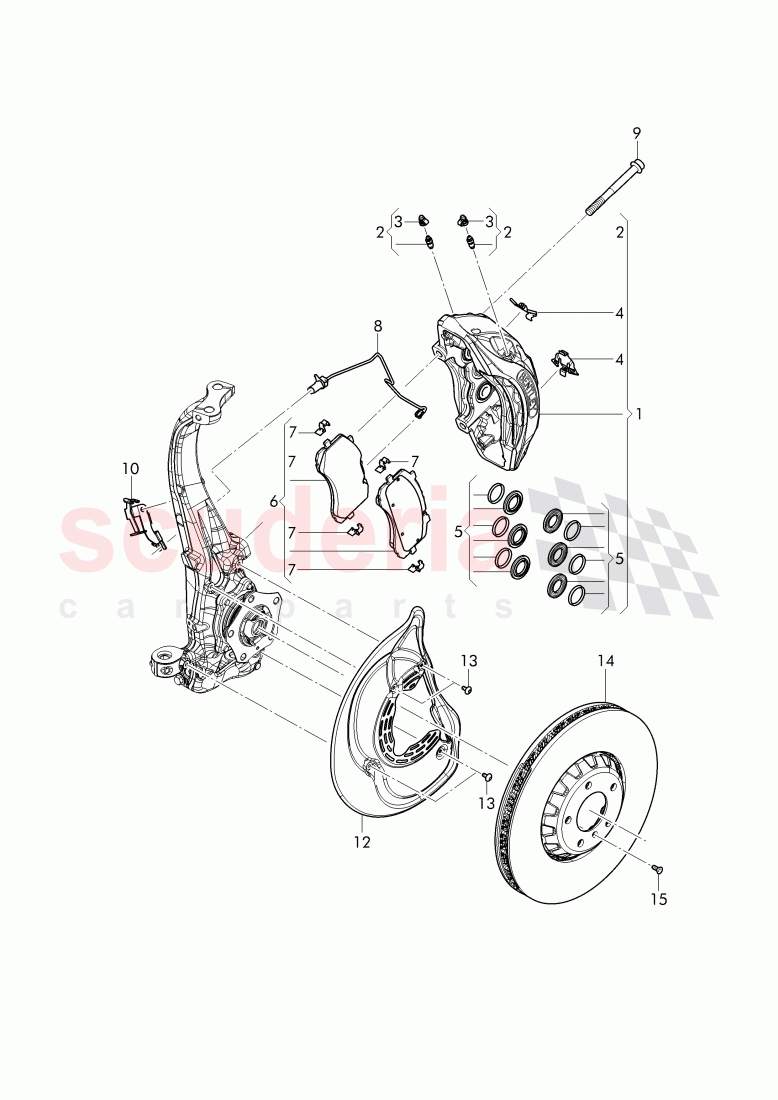

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0615107AQ	CALIPER WITHOUT BRAKE PAD	Enquire
	4M0615108AQ	CALIPER WITHOUT BRAKE PAD	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0615273A	Breather valve Contains: Bleed valve dust cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0611483	dust cap D >> - 05.04.2022	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0615269B	speader spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0615507B	set of seals for, piston housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0698151BN	Brake Pads Set	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0615231B	intermediate plate, disc brake	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0615121AB	sender wire, (pad wear indicator)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT004572	Socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	36A615311A	splash shield for brake disc	Enquire
	36A615312A	splash shield for brake disc	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10741402	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0615301AR	brake disc, D - 31.10.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10648301	hex socket countersunk bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0615107AQ	CALIPER WITHOUT BRAKE PAD	4M0615107AQ CALIPER WITHOUT BRAKE PAD left, black, PR-1LH	-	1	Enquire
1	4M0615108AQ	CALIPER WITHOUT BRAKE PAD	4M0615108AQ CALIPER WITHOUT BRAKE PAD right, black, PR-1LH	-	1	Enquire
2	4M0615273A	Breather valve Contains: Bleed valve dust cap	4M0615273A Breather valve Contains: Bleed valve dust cap	-	4	Enquire
3	4M0611483	dust cap D >> - 05.04.2022	4M0611483 dust cap D >> - 05.04.2022	-	4	Enquire
4	4M0615269B	speader spring	4M0615269B speader spring	-	2	Enquire
5	4M0615507B	set of seals for, piston housing	4M0615507B set of seals for, piston housing front,	-	2	Enquire
6	4M0698151BN	Brake Pads Set	4M0698151BN Brake Pads Set	-	1	Enquire
7	4M0615231B	intermediate plate, disc brake	4M0615231B intermediate plate, disc brake front,	-	8	Enquire
8	4M0615121AB	sender wire, (pad wear indicator)	4M0615121AB sender wire, (pad wear indicator) front,	-	2	Enquire
9	WHT004572	Socket head bolt with inner multipoint head	WHT004572 Socket head bolt with inner multipoint head M14X1,5X135,	-	4	Enquire
12	36A615311A	splash shield for brake disc	36A615311A splash shield for brake disc left outer,	-	1	Enquire
12	36A615312A	splash shield for brake disc	36A615312A splash shield for brake disc right outer,	-	1	Enquire
13	N10741402	Hexagon socket flat head bolt	N10741402 Hexagon socket flat head bolt M6X14,	-	8	Enquire
14	4M0615301AR	brake disc, D - 31.10.2016>>	4M0615301AR brake disc, D - 31.10.2016>> cast iron, left a. right, 400X38,	-	2	Enquire
15	N10648301	hex socket countersunk bolt	N10648301 hex socket countersunk bolt M6X16,	-	2	Enquire
