control arm, wishbone link, wheel bearing housing, Suspension fork of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - control arm, wishbone link, wheel bearing housing, Suspension fork

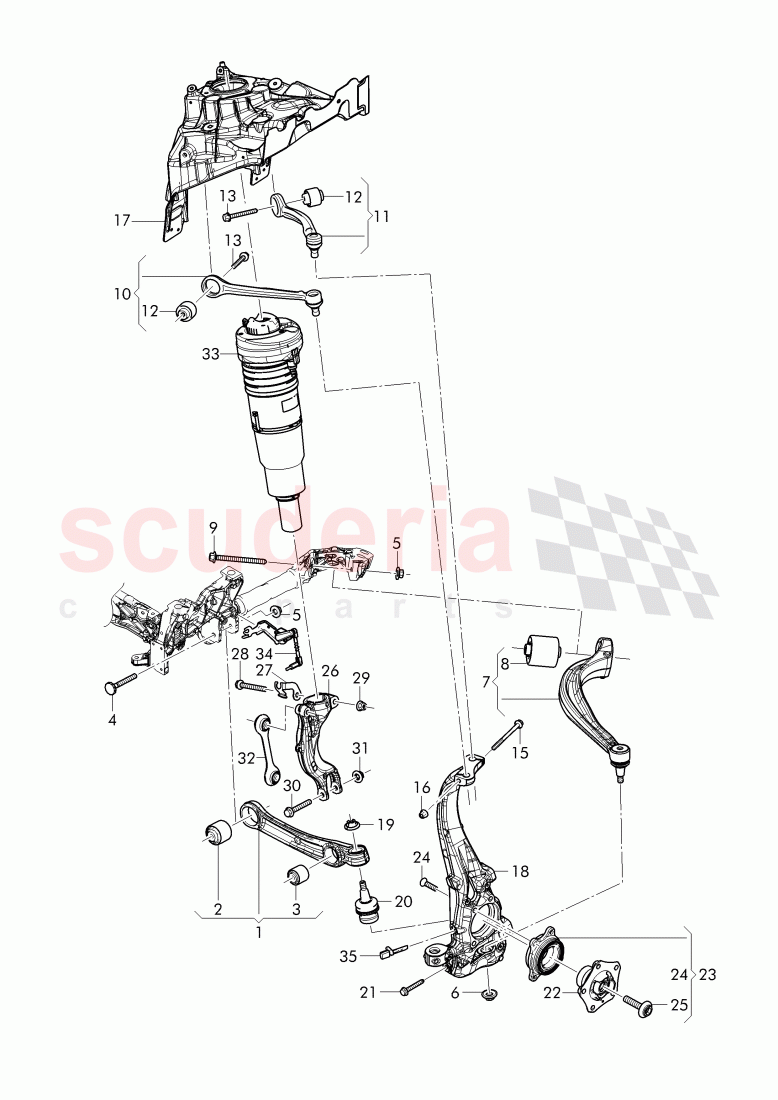

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	36A407151D	control arm, only to be used with:, D - 04.12.2017>>	Enquire
	36A407151D	control arm, only to be used with:, D - 04.12.2017>>	Enquire
	36A407152D	control arm, only to be used with:, D - 04.12.2017>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4M0407182	bonded rubber mounting, for use with:, Note, technical product information:, F >> 4V-H-014 046, F >> ZV-H-014 046	Enquire
	4M0407182A	bonded rubber mounting, for use with:, F 4V-H-014 047>>, F ZV-H-014 047>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0407181B	bonded rubber mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007028	12 point socket head screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001987	hex. nut, self-locking with, washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT006151	shouldered hex. nut,, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0407693F	wishbone link, D - 10.06.2016>>	Enquire
	4M0407694F	wishbone link, D - 10.06.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0407183B	hydro-mounting, D - 10.06.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10817601	Hexagon flange screw, (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0407505G	GUIDE	Enquire
	4M0407506G	GUIDE	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0407509C	upper link	Enquire
	4M0407510G	GUIDE	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0407515A	bonded rubber mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91221601	Hexagon flange screw, (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT006542	Hexagon flange screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10272302	Hexagon collar nut self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0407253L	wheel bearing housing	Enquire
	4M0407254L	wheel bearing housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT006151	shouldered hex. nut,, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0407689C	Swivel joint, control arm, only to be used with:, D - 26.08.2016>>	Enquire
	4M0407689C	Swivel joint, control arm, only to be used with:, D - 26.08.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10241507	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0407613	wheel hub, D - 27.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0498625G	wheel bearing with mounting, parts, D - 01.08.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT006966	Screw with int. serrations	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0407643A	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0413037J	Suspension fork, D - 02.05.2016>>	Enquire
	4M0413037J	Suspension fork, D - 02.05.2016>>	Enquire
	4M0413038J	Suspension fork, D - 02.05.2016>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10272202	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10784702	Hexagon flange screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001987	hex. nut, self-locking with, washer	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	36A407151D	control arm, only to be used with:, D - 04.12.2017>>	36A407151D control arm, only to be used with:, D - 04.12.2017>> left front, 36A 407 152 A, 2045979/_,	-	1	Enquire
1	36A407151D	control arm, only to be used with:, D - 04.12.2017>>	36A407151D control arm, only to be used with:, D - 04.12.2017>> left front, 36A 407 152 B, 36A 407 152 C,	-	1	Enquire
1	36A407152D	control arm, only to be used with:, D - 04.12.2017>>	36A407152D control arm, only to be used with:, D - 04.12.2017>> right front, 36A 407 151 A, 2045979/_,	-	1	Enquire
1	36A407152D	control arm, only to be used with:, D - 04.12.2017>>	36A407152D control arm, only to be used with:, D - 04.12.2017>> right front, 36A 407 151 B, 36A 407 151 C,	-	1	Enquire
2	4M0407182	bonded rubber mounting, for use with:, Note, technical product information:, F >> 4V-H-014 046, F >> ZV-H-014 046	4M0407182 bonded rubber mounting, for use with:, Note, technical product information:, F >> 4V-H-014 046, F >> ZV-H-014 046 front, inner, 36A 407 151 A, 36A 407 152 A, 2045979/_,	-	2	Enquire
2	4M0407182A	bonded rubber mounting, for use with:, F 4V-H-014 047>>, F ZV-H-014 047>>	4M0407182A bonded rubber mounting, for use with:, F 4V-H-014 047>>, F ZV-H-014 047>> front, inner, 36A 407 151 B, 36A 407 151 C, 36A 407 152 B, 36A 407 152 C,	-	2	Enquire
3	4E0407181B	bonded rubber mounting	4E0407181B bonded rubber mounting front, outer,	-	2	Enquire
4	WHT007028	12 point socket head screw	WHT007028 12 point socket head screw M12X1,5X100,	-	2	Enquire
5	WHT001987	hex. nut, self-locking with, washer	WHT001987 hex. nut, self-locking with, washer M12X1,5,	-	4	Enquire
6	WHT006151	shouldered hex. nut,, self-locking	WHT006151 shouldered hex. nut,, self-locking M14X1,5,	-	2	Enquire
7	4M0407693F	wishbone link, D - 10.06.2016>>	4M0407693F wishbone link, D - 10.06.2016>> left rear,	-	1	Enquire
7	4M0407694F	wishbone link, D - 10.06.2016>>	4M0407694F wishbone link, D - 10.06.2016>> right rear,	-	1	Enquire
8	4M0407183B	hydro-mounting, D - 10.06.2016>>	4M0407183B hydro-mounting, D - 10.06.2016>> rear, inner,	-	2	Enquire
9	N10817601	Hexagon flange screw, (combi)	N10817601 Hexagon flange screw, (combi) M12X1.5X140,	-	2	Enquire
10	4M0407505G	GUIDE	4M0407505G GUIDE left front, upper,	-	1	Enquire
10	4M0407506G	GUIDE	4M0407506G GUIDE right front, upper,	-	1	Enquire
11	4M0407509C	upper link	4M0407509C upper link left rear, upper,	-	1	Enquire
11	4M0407510G	GUIDE	4M0407510G GUIDE right rear, upper,	-	1	Enquire
12	4M0407515A	bonded rubber mounting	4M0407515A bonded rubber mounting inner upper,	-	4	Enquire
13	N91221601	Hexagon flange screw, (combi)	N91221601 Hexagon flange screw, (combi) M10X85,	-	4	Enquire
15	WHT006542	Hexagon flange screw	WHT006542 Hexagon flange screw M10X130,	-	2	Enquire
16	N10272302	Hexagon collar nut self-locking	N10272302 Hexagon collar nut self-locking M10,	-	2	Enquire
18	4M0407253L	wheel bearing housing	4M0407253L wheel bearing housing left,	-	1	Enquire
18	4M0407254L	wheel bearing housing	4M0407254L wheel bearing housing right,	-	1	Enquire
19	WHT006151	shouldered hex. nut,, self-locking	WHT006151 shouldered hex. nut,, self-locking M14X1,5,	-	2	Enquire
20	4M0407689C	Swivel joint, control arm, only to be used with:, D - 26.08.2016>>	4M0407689C Swivel joint, control arm, only to be used with:, D - 26.08.2016>> left a. right, 4M0 407 689 B,	-	2	Enquire
20	4M0407689C	Swivel joint, control arm, only to be used with:, D - 26.08.2016>>	4M0407689C Swivel joint, control arm, only to be used with:, D - 26.08.2016>> left a. right, 4M0 407 689 C,	-	2	Enquire
21	N10241507	bolt, hex. hd. with shoulder	N10241507 bolt, hex. hd. with shoulder M10X70,	-	2	Enquire
22	4M0407613	wheel hub, D - 27.03.2017>>	4M0407613 wheel hub, D - 27.03.2017>>	-	2	Enquire
23	4M0498625G	wheel bearing with mounting, parts, D - 01.08.2016>>	4M0498625G wheel bearing with mounting, parts, D - 01.08.2016>>	-	2	Enquire
24	WHT006966	Screw with int. serrations	WHT006966 Screw with int. serrations M12X1,25X42,	-	8	Enquire
25	8E0407643A	socket head bolt with inner multipoint head	8E0407643A socket head bolt with inner multipoint head M16X1,5X72,	-	2	Enquire
26	4M0413037J	Suspension fork, D - 02.05.2016>>	4M0413037J Suspension fork, D - 02.05.2016>> left, PR-1P0	-	1	Enquire
26	4M0413037J	Suspension fork, D - 02.05.2016>>	4M0413037J Suspension fork, D - 02.05.2016>> left, PR-1P7	-	1	Enquire
26	4M0413038J	Suspension fork, D - 02.05.2016>>	4M0413038J Suspension fork, D - 02.05.2016>> right, PR-1P0	-	1	Enquire
26	4M0413038J	Suspension fork, D - 02.05.2016>>	4M0413038J Suspension fork, D - 02.05.2016>> right, PR-1P7	-	1	Enquire
28	N10272202	hexagon head bolt (combi)	N10272202 hexagon head bolt (combi) M12X1,5X95,	-	2	Enquire
29	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	N10106402 shouldered hex. nut,, self-locking, D >> - 12.06.2017 M12X1,5,	-	2	Enquire
30	N10784702	Hexagon flange screw	N10784702 Hexagon flange screw M12X1.5X85,	-	2	Enquire
31	WHT001987	hex. nut, self-locking with, washer	WHT001987 hex. nut, self-locking with, washer M12X1,5,	-	2	Enquire
