Transaxle Cooling Pipes (Auto) of Aston Martin Aston Martin Virage

View All

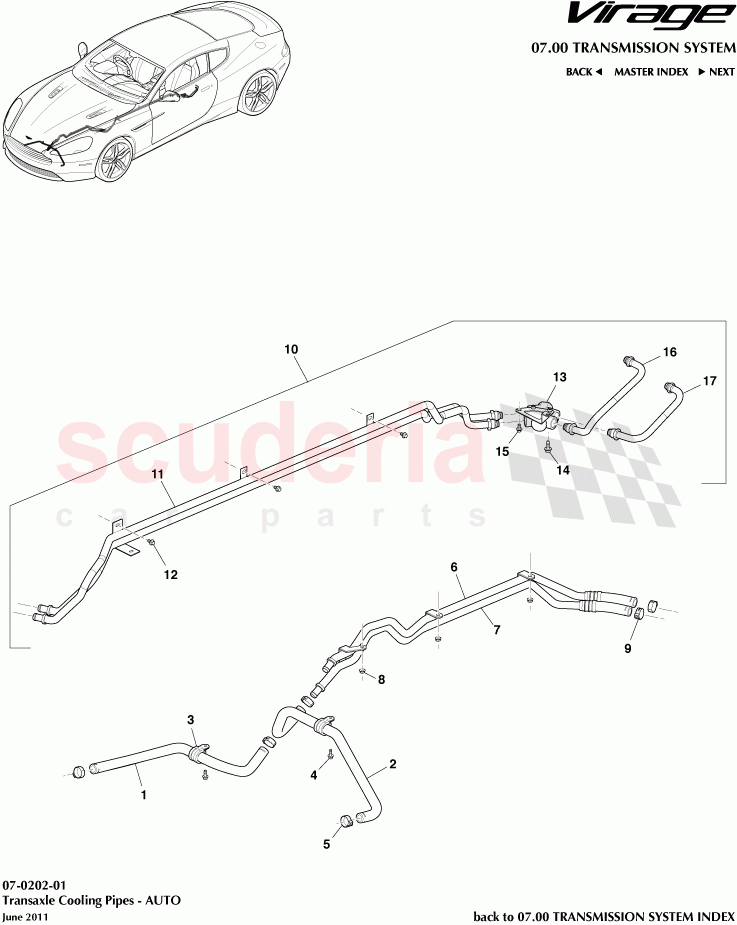

Aston Martin Virage - Transaxle Cooling Pipes (Auto)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9D337F120BB	Hose, Transmission Oil Cooler Inlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D337F120AB	Hose, Transmission Oil Cooler Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200020135PK	Screw, M6 x 16, Flange Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G437W093AA	PIPE ASSEMBLY ENGINE BAY INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G437W093BA	PIPE ASSEMBLY ENGINE BAY OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43321363AA	OIL PIPE ASSEMBLY REAR TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G437D353AA	Tube & Bracket Assembly, Transmission Oil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436L635AA	Thermostat, Transmission Oil Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702298	BOLT M8x16 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4335568BA	Pipe, Transmission Oil Inlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4335568AA	Pipe, Transmission Oil Outlet	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9D337F120BB	Hose, Transmission Oil Cooler Inlet	9D337F120BB Hose, Transmission Oil Cooler Inlet incl. P clips	-	1	Enquire
2	9D337F120AB	Hose, Transmission Oil Cooler Outlet	9D337F120AB Hose, Transmission Oil Cooler Outlet incl. P clips	-	1	Enquire
4	200020135PK	Screw, M6 x 16, Flange Hex Head	200020135PK Screw, M6 x 16, Flange Hex Head	-	2	Enquire
5	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	9G438777CA CLAMP HOSE OETIKER 025.5-1008R	-	4	Enquire
6	9G437W093AA	PIPE ASSEMBLY ENGINE BAY INLET	9G437W093AA PIPE ASSEMBLY ENGINE BAY INLET	-	1	Enquire
7	9G437W093BA	PIPE ASSEMBLY ENGINE BAY OUTLET	9G437W093BA PIPE ASSEMBLY ENGINE BAY OUTLET	-	1	Enquire
8	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	3	Enquire
9	9G438777CA	CLAMP HOSE OETIKER 025.5-1008R	9G438777CA CLAMP HOSE OETIKER 025.5-1008R	-	2	Enquire
10	9G43321363AA	OIL PIPE ASSEMBLY REAR TRANSMISSION	9G43321363AA OIL PIPE ASSEMBLY REAR TRANSMISSION	-	1	Enquire
11	9G437D353AA	Tube & Bracket Assembly, Transmission Oil	9G437D353AA Tube & Bracket Assembly, Transmission Oil	-	1	Enquire
12	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	3	Enquire
13	4G436L635AA	Thermostat, Transmission Oil Control	4G436L635AA Thermostat, Transmission Oil Control	-	1	Enquire
14	702298	BOLT M8x16 HEX FLG	702298 BOLT M8x16 HEX FLG	-	1	Enquire
15	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	1	Enquire
16	4G4335568BA	Pipe, Transmission Oil Inlet	4G4335568BA Pipe, Transmission Oil Inlet	-	1	Enquire
17	4G4335568AA	Pipe, Transmission Oil Outlet	4G4335568AA Pipe, Transmission Oil Outlet	-	1	Enquire
