Rear Brakes Sub System of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Rear Brakes Sub System

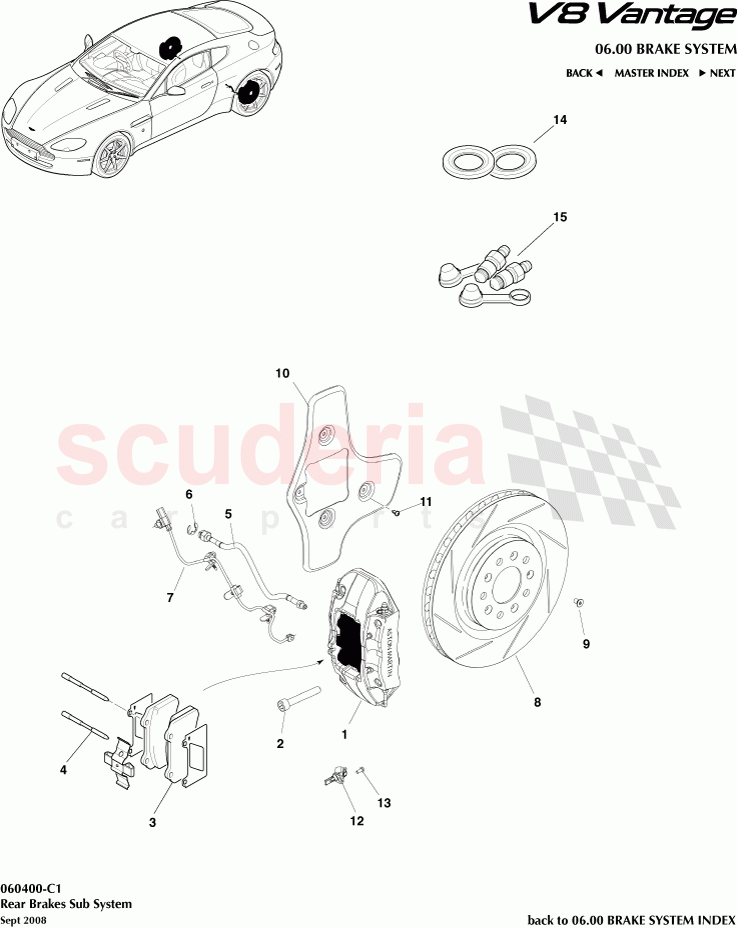

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7G432C465EA	CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS	Enquire	To Order
	7G432C465FA	CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS	Enquire	To Order
	7G432C464EA	CALIPER ASSY SILVER - REAR WHEEL BRAKE RH - NOT INC PADS	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G432C564AB	Bolt M12 x 1.5 x 80 Brk CLPR to KNL	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	7G432C562AA	Rear Brake Pad Kit	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	AD432C588AA	FRT SPRING & PIN PAD KIT	Enquire	To Order
	4G432C588BA	Pins and Spring Kit Rear Caliper	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	6G332282AC	Hose, Rear Wheel Brake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33JYC10088AB	E Clip Bowed, Nom 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332D009AB	Pad Wear Lead, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432810266	Rear Brake Disc	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332C029AA	SHIELD - REAR BRAKE DISC LH	Enquire	To Order
	8D332C028AA	SHIELD - REAR BRAKE DISC RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026AA	Screw, retaining disc shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439010039	Sensor, Wheel Speed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026BA	Screw, wheel speed sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4332610AA	Kit, Dust Boot, Rear Caliper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C563AA	Kit, Bleed Screw	Enquire	To Order
	4G4333693AA	Cap, Bleed Screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7G432C465EA	CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS	7G432C465EA CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS	-	1	Enquire
1	7G432C465FA	CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS	7G432C465FA CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS	-	1	Enquire
1	7G432C464EA	CALIPER ASSY SILVER - REAR WHEEL BRAKE RH - NOT INC PADS	7G432C464EA CALIPER ASSY SILVER - REAR WHEEL BRAKE RH - NOT INC PADS	-	1	Enquire
1	7G432C464FA	CALIPER ASSY YELLOW REAR WHEEL BRAKE RH NOT INC PADS	7G432C464FA CALIPER ASSY YELLOW REAR WHEEL BRAKE RH NOT INC PADS	-	1	Enquire
1	7G432C465CA	CALIPER ASSY BLACK - REAR WHEEL BRAKE LH NOT INC PADS	7G432C465CA CALIPER ASSY BLACK - REAR WHEEL BRAKE LH NOT INC PADS	-	1	Enquire
1	7G432C464CA	CALIPER ASSY BLACK - REAR WHEEL BRAKE RH NOT INC PADS	7G432C464CA CALIPER ASSY BLACK - REAR WHEEL BRAKE RH NOT INC PADS	-	1	Enquire
1	7G432C465AA	CALIPER ASSY GREY - REAR WHEEL BRAKE LH NOT INC PADS	7G432C465AA CALIPER ASSY GREY - REAR WHEEL BRAKE LH NOT INC PADS	-	1	Enquire
1	7G432C464AA	CALIPER ASSY GREY - REAR WHEEL BRAKE RH - NOT INC PADS	7G432C464AA CALIPER ASSY GREY - REAR WHEEL BRAKE RH - NOT INC PADS	-	1	Enquire
1	7G432C465DA	CALIPER ASSY RED - REAR WHEEL BRAKE LH - NOT INC PADS	7G432C465DA CALIPER ASSY RED - REAR WHEEL BRAKE LH - NOT INC PADS	-	1	Enquire
1	7G432C464DA	CALIPER ASSY RED - REAR WHEEL BRAKE RH NOT INC PADS	7G432C464DA CALIPER ASSY RED - REAR WHEEL BRAKE RH NOT INC PADS	-	1	Enquire
2	4G432C564AB	Bolt M12 x 1.5 x 80 Brk CLPR to KNL ARRIVING SOON	4G432C564AB Bolt M12 x 1.5 x 80 Brk CLPR to KNL ARRIVING SOON	-	4	Enquire
3	7G432C562AA	Rear Brake Pad Kit ARRIVING SOON	7G432C562AA Rear Brake Pad Kit ARRIVING SOON	-	1	Enquire
4	AD432C588AA	FRT SPRING & PIN PAD KIT	AD432C588AA FRT SPRING & PIN PAD KIT Per caliper, V8S/ 12.25MY	-	1	Enquire
4	4G432C588BA	Pins and Spring Kit Rear Caliper ARRIVING SOON	4G432C588BA Pins and Spring Kit Rear Caliper Per caliper ARRIVING SOON	-	1	Enquire
5	6G332282AC	Hose, Rear Wheel Brake	6G332282AC Hose, Rear Wheel Brake	-	2	Enquire
6	6G33JYC10088AB	E Clip Bowed, Nom 16mm	6G33JYC10088AB E Clip Bowed, Nom 16mm	-	2	Enquire
7	6G332D009AB	Pad Wear Lead, Rear	6G332D009AB Pad Wear Lead, Rear	-	2	Enquire
8	4G432810266	Rear Brake Disc ARRIVING SOON	4G432810266 Rear Brake Disc ARRIVING SOON	-	2	Enquire
9	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk	-	4	Enquire
10	8D332C029AA	SHIELD - REAR BRAKE DISC LH	8D332C029AA SHIELD - REAR BRAKE DISC LH	-	1	Enquire
10	8D332C028AA	SHIELD - REAR BRAKE DISC RH	8D332C028AA SHIELD - REAR BRAKE DISC RH	-	1	Enquire
11	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield	-	10	Enquire
12	4G439010039	Sensor, Wheel Speed	4G439010039 Sensor, Wheel Speed	-	2	Enquire
13	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor	-	2	Enquire
14	4G4332610AA	Kit, Dust Boot, Rear Caliper	4G4332610AA Kit, Dust Boot, Rear Caliper Per caliper	-	1	Enquire
15	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per caliper	-	1	Enquire
15	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw	-	2	Enquire
