Name: Front Wheel and Tyre Assembly
Rating: 5.0 (1 reviews)

View All

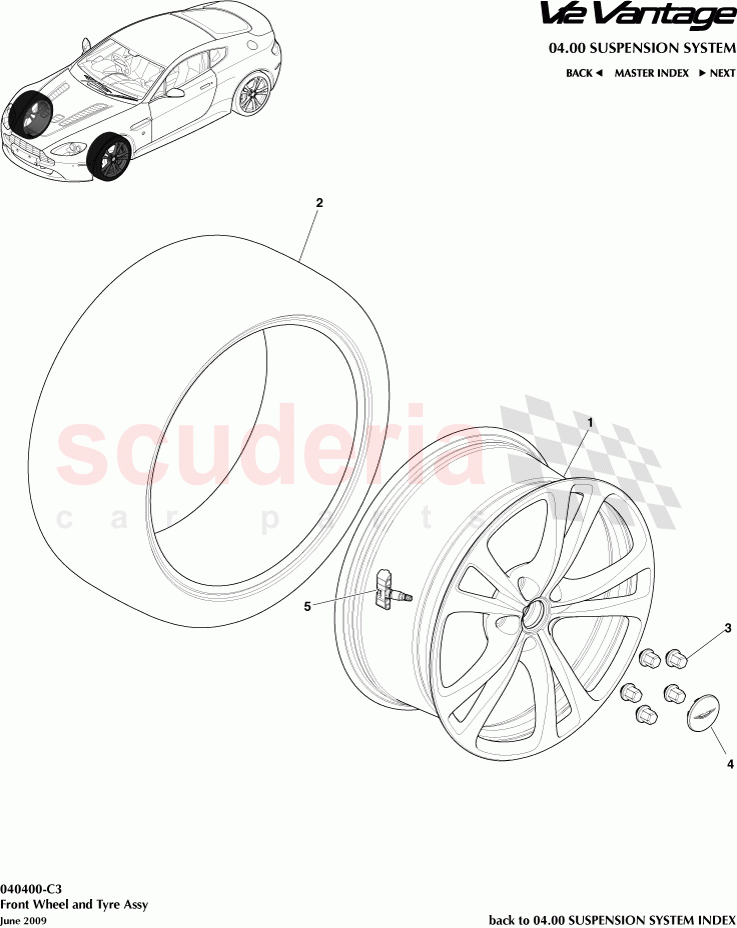

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DD231007BA	FRT WHL GL BLK DT-19	$3,601.59	To Order
	CD231007AA	FT WHL GRAPH DT-19in	$2,987.66	To Order
	AG331007GA	FRONT WHEEL-19inch GRAPHITE-WINTER	$1,916.80	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431K024BD	Nut, Wheel, M14 x 2.0	$31.54	To Order

Photo	Part No	Description	Price (each)	Stock
	HY531A096FAPK	BADGE-WHEEL CENTRE (PACK OF 4)	$110.49	To Order

Photo	Part No	Description	Price (each)	Stock
	CD23360671CA	TPMS Valve and Transmitter	$227.12	To Order
	CD23360671DA	TPMS Valve and Transmitter Assy	$217.51	To Order
	4G431040AA	Weight, counter balance	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	DD231007BA	FRT WHL GL BLK DT-19	DD231007BA FRT WHL GL BLK DT-19 Diamond turned	$3,601.59	2
1	CD231007AA	FT WHL GRAPH DT-19in	CD231007AA FT WHL GRAPH DT-19in Diamond turned	$2,987.66	2
1	AG331007GA	FRONT WHEEL-19inch GRAPHITE-WINTER	AG331007GA FRONT WHEEL-19inch GRAPHITE-WINTER	$1,916.80	2
2	AD231508AC	TYRE FT-255-35ZR19	AD231508AC TYRE FT-255-35ZR19	$677.80	2
2	9G331508CA	WINTER TYRE-FRONT 235-40x19 inch	9G331508CA WINTER TYRE-FRONT 235-40x19 inch	$619.52	2
3	4G431K024BD	Nut, Wheel, M14 x 2.0	4G431K024BD Nut, Wheel, M14 x 2.0	$31.54	10
4	HY531A096FAPK	BADGE-WHEEL CENTRE (PACK OF 4)	HY531A096FAPK BADGE-WHEEL CENTRE (PACK OF 4)	$110.49	2
5	CD23360671CA	TPMS Valve and Transmitter	CD23360671CA TPMS Valve and Transmitter 11MY 433Mhz	$227.12	1
5	CD23360671DA	TPMS Valve and Transmitter Assy	CD23360671DA TPMS Valve and Transmitter Assy 11MY 315Mhz	$217.51	1
5	4G431040AA	Weight, counter balance	4G431040AA Weight, counter balance	-	-	Enquire
5	4G43974747AA	WINTER TYRE LABEL	4G43974747AA WINTER TYRE LABEL	$19.67	1
5	CG33360671AA	TPMS Valve Service	CG33360671AA TPMS Valve Service	$378.58	2
5	1R123610555	TRANSMITTER DUST CAP SILVER	1R123610555 TRANSMITTER DUST CAP SILVER	$6.70	2
5	4G433610809	VALVE STEM CAP METAL DB9	4G433610809 VALVE STEM CAP METAL DB9	$2.00	2
5	3683832	T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	3683832 T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED	$18.61	2
