Cooler, Hoses and Reservior (RHD) of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

Aston Martin V12 Vantage (upto 2016) - Cooler, Hoses and Reservior (RHD)

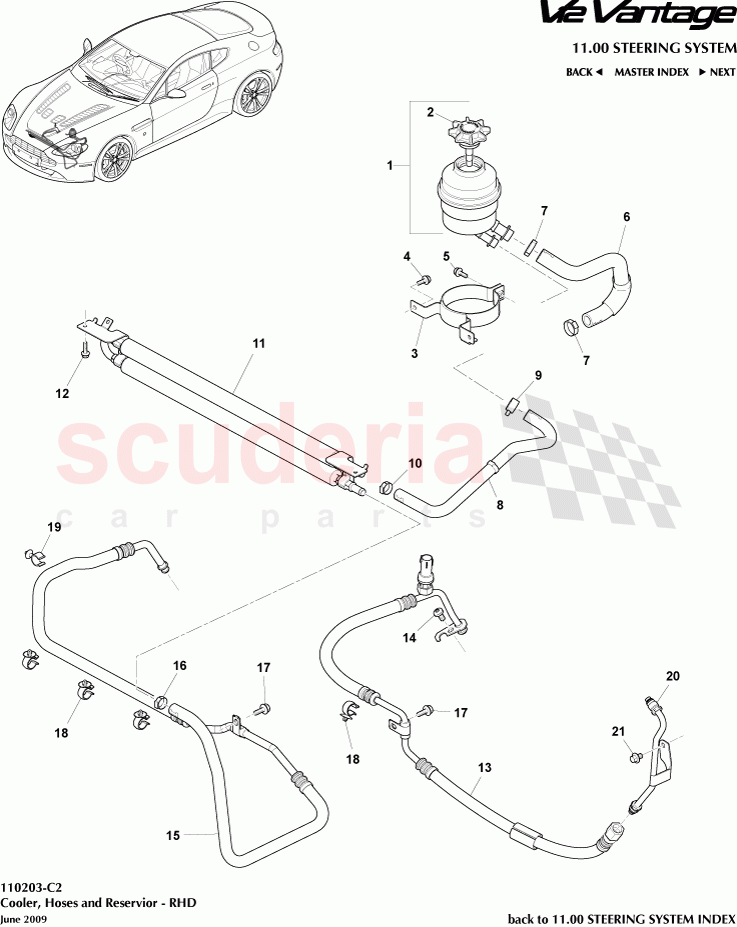

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433R700AB	Reservoir and Cap Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4334006AA	Cap assy, power steering reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233489AA	BRACKET ASSY - PAS RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233E525AB	HOSE ASSY PAS RESERVOIR TO PUMP SUCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233A713AA	PAS HOSE COOLER TO RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701349	Clamp, Hose 20 Dia	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3360155AA	CLAMP - PAS HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233D746AA	Cooler Assy, Power Steering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233A719DA	Hose Assy, PAS Pressure Line, Pump to Gear, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703141	SCREW M8 x 16 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233F558BA	Hose assy, steering gear to cooler RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3360155AA	CLAMP - PAS HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A317AA	Clip, fuel fill overflow pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436C727AA	HOSE CLIP (RAYMOND 81442)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233494AA	Tube Assy, PWR Steering Pump Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703202	Screw, M8 x 12, Flange Hd	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G433R700AB	Reservoir and Cap Assembly	4G433R700AB Reservoir and Cap Assembly	-	1	Enquire
2	4G4334006AA	Cap assy, power steering reservoir	4G4334006AA Cap assy, power steering reservoir	-	1	Enquire
3	AD233489AA	BRACKET ASSY - PAS RESERVOIR	AD233489AA BRACKET ASSY - PAS RESERVOIR	-	1	Enquire
4	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
5	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	5	Enquire
6	AD233E525AB	HOSE ASSY PAS RESERVOIR TO PUMP SUCTION	AD233E525AB HOSE ASSY PAS RESERVOIR TO PUMP SUCTION	-	1	Enquire
7	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	699545 HOSE CLAMP OETIKER REF: 025.6 - 706R	-	2	Enquire
8	AD233A713AA	PAS HOSE COOLER TO RESERVOIR	AD233A713AA PAS HOSE COOLER TO RESERVOIR	-	1	Enquire
9	701349	Clamp, Hose 20 Dia	701349 Clamp, Hose 20 Dia	-	1	Enquire
10	8D3360155AA	CLAMP - PAS HOSE	8D3360155AA CLAMP - PAS HOSE	-	2	Enquire
11	AD233D746AA	Cooler Assy, Power Steering	AD233D746AA Cooler Assy, Power Steering	-	1	Enquire
12	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
13	AD233A719DA	Hose Assy, PAS Pressure Line, Pump to Gear, RHD	AD233A719DA Hose Assy, PAS Pressure Line, Pump to Gear, RHD	-	1	Enquire
14	703141	SCREW M8 x 16 CHROME FREE	703141 SCREW M8 x 16 CHROME FREE	-	1	Enquire
15	AD233F558BA	Hose assy, steering gear to cooler RHD	AD233F558BA Hose assy, steering gear to cooler RHD	-	1	Enquire
16	8D3360155AA	CLAMP - PAS HOSE	8D3360155AA CLAMP - PAS HOSE	-	1	Enquire
17	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	2	Enquire
18	4G439A317AA	Clip, fuel fill overflow pipe	4G439A317AA Clip, fuel fill overflow pipe	-	4	Enquire
19	4G436C727AA	HOSE CLIP (RAYMOND 81442)	4G436C727AA HOSE CLIP (RAYMOND 81442)	-	1	Enquire
20	AD233494AA	Tube Assy, PWR Steering Pump Outlet	AD233494AA Tube Assy, PWR Steering Pump Outlet	-	1	Enquire
21	703202	Screw, M8 x 12, Flange Hd	703202 Screw, M8 x 12, Flange Hd	-	1	Enquire
