Automatic Transaxle of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Automatic Transaxle

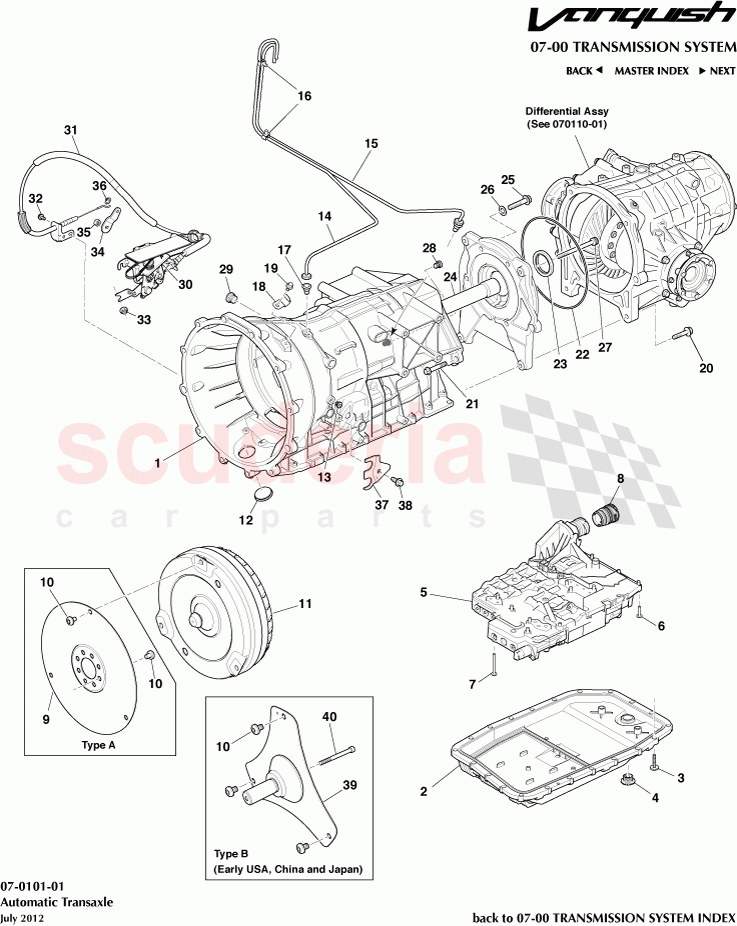

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD334210010	Housing, Gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210273	Oil Sump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210274	Screw, Torx Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210277	SCREW PLUG -OIL SUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4314C247AA	HARDWARE TRANS CONTROL MODULE (ZF 6HP26)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43807199DA	Screw, M6 x 20, Torx Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43807199CA	Screw, M6 x 59, Torx Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437F183AA	Guide Sleeve, Transmission Controller	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436K375AA	FLEX PLATE - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43HYG10549AA	SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD334210012	Torque Converter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210021	PLUG-T/CONV ACCESS TORQUE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210276	SCREW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437A245AA	TUBE ASSY - AUTO TRANSMISSION BREATHE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437A245BA	TUBE AUTOMATIC DIFFERENTIAL BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701565	CLIP 4-6 DUx6.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437179AA	Plug, Transmission Breather	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432860AB	CLIP P LOCK DISENGAGE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703183	BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703182	BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437J271AB	O Ring, Transmission Adapter Plate, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210979	Oil Seal, 60 x 44 x 7mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434211251	Shaft, Output	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210977	Screw M10x50, adaptor plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210978	Usit ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439912553AA	BOLT M8 X 80 CAP SKT HD GD 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210278	SCREW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434210279	SCREW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D337J168CB	BRKT ASSY AUTO PARK BRAKE RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D337J167CB	Cable Assy, Park Brake Release	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437A257AB	Lever Arm, Auto Transmission to Disengage P Lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703158	Nut, M8, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431861AA	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G437B147AA	Clamp, Oil Cooler Pipes	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703189	BOLT M8x16 HEX FLG CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336K375AC	Flex Plate, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439912553AA	BOLT M8 X 80 CAP SKT HD GD 10	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	91821	Transmission, Automatic	91821 Transmission, Automatic Includes Torque Converter, Item 27 Must Also be Ordered	-	1	Enquire
-	4G4319A509AAS	Fluid, Auto Transmission, 1ltr	4G4319A509AAS Fluid, Auto Transmission, 1ltr	-	A/R	Enquire
1	CD334210010	Housing, Gearbox	CD334210010 Housing, Gearbox	-	1	Enquire
2	4G434210273	Oil Sump	4G434210273 Oil Sump	-	1	Enquire
3	4G434210274	Screw, Torx Head	4G434210274 Screw, Torx Head	-	21	Enquire
4	4G434210277	SCREW PLUG -OIL SUMP	4G434210277 SCREW PLUG -OIL SUMP	-	1	Enquire
5	8G4314C247AA	HARDWARE TRANS CONTROL MODULE (ZF 6HP26)	8G4314C247AA HARDWARE TRANS CONTROL MODULE (ZF 6HP26)	-	1	Enquire
6	4G43807199DA	Screw, M6 x 20, Torx Head	4G43807199DA Screw, M6 x 20, Torx Head	-	3	Enquire
7	4G43807199CA	Screw, M6 x 59, Torx Head	4G43807199CA Screw, M6 x 59, Torx Head	-	7	Enquire
8	4G437F183AA	Guide Sleeve, Transmission Controller	4G437F183AA Guide Sleeve, Transmission Controller	-	1	Enquire
9	4G436K375AA	FLEX PLATE - REAR	4G436K375AA FLEX PLATE - REAR Type A	-	1	Enquire
10	4G43HYG10549AA	SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK	4G43HYG10549AA SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK Type A Qty 11, Type B Qty 3	-	A/R	Enquire
11	CD334210012	Torque Converter	CD334210012 Torque Converter	-	1	Enquire
12	4G434210021	PLUG-T/CONV ACCESS TORQUE TUBE	4G434210021 PLUG-T/CONV ACCESS TORQUE TUBE	-	2	Enquire
13	4G434210276	SCREW PLUG	4G434210276 SCREW PLUG	-	1	Enquire
14	4G437A245AA	TUBE ASSY - AUTO TRANSMISSION BREATHE	4G437A245AA TUBE ASSY - AUTO TRANSMISSION BREATHE	-	1	Enquire
15	4G437A245BA	TUBE AUTOMATIC DIFFERENTIAL BREATHER	4G437A245BA TUBE AUTOMATIC DIFFERENTIAL BREATHER	-	1	Enquire
16	701565	CLIP 4-6 DUx6.5	701565 CLIP 4-6 DUx6.5	-	2	Enquire
17	4G437179AA	Plug, Transmission Breather	4G437179AA Plug, Transmission Breather	-	1	Enquire
18	4G432860AB	CLIP P LOCK DISENGAGE CABLE	4G432860AB CLIP P LOCK DISENGAGE CABLE	-	1	Enquire
19	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	1	Enquire
20	703183	BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	-	4	Enquire
21	703182	BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE	703182 BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE	-	1	Enquire
22	4G437J271AB	O Ring, Transmission Adapter Plate, Rear	4G437J271AB O Ring, Transmission Adapter Plate, Rear	-	1	Enquire
23	4G434210979	Oil Seal, 60 x 44 x 7mm	4G434210979 Oil Seal, 60 x 44 x 7mm	-	1	Enquire
24	4G434211251	Shaft, Output	4G434211251 Shaft, Output	-	1	Enquire
25	4G434210977	Screw M10x50, adaptor plate	4G434210977 Screw M10x50, adaptor plate	-	5	Enquire
26	4G434210978	Usit ring	4G434210978 Usit ring	-	5	Enquire
27	4G439912553AA	BOLT M8 X 80 CAP SKT HD GD 10	4G439912553AA BOLT M8 X 80 CAP SKT HD GD 10	-	1	Enquire
28	4G434210278	SCREW PLUG	4G434210278 SCREW PLUG	-	1	Enquire
29	4G434210279	SCREW PLUG	4G434210279 SCREW PLUG	-	1	Enquire
30	9D337J168CB	BRKT ASSY AUTO PARK BRAKE RELEASE	9D337J168CB BRKT ASSY AUTO PARK BRAKE RELEASE	-	1	Enquire
31	9D337J167CB	Cable Assy, Park Brake Release	9D337J167CB Cable Assy, Park Brake Release	-	1	Enquire
32	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	2	Enquire
33	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	3	Enquire
34	4G437A257AB	Lever Arm, Auto Transmission to Disengage P Lock	4G437A257AB Lever Arm, Auto Transmission to Disengage P Lock	-	1	Enquire
35	703158	Nut, M8, Hex Flange Head	703158 Nut, M8, Hex Flange Head	-	1	Enquire
36	4G431861AA	CLIP	4G431861AA CLIP	-	1	Enquire
37	9G437B147AA	Clamp, Oil Cooler Pipes	9G437B147AA Clamp, Oil Cooler Pipes	-	1	Enquire
38	703189	BOLT M8x16 HEX FLG CHROME FREE	703189 BOLT M8x16 HEX FLG CHROME FREE	-	1	Enquire
39	CD336K375AC	Flex Plate, Rear	CD336K375AC Flex Plate, Rear Type B	-	1	Enquire
40	4G439912553AA	BOLT M8 X 80 CAP SKT HD GD 10	4G439912553AA BOLT M8 X 80 CAP SKT HD GD 10 Type B	-	1	Enquire
