Rear Suspension Assembly of Aston Martin Aston Martin V12 Zagato

View All

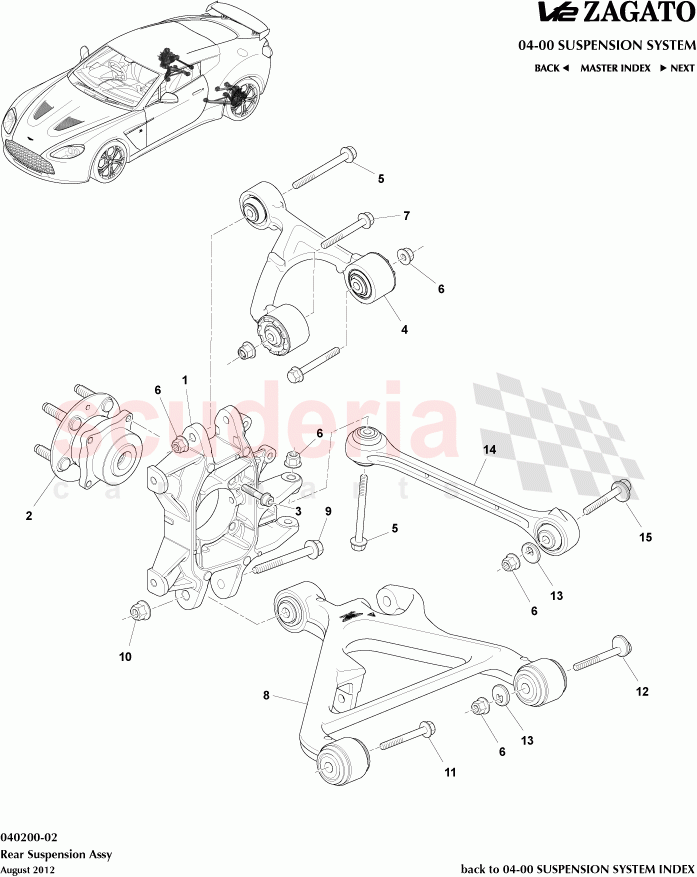

Aston Martin V12 Zagato - Rear Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD235A970AA	KNUCKLE - REAR WHEEL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

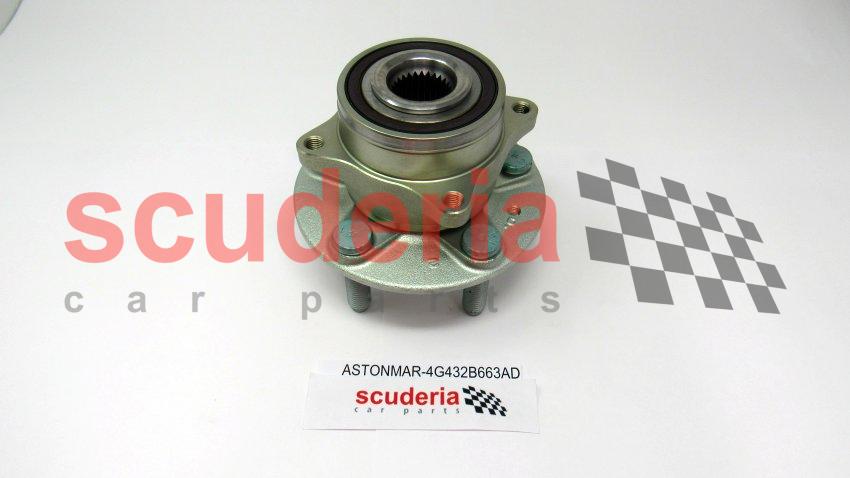

	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

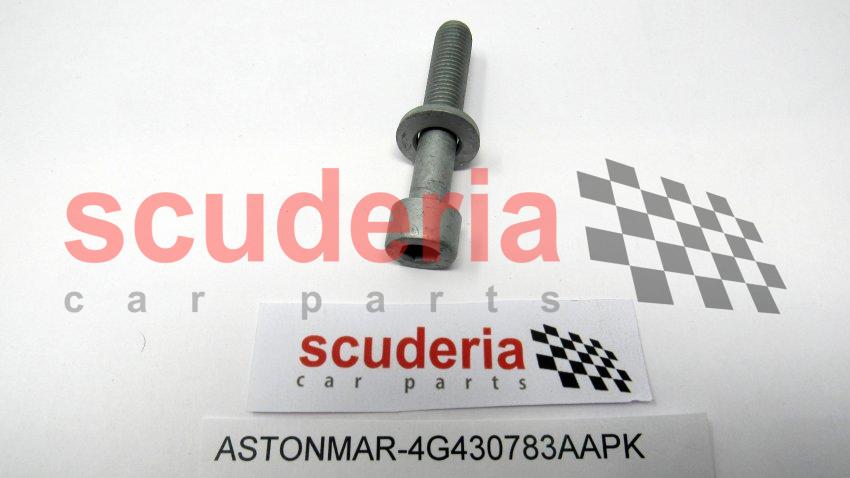

	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335K742AA	Arm & Bushing Assy, Rear Suspension, Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

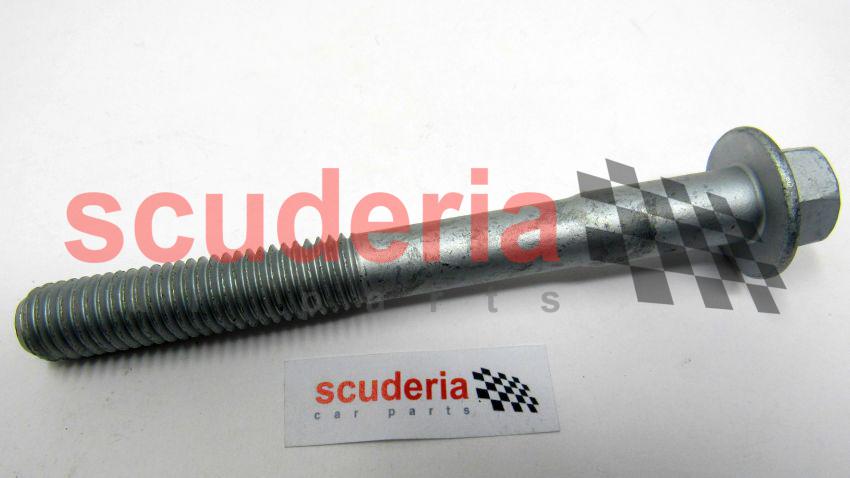

	AD33487029AA	Bolt, M12 x 110, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703181	BOLT M12 X 85 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335B530AE	SUSPENSION ARM LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

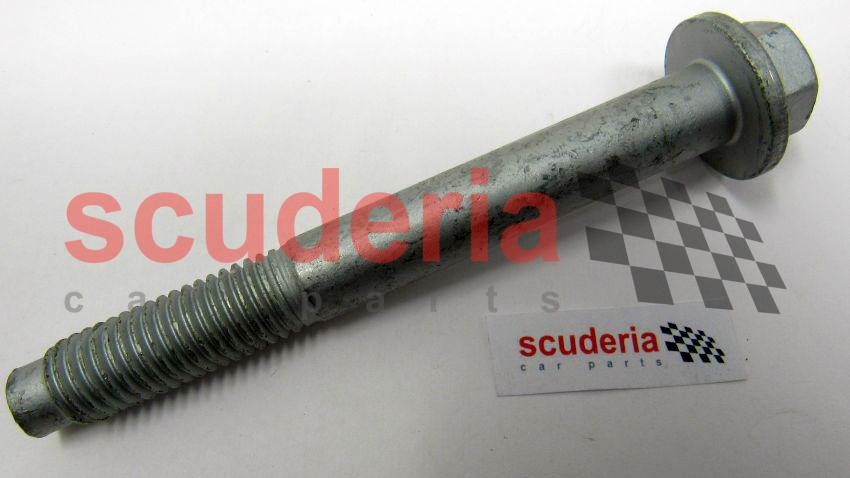

	703133	BOLT M14 X 110 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

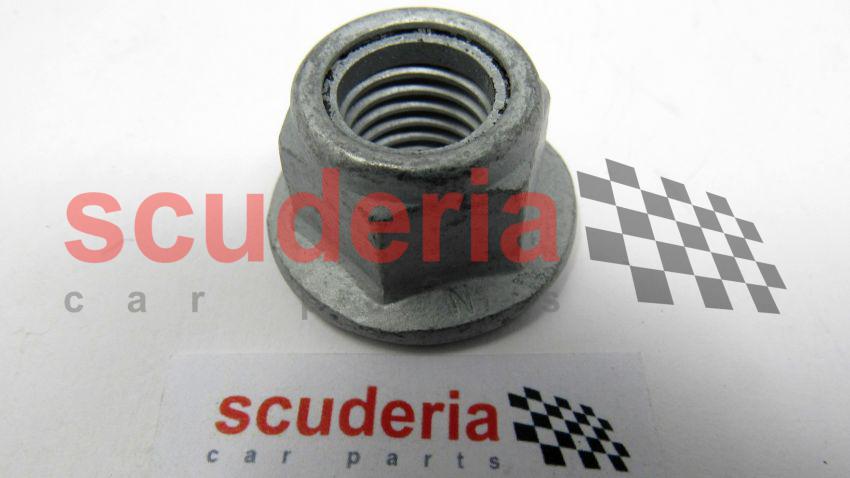

	704596	Nut, M14, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

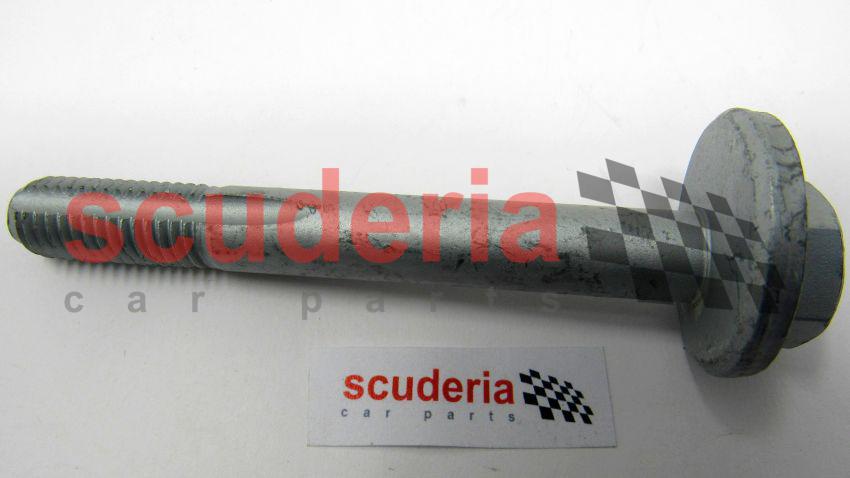

	703274	Bolt, M12, Eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432610840PK	WASHER-M12 ECCENTRIC PACK OF 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG435B551AA	Arm Assy, Rear Toe Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

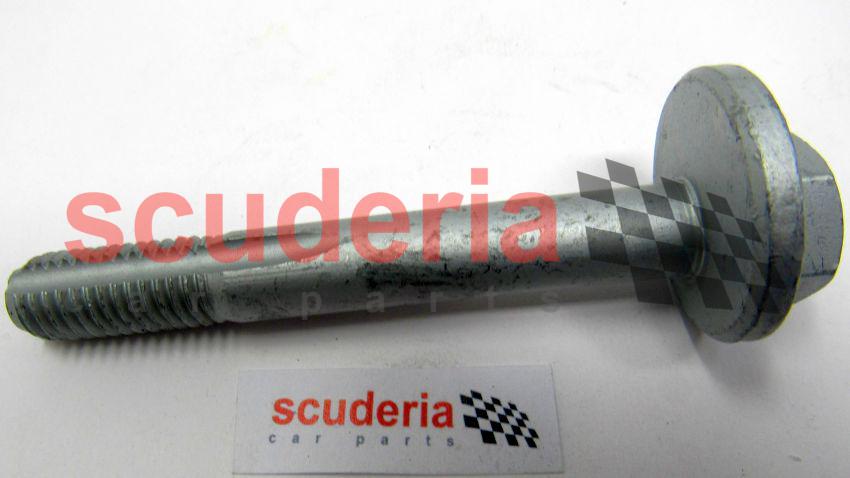

	4G435K978AB	Bolt, M12, Eccentric	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AD335A971AA	Knuckle, Rear Wheel, LH	AD335A971AA Knuckle, Rear Wheel, LH	-	1	Enquire
-	6G335K743AA	Arm & Bushing Assy, Rear Suspension, Upper, LH	6G335K743AA Arm & Bushing Assy, Rear Suspension, Upper, LH	-	1	Enquire
-	6G335B531AE	SUSPENSION ARM LOWER LH	6G335B531AE SUSPENSION ARM LOWER LH	-	1	Enquire
1	AD235A970AA	KNUCKLE - REAR WHEEL RH	AD235A970AA KNUCKLE - REAR WHEEL RH	-	1	Enquire
2	4G432B663AD	HUB & BEARING ASSEMBLY, FRONT	4G432B663AD HUB & BEARING ASSEMBLY, FRONT	-	2	Enquire
3	4G430783AAPK	Hub Bolt M10 x 55 x 1.25 (Pack of 5)	4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) Pack of 5	-	8	Enquire
4	6G335K742AA	Arm & Bushing Assy, Rear Suspension, Upper, RH	6G335K742AA Arm & Bushing Assy, Rear Suspension, Upper, RH	-	1	Enquire
5	AD33487029AA	Bolt, M12 x 110, Hex Flange Head	AD33487029AA Bolt, M12 x 110, Hex Flange Head	-	4	Enquire
6	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE	-	12	Enquire
7	703181	BOLT M12 X 85 HEX FLANGE CHROME FREE	703181 BOLT M12 X 85 HEX FLANGE CHROME FREE	-	4	Enquire
8	6G335B530AE	SUSPENSION ARM LOWER RH	6G335B530AE SUSPENSION ARM LOWER RH	-	1	Enquire
9	703133	BOLT M14 X 110 HEX FLANGE CHROME FREE	703133 BOLT M14 X 110 HEX FLANGE CHROME FREE	-	2	Enquire
10	704596	Nut, M14, Hex Flange Head	704596 Nut, M14, Hex Flange Head	-	2	Enquire
11	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED	-	2	Enquire
12	703274	Bolt, M12, Eccentric	703274 Bolt, M12, Eccentric	-	2	Enquire
13	4G432610840PK	WASHER-M12 ECCENTRIC PACK OF 10	4G432610840PK WASHER-M12 ECCENTRIC PACK OF 10 Pack of 10	-	4	Enquire
14	BG435B551AA	Arm Assy, Rear Toe Control	BG435B551AA Arm Assy, Rear Toe Control	-	2	Enquire
15	4G435K978AB	Bolt, M12, Eccentric	4G435K978AB Bolt, M12, Eccentric	-	2	Enquire
