Transmission

Aston Martin GT VANQUISH (2025-

Find Your Part

Aston Martin GT VANQUISH (2025- - Transmission

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All
Transmission of Aston Martin Aston Martin GT VANQUISH (2025- Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
20 KY7370041AB
TRANS ASY (8HP95) SH
Includes item 180 		- 1 Enquire
30 FD3319A509AA
TRANS FLUID - AUTO
1 Litre Bottle 		- A/R Enquire
40 HY5325199AA
TURA ADAPTOR SHAFT 		- 1 Enquire
50 HY5301131AA
BOLT M8X55 CAP SKT 		- 1 Enquire
60 SY7Y6K375AA
FLEXPLATE ADAPTOR 		- 1 Enquire
70 4G43HYG10549AA
SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK 		- 6 Enquire
80 703189
BOLT M8x16 HEX FLG CHROME FREE 		- 1 Enquire
90 HY5345904AA
SINGLE PIPE CLIP 6MM 		- 1 Enquire
100 KY737B147AB
BRKT-TRAN OILTUB RET 		- 1 Enquire
110 HY537A245AB
TUB ASY-AUTO TRANS 		- 1 Enquire
120 HY534969AA
GREASE COLLAR 		- 1 Enquire
130 4G439912553AA
BOLT M8 X 80 CAP SKT HD GD 10
ALWAYS REPLACE. DO NOTRE-USE 		- 1 Enquire
140 HY53ANR1864EA
TRPLE BRKT PIPE CLIP 		- 1 Enquire
160 KY637J338AB
MASS DAMPER TRANS 		- 2 Enquire
170 KY63V800317AA
BOLT-M8x50 TX CAP HD 		- 2 Enquire
180 KY736D635AA
TRANS OILPAN 		- 1 Enquire
200 14A1962CP
BUMPER BEAM - REAR - - ASSY-BMPR-BEAM-ENERGY SYSTEM-R
Includes items 210-240 		- 1 Enquire
210 KY6322700AA
SERV PT E-DIFF MOTOR 		- 1 Enquire
220 HY53SE7A195AA
COVER - DIFFERENTIAL 		- 1 Enquire
230 HY53SE4B416AA
O RING 		- 1 Enquire
240 HY53SE4346AA
SCREW M5X16 CSK 		- 3 Enquire
250 703192
SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE 		- 5 Enquire
260 707010
BLT-M10 x1.5x110 HEX 		- 1 Enquire
270 703265
Screw, M6 x 16, Hex Flange Head 		- 1 Enquire
280 HY53108080BA
AXLE COOLER ELBOW 		- 2 Enquire
290 KY639K466AA
WATER JACKET FDO 		- 1 Enquire
300 BG332710604
RH OUTPUT SHAFT LIP SEAL 		- 1 Enquire
310 HY535823AA
BRACKET PIPE CLIP 		- 1 Enquire
320 FD237H141AA
TEMP SENSOR 		- 1 Enquire
330 FD334159BAPK
DIFF OIL (1ltr)-(10)
1 Litre, Pack of 10 		- A/R Enquire
340 705701
DRAIN PLUG WASHER 		- 2 Enquire
350 HY537A245BB
BREATHER AUTO DIFF 		- 1 Enquire
360 4G432710488
Adaptor, Breather
Breather Pipe 		- 1 Enquire
370 HY5345904AA
SINGLE PIPE CLIP 6MM 		- 2 Enquire
500 HY537A095AA
HT EXCH ASSY TOC 		- 1 Enquire
510 HY53E804349AA
M6 X 14 SCREW HEX HD 		- 1 Enquire
520 HY538C654AB
HT EXCH RR PLT 		- 1 Enquire
530 703264
SCREW-M6 x 14 HEX HD 		- 3 Enquire
540 HY538C420AB
BRKT ASY ELEC WTR PM 		- 1 Enquire
550 HY538B592AC
ELEC WATER PUMP 		- 1 Enquire
560 HY538N502AA
STRAP BRKT EPUMP 		- 1 Enquire
570 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 8 Enquire
580 703264
SCREW-M6 x 14 HEX HD 		- 5 Enquire
590 KY53W704533AA
HOSE RETENTION CLIP 		- 3 Enquire
600 HY538B573AB
WTR PMP HS OTLT 		- 1 Enquire
610 703264
SCREW-M6 x 14 HEX HD 		- 1 Enquire
620 703264
SCREW-M6 x 14 HEX HD 		- 3 Enquire
630 HY5318D552AB
HT EXCH RR PLT HS OT 		- 1 Enquire
640 HY535A265AB
PIPE ASSY INLET MID
Includes item 660 		- 1 Enquire
650 HY535D202AB
PIPE ASSY OUTLET MID
Includes item 660 		- 1 Enquire
660 DD3343394AA
PVC GROMMET 		- 6 Enquire
670 HY537F120AA
HS ASSY HX INLT 		- 1 Enquire
680 SY7Y7F120BC
HS ASY HX OUTLET 		- 1 Enquire
690 SY7Y7W093AA
PIPE ASSY FRONT 		- 1 Enquire
700 KY736L701AA
OIL PIP RR ASY 		- 1 Enquire
710 HY535B219AB
PIPE ASSY REAR 		- 1 Enquire
800 KY634W026AA
EDIFF CONTROL MODULE 		- 1 Enquire
810 RY534C110AA
BRKT EDIFF CONT 		- 1 Enquire

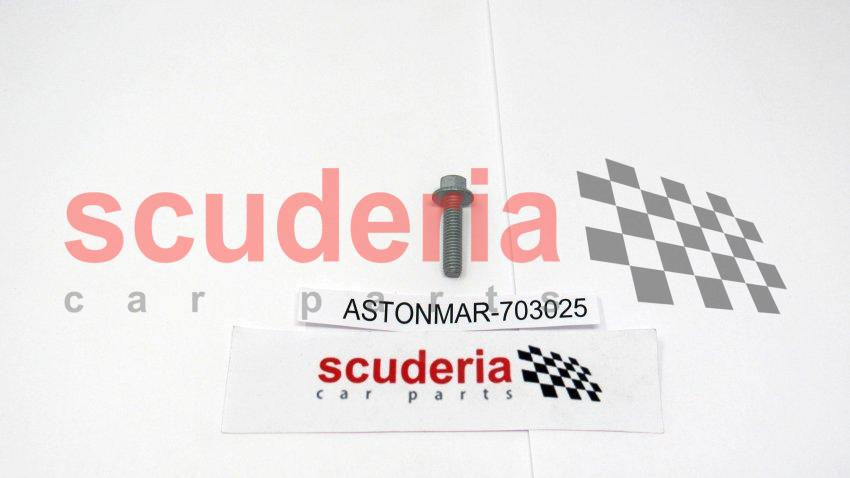

820 703025
Screw, M6 x 25, Hex Flange Head 		- 8 Enquire
999 13A5840CP
COVER - LUGGAGE BIN TOE 		- - Enquire
1000 KY73119530AA
TRANS SERVICE KIT 1 		- A/R Enquire
1001 KY733F796AA
TRANS SERVICE KIT 2 		- A/R Enquire
1002 KY734A052AA
TRANS SERVICE KIT 3 		- A/R Enquire
1003 KY737A246AA
TRANS SERVICE KIT 5 		- A/R Enquire
1004 KY736C755AA
TRANS SERVICE KIT 6 		- A/R Enquire
1005 KY736C796AA
TRANS SERVICE KIT 7 		- A/R Enquire
1006 KY7315C671AA
TRANS SERVICE KIT 8 		- A/R Enquire
1007 KY73221315AA
TRANS SERVICE KIT 9 		- A/R Enquire
1008 KY73224406AA
TRANS SERVICE KIT 10 		- A/R Enquire
