Brakes - Carbon of Aston Martin Aston Martin GT VANQUISH (2025-

View All

Aston Martin GT VANQUISH (2025- - Brakes - Carbon

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
10	RY732D007AA	BRAKE PAD KIT FRONT	RY732D007AA BRAKE PAD KIT FRONT Axle Set, Bedded	-	1	Enquire
20	KY732C588AA	KIT PAD SPR AND PIN	KY732C588AA KIT PAD SPR AND PIN 1 Kit per Caliper	-	2	Enquire
30	KY732C375CB	DSC ASY VNT FR LH	KY732C375CB DSC ASY VNT FR LH Replace in Pairs	-	1	Enquire
31	KY732C374CB	DSC ASY VNT FR RH	KY732C374CB DSC ASY VNT FR RH Replace in Pairs	-	1	Enquire
40	KY732E463CA	CAL ASSY FRT WHL CCB	KY732E463CA CAL ASSY FRT WHL CCB Black	-	1	Enquire
41	KY732E463DA	CAL ASSY FRT WHL CCB	KY732E463DA CAL ASSY FRT WHL CCB Red	-	1	Enquire
42	KY732E463FA	CAL ASSY FRT WHL CCB	KY732E463FA CAL ASSY FRT WHL CCB Yellow	-	1	Enquire
43	KY732E463JA	CAL ASSY FRT WHL CCB	KY732E463JA CAL ASSY FRT WHL CCB Black Anodised	-	1	Enquire
44	KY732E463MA	CAL ASSY FRT WHL CCB	KY732E463MA CAL ASSY FRT WHL CCB Bronze	-	1	Enquire
45	KY732E463NA	CAL ASSY FRT WHL CCB	KY732E463NA CAL ASSY FRT WHL CCB AMR Lime	-	1	Enquire
46	KY732E463PA	CAL ASSY FRT WHL CCB	KY732E463PA CAL ASSY FRT WHL CCB Vivid Blue	-	1	Enquire
47	KY732E463SA	CAL ASSY FRT WHL CCB	KY732E463SA CAL ASSY FRT WHL CCB Vivid Red	-	1	Enquire
48	SY9Y11465AB	OIL COOLER MNT BRAKT	SY9Y11465AB OIL COOLER MNT BRAKT AMR Green	-	1	Enquire
60	KY732E462CA	CAL ASSY FRT WHL BRK	KY732E462CA CAL ASSY FRT WHL BRK Black	-	1	Enquire
61	KY732E462DA	CAL ASSY FRT WHL BRK	KY732E462DA CAL ASSY FRT WHL BRK Red	-	1	Enquire
62	KY732E462FA	CAL ASSY FRT WHL BRK	KY732E462FA CAL ASSY FRT WHL BRK Yellow	-	1	Enquire
63	KY732E462JA	CAL ASSY FRT WHL BRK	KY732E462JA CAL ASSY FRT WHL BRK Black Anodised	-	1	Enquire
64	KY732E462MA	CAL ASSY FRT WHL BRK	KY732E462MA CAL ASSY FRT WHL BRK Bronze	-	1	Enquire
65	KY732E462NA	CAL ASSY FRT WHL BRK	KY732E462NA CAL ASSY FRT WHL BRK AMR Lime	-	1	Enquire
66	KY732E462PA	CAL ASSY FRT WHL BRK	KY732E462PA CAL ASSY FRT WHL BRK Vivid Blue	-	1	Enquire
67	KY732E462SA	CAL ASSY FRT WHL BRK	KY732E462SA CAL ASSY FRT WHL BRK Vivid Red	-	1	Enquire
68	SY9Y04317BCW	PASS OUTBRD PAD	SY9Y04317BCW PASS OUTBRD PAD AMR Green	-	1	Enquire
80	KY732C564AA	BLT-BRK CLPR TO KNL	KY732C564AA BLT-BRK CLPR TO KNL ALWAYS REPLACE. DO NOTREUSE	-	4	Enquire
90	HY532B372AA	ABS SENSOR IN STOCK	HY532B372AA ABS SENSOR IN STOCK	-	2	Enquire
100	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor ABS Sensor	-	2	Enquire
110	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk IN STOCK	4G432N389AA Screw, M8 x 14, Flat Head Countersunk IN STOCK	-	2	Enquire
120	HY532L507AA	PAD WEAR LEAD FRONT IN STOCK	HY532L507AA PAD WEAR LEAD FRONT IN STOCK	-	2	Enquire
130	RY732K005BA	FRT LH BRK H/SHIELD	RY732K005BA FRT LH BRK H/SHIELD	-	1	Enquire
140	RY732K004BA	FRT RH BRK H/SHIELD	RY732K004BA FRT RH BRK H/SHIELD	-	1	Enquire
150	4G4313D026AA	Screw, retaining disc shield IN STOCK	4G4313D026AA Screw, retaining disc shield Brake Shield IN STOCK	-	8	Enquire
160	KY6332180AA	KIT DUST BOOT FRONT	KY6332180AA KIT DUST BOOT FRONT Caliper Set	-	2	Enquire
170	4G432C563AA	Kit, Bleed Screw IN STOCK	4G432C563AA Kit, Bleed Screw Caliper Set IN STOCK	-	2	Enquire
200	RY732C562AA	BRAKE PAD KIT REAR	RY732C562AA BRAKE PAD KIT REAR Axle Set	-	1	Enquire
210	HY532C588BA	REAR SPRING & PIN KIT IN STOCK	HY532C588BA REAR SPRING & PIN KIT Axle Set IN STOCK	-	1	Enquire
220	KY732C027CB	RR WHL DISC BRK	KY732C027CB RR WHL DISC BRK Replace in Pairs	-	1	Enquire
221	KY732C026CB	RR WHL DISC BRK	KY732C026CB RR WHL DISC BRK Replace in Pairs	-	1	Enquire
230	KY732E465CA	CAL ASSY RR LH	KY732E465CA CAL ASSY RR LH Black	-	1	Enquire
231	KY732E465DA	CAL ASSY RR LH	KY732E465DA CAL ASSY RR LH Red	-	1	Enquire
232	KY732E465FA	CAL ASSY RR LH	KY732E465FA CAL ASSY RR LH Yellow	-	1	Enquire
233	KY732E465JA	CAL ASSY RR LH	KY732E465JA CAL ASSY RR LH Black Anodised	-	1	Enquire
234	KY732E465MA	CAL ASSY RR LH	KY732E465MA CAL ASSY RR LH Bronze	-	1	Enquire
235	KY732E465NA	CAL ASSY RR LH	KY732E465NA CAL ASSY RR LH AMR Lime	-	1	Enquire
236	KY732E465PA	CAL ASSY RR LH	KY732E465PA CAL ASSY RR LH Vivid Blue	-	1	Enquire
237	KY732E465SA	CAL ASSY RR LH	KY732E465SA CAL ASSY RR LH Vivid Red	-	1	Enquire
238	11A3817CP	COVER - REAR FRAME TO FUEL CELL - LH	11A3817CP COVER - REAR FRAME TO FUEL CELL - LH Orange	-	1	Enquire
239	SY9Y044E37FCW	ASSY LWR PASS MIDL P	SY9Y044E37FCW ASSY LWR PASS MIDL P AMR Green	-	1	Enquire
240	00RA457	SCREW - M10X30-10.9 - HEX	00RA457 SCREW - M10X30-10.9 - HEX Madagascar Orange	-	1	Enquire
250	KY732E464CA	CAL ASSY RH BLK	KY732E464CA CAL ASSY RH BLK Black	-	1	Enquire
251	KY732E464DA	CAL ASSY RH RED	KY732E464DA CAL ASSY RH RED Red	-	1	Enquire
252	KY732E464FA	CAL ASSY RH YEL	KY732E464FA CAL ASSY RH YEL Yellow	-	1	Enquire
253	KY732E464JA	CAL ASSY RH ANO	KY732E464JA CAL ASSY RH ANO Black Anodised	-	1	Enquire
254	KY732E464MA	CAL ASSY RH BRZ	KY732E464MA CAL ASSY RH BRZ Bronze	-	1	Enquire
255	KY732E464NA	CAL ASSY RH LIME	KY732E464NA CAL ASSY RH LIME AMR Lime	-	1	Enquire
256	KY732E464PA	CAL ASSY RH VD BLUE	KY732E464PA CAL ASSY RH VD BLUE Vivid Blue	-	1	Enquire
257	KY732E464SA	CAL ASSY RH VVD RED	KY732E464SA CAL ASSY RH VVD RED Vivid Red	-	1	Enquire
258	11A4284CP	PLUG - DOME - 25 DIAMETER	11A4284CP PLUG - DOME - 25 DIAMETER Orange	-	1	Enquire
259	SY9Y017A87CC	HUSH PNL LWR PASS	SY9Y017A87CC HUSH PNL LWR PASS AMR Green	-	1	Enquire
260	11A4416CP	CROSS BEAM - TRANSMISSION FLOOR	11A4416CP CROSS BEAM - TRANSMISSION FLOOR Madagascar Orange	-	1	Enquire

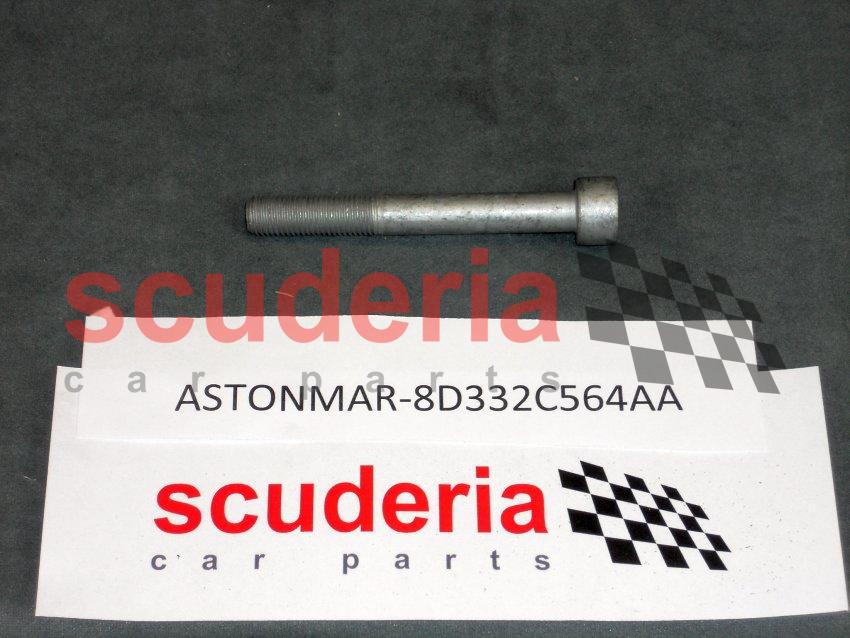

270	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	8D332C564AA Brake Bolt, M12 x 95, Caliper to Knuckle ALWAYS REPLACE. DO NOTREUSE	-	4	Enquire
280	HY532B372AA	ABS SENSOR IN STOCK	HY532B372AA ABS SENSOR IN STOCK	-	2	Enquire
290	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor ABS Sensor	-	2	Enquire
300	HY532C029AA	SHLD-RR WHL DSC BRK	HY532C029AA SHLD-RR WHL DSC BRK	-	1	Enquire
310	HY532C028AA	SHLD-RR WHL DSC BRK	HY532C028AA SHLD-RR WHL DSC BRK	-	1	Enquire
320	4G4313D026AA	Screw, retaining disc shield IN STOCK	4G4313D026AA Screw, retaining disc shield Brake Shield IN STOCK	-	6	Enquire
330	HY532D009AC	PAD WEAR LEAD REAR IN STOCK	HY532D009AC PAD WEAR LEAD REAR IN STOCK	-	2	Enquire
340	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk IN STOCK	4G432N389AA Screw, M8 x 14, Flat Head Countersunk IN STOCK	-	2	Enquire
360	4G4332610AA	Kit, Dust Boot, Rear Caliper	4G4332610AA Kit, Dust Boot, Rear Caliper 1 Kit Per Caliper	-	2	Enquire
370	4G432C563AA	Kit, Bleed Screw IN STOCK	4G432C563AA Kit, Bleed Screw 1 Kit per Caliper IN STOCK	-	2	Enquire
400	HY532B926BB	EPB CALIPER PAD KIT	HY532B926BB EPB CALIPER PAD KIT Axle Set	-	1	Enquire
410	HY532B675BA	KIT BUSH & SLIDE PIN	HY532B675BA KIT BUSH & SLIDE PIN Slider Kit	-	2	Enquire
420	RY532C464BA	H/BRAKE CAL LH	RY532C464BA H/BRAKE CAL LH Anodised. Includes item410	-	1	Enquire
430	RY532C465BA	H/BRAKE CAL RH	RY532C465BA H/BRAKE CAL RH Anodised. Includes item410	-	1	Enquire
440	4G432C564CA	Bolt M10x87 Hex flange, secures EPB IN STOCK	4G432C564CA Bolt M10x87 Hex flange, secures EPB ALWAYS REPLACE. DO NOTREUSE IN STOCK	-	2	Enquire
500	SY9Y20221BCW	ASSY DR INR UPR LH	SY9Y20221BCW ASSY DR INR UPR LH LHD	-	1	Enquire
501	SY9Y10676AA	SD DR ELATCH CAB COV	SY9Y10676AA SD DR ELATCH CAB COV RHD	-	1	Enquire
510	LY639872AA	BOOSTER CLIP	LY639872AA BOOSTER CLIP	-	1	Enquire
520	AG4332692BA	M8X25 STEEL WASHER	AG4332692BA M8X25 STEEL WASHER	-	4	Enquire
530	MY83SE14B386AA	BRAKE LIGHT SWITCH	MY83SE14B386AA BRAKE LIGHT SWITCH	-	1	Enquire
540	HY539F836AA	FLR MNT ACC PDL	HY539F836AA FLR MNT ACC PDL	-	1	Enquire
550	707164	SCREW-M6 x 1.0 x 28	707164 SCREW-M6 x 1.0 x 28	-	1	Enquire
560	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	-	4	Enquire
600	14AA942CP	CROSS BEAM - TRANSMISSION FLOOR	14AA942CP CROSS BEAM - TRANSMISSION FLOOR	-	1	Enquire
610	HY53SE2C444AB	SENSOR-VACUUM	HY53SE2C444AB SENSOR-VACUUM	-	1	Enquire
620	703216PK	NUT M8 HEXAGON FLANGED (PACK OF 10) IN STOCK	703216PK NUT M8 HEXAGON FLANGED (PACK OF 10) Pack of 10 IN STOCK	-	2	Enquire
630	HY53J1403AF	BRK VAC HOSE LHD	HY53J1403AF BRK VAC HOSE LHD LHD	-	1	Enquire
640	HY53J1403BF	BRK VAC HOSE RHD	HY53J1403BF BRK VAC HOSE RHD RHD	-	1	Enquire
660	702282	CLIP 16-18 5x6 5x1-6	702282 CLIP 16-18 5x6 5x1-6 RHD	-	1	Enquire
670	AD4312838AA	NUT PROTECTION CAP M8	AD4312838AA NUT PROTECTION CAP M8 LHD only	-	1	Enquire
680	SY9Y19924BB	HVAC ASSY	SY9Y19924BB HVAC ASSY	-	1	Enquire
690	FD432162AA	CAP- RESERVOIR	FD432162AA CAP- RESERVOIR	-	1	Enquire
700	HY532C217AA	SPARES RESV KIT	HY532C217AA SPARES RESV KIT	-	1	Enquire
710	HY532C506AA	BRK SYS ELEC VAC PMP	HY532C506AA BRK SYS ELEC VAC PMP	-	1	Enquire
720	HY532C167BC	UPR EVP BRKT	HY532C167BC UPR EVP BRKT	-	1	Enquire
730	HY532C167CC	LWR EVP BRACKET	HY532C167CC LWR EVP BRACKET	-	1	Enquire
740	703121	Screw, M8 x 25, Hex Flange Head IN STOCK	703121 Screw, M8 x 25, Hex Flange Head IN STOCK	-	4	Enquire
750	4G4316C695AB	DOMED NUT	4G4316C695AB DOMED NUT RHD only	-	1	Enquire
790	700781PK	BRAKE FLUID-REACT PERFORMANCE DOT4- (1704) BOX OF 12	700781PK BRAKE FLUID-REACT PERFORMANCE DOT4- (1704) BOX OF 12 Box of 12	-	A/R	Enquire
800	SY9Y19A699AA	COND DRAIN TUBE	SY9Y19A699AA COND DRAIN TUBE LHD	-	1	Enquire
810	SY9Y10012AC	TWIN DOOR RHS CARRIE	SY9Y10012AC TWIN DOOR RHS CARRIE RHD	-	1	Enquire
820	HY53ANR1864EA	TRPLE BRKT PIPE CLIP	HY53ANR1864EA TRPLE BRKT PIPE CLIP Included with item 800	-	4	Enquire
830	SY9Y120609DA	AM003 DUP OWN ITA	SY9Y120609DA AM003 DUP OWN ITA LHD	-	1	Enquire
831	14AB834CP	SHIM - 2MM - REAR - UPPER	14AB834CP SHIM - 2MM - REAR - UPPER RHD	-	1	Enquire
840	HY532A478BC	BK PIP CLU MOD TO RR	HY532A478BC BK PIP CLU MOD TO RR	-	1	Enquire
850	HY532267CD	VEH RR BLKHD PIP L	HY532267CD VEH RR BLKHD PIP L	-	1	Enquire
860	SY9YC405A02BC	ENGN CVR SD ACS RH C	SY9YC405A02BC ENGN CVR SD ACS RH C	-	1	Enquire
870	HY532268CC	VEH RR BLKHD PIP R	HY532268CC VEH RR BLKHD PIP R	-	1	Enquire
880	14AB835CP	SHIM - 1MM - REAR - UPPER	14AB835CP SHIM - 1MM - REAR - UPPER	-	1	Enquire
890	14AB836CP	SHIM - 0.5MM - REAR - UPPER	14AB836CP SHIM - 0.5MM - REAR - UPPER	-	1	Enquire
900	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head IN STOCK	-	4	Enquire
910	KY632282AA	HOSE ASY RR WHL BR	KY632282AA HOSE ASY RR WHL BR	-	2	Enquire
920	HY532078AC	HS ASY FRT WHL BRK L IN STOCK	HY532078AC HS ASY FRT WHL BRK L IN STOCK	-	1	Enquire
930	HY532078BC	HS ASY FRT WHL BRK R	HY532078BC HS ASY FRT WHL BRK R	-	1	Enquire
940	HY532A364AA	BRK HOSE BDYT SPG CL	HY532A364AA BRK HOSE BDYT SPG CL	-	4	Enquire
950	HY532B211AD	BRK HS MNT BDY BRK L	HY532B211AD BRK HS MNT BDY BRK L	-	1	Enquire
960	HY532B210AD	BRK HS MNT BDY BRK R	HY532B210AD BRK HS MNT BDY BRK R	-	1	Enquire
970	HY532A000AE	BK HOSE RHF MTG	HY532A000AE BK HOSE RHF MTG	-	1	Enquire
980	HY532A001AE	BR HOSE LHF MTG	HY532A001AE BR HOSE LHF MTG	-	1	Enquire
990	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	2	Enquire
1100	RY532C353AA	ESP9.3 ESP WET MOD	RY532C353AA ESP9.3 ESP WET MOD Pre-filled	-	1	Enquire
1110	RY532C213AA	ABS MOD BDY BRKT	RY532C213AA ABS MOD BDY BRKT Includes items 1120 &1130	-	1	Enquire
1120	AG4328460BA	ISO BUSH	AG4328460BA ISO BUSH	-	3	Enquire
1130	AG43384993AA	COMP LIMITER	AG43384993AA COMP LIMITER	-	3	Enquire
1140	703120	Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	703120 Screw M8-1.25-90 Hex Socket Head Shoulder IN STOCK	-	3	Enquire
1150	MY83N602206AA	M10X1 HEAD SCREW	MY83N602206AA M10X1 HEAD SCREW	-	1	Enquire
1160	RY5314B296AA	6D YAW RATE SENSOR	RY5314B296AA 6D YAW RATE SENSOR	-	1	Enquire
1170	RY5314D640AA	YRS SENSOR BKT	RY5314D640AA YRS SENSOR BKT	-	1	Enquire
1180	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking IN STOCK	-	4	Enquire
