Headlights of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

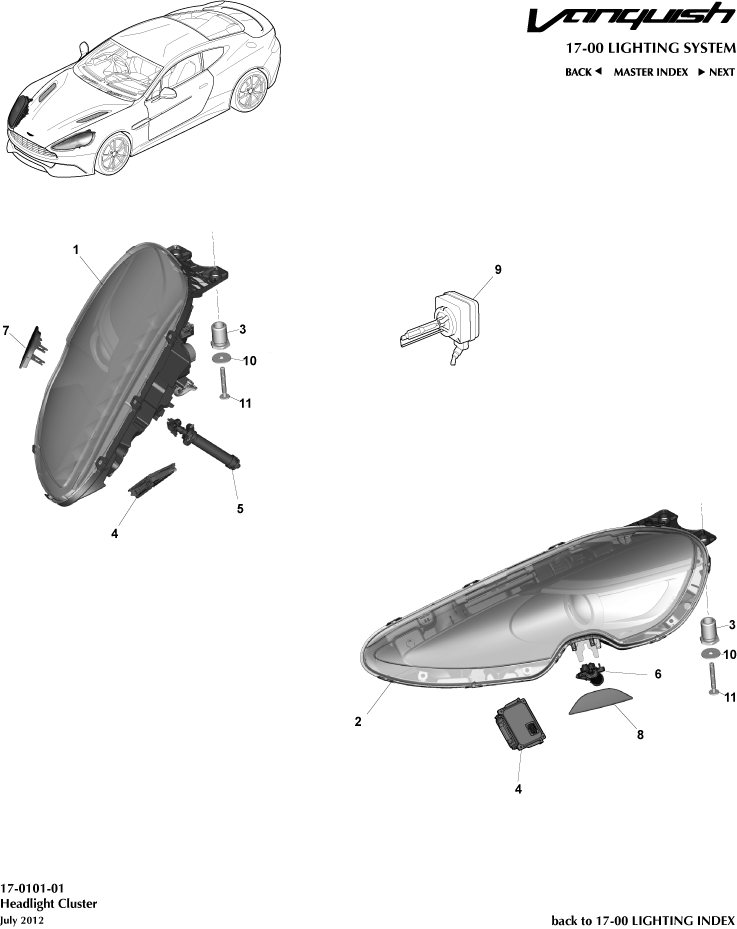

Aston Martin GT VANQUISH (2013-2018) - Headlights

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3313W029BB	HEADLAMP ASS RH LHD	CD3313W029BB HEADLAMP ASS RH LHD Silver, LHD, ROW	-	1	Enquire
-	CD3313W029CA	HEADLAMP ASSY RH FED	CD3313W029CA HEADLAMP ASSY RH FED Up To VIN J02631, Silver, LHD, FED	-	1	Enquire
-	CD3313W029CB	HEADLAMP ASSY RH FED	CD3313W029CB HEADLAMP ASSY RH FED From VIN J02632, Silver, LHD, FED	-	1	Enquire
-	AD4313W029AE	HEADLAMP ASS RH RHD	AD4313W029AE HEADLAMP ASS RH RHD Black, RHD	-	1	Enquire
-	AD4313W029BF	Headlamp Assy RH LHD	AD4313W029BF Headlamp Assy RH LHD Black, LHD, ROW	-	1	Enquire
-	FD3313W029CA	HEADLAMP ASSY RH FED	FD3313W029CA HEADLAMP ASSY RH FED Up To VIN J02501, Black, LHD, FED	-	1	Enquire
-	FD3313W029CB	HEADLAMP ASSY RH FED	FD3313W029CB HEADLAMP ASSY RH FED From VIN J02502, Black, LHD, FED	-	1	Enquire
-	CD3313W030BC	HEADLAMP ASS LH LHD	CD3313W030BC HEADLAMP ASS LH LHD Silver, LHD, ROW	-	1	Enquire
-	CD3313W030CA	HEADLAMP ASSY LH FED	CD3313W030CA HEADLAMP ASSY LH FED Up To VIN J02631, Silver, LHD, FED	-	1	Enquire
-	CD3313W030CB	HEADLAMP ASSY LH FED	CD3313W030CB HEADLAMP ASSY LH FED From VIN J02632, Silver, LHD, FED	-	1	Enquire
-	AD4313W030AE	HEADLAMP ASS LH RHD	AD4313W030AE HEADLAMP ASS LH RHD Black, RHD	-	1	Enquire
-	AD4313W030BF	HEADLAMP ASS LH LHD	AD4313W030BF HEADLAMP ASS LH LHD Black, LHD, ROW	-	1	Enquire
-	FD3313W030CA	HEADLAMP ASSY LH FED	FD3313W030CA HEADLAMP ASSY LH FED Up To VIN J02501, Black, LHD, FED	-	1	Enquire
-	FD3313W030CB	HEADLAMP ASSY LH FED	FD3313W030CB HEADLAMP ASSY LH FED From VIN J02502, Black, LHD, FED	-	1	Enquire
1	CD3313W029AB	HEADLAMP ASS RH RHD	CD3313W029AB HEADLAMP ASS RH RHD Silver, RHD	-	1	Enquire
2	CD3313W030AB	HEADLAMP ASS LH RHD	CD3313W030AB HEADLAMP ASS LH RHD Silver, RHD	-	1	Enquire
3	8G4313037AA	Headlamp Adjuster, M20	8G4313037AA Headlamp Adjuster, M20 -	-	6	Enquire
4	AD4313C169AA	Ballast Assembly, HID Service Kit	AD4313C169AA Ballast Assembly, HID Service Kit -	-	2	Enquire
5	AD4313C024AA	Jet Wash Assembly, RH	AD4313C024AA Jet Wash Assembly, RH -	-	1	Enquire
6	AD4313C025AA	Jet Wash Assembly, LH	AD4313C025AA Jet Wash Assembly, LH -	-	1	Enquire
7	AD4313C026AA	Cover Headlamp Wash, RH	AD4313C026AA Cover Headlamp Wash, RH -	-	1	Enquire
8	AD4313C027AA	Cover Headlamp Wash, LH	AD4313C027AA Cover Headlamp Wash, LH -	-	1	Enquire
9	4G433710226	Bulb, HID, Dip Beam	4G433710226 Bulb, HID, Dip Beam -	-	2	Enquire
10	697810PK	WSHR-M6x25 SSBLK(10)	697810PK WSHR-M6x25 SSBLK(10) -	-	6	Enquire
11	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	703144 Bolt M6 x 45 Pan Flange Torx 8 Chrome Free -	-	6	Enquire
