Exhaust System, 'S' of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Exhaust System, 'S'

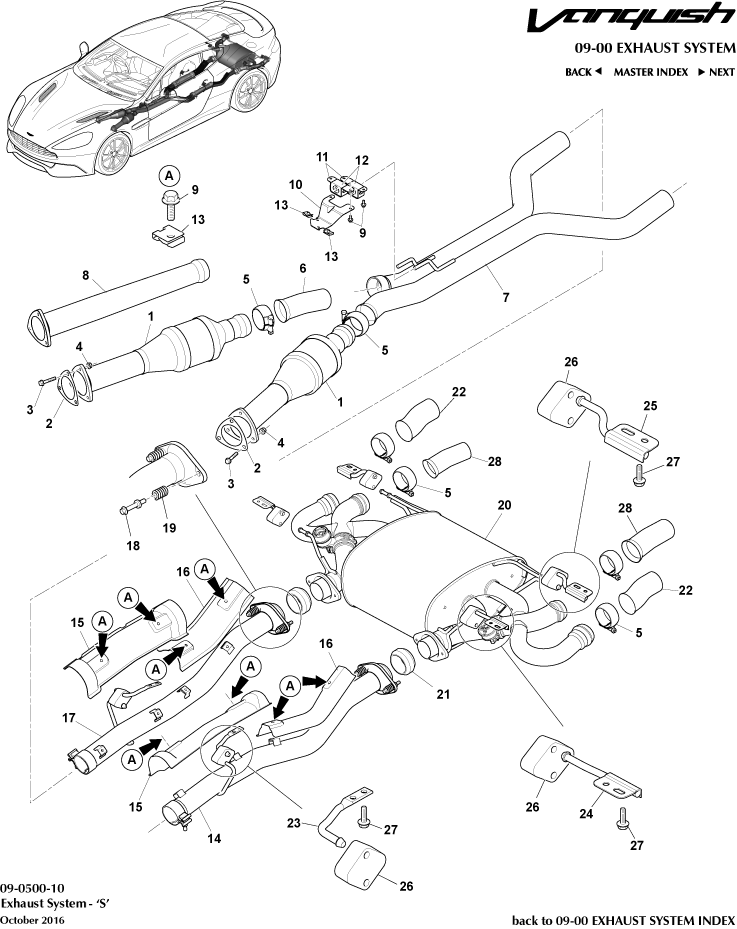

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FD335N201EA	BRKT EXH MTNG CTR RH	FD335N201EA BRKT EXH MTNG CTR RH -	-	1	Enquire
1	8G435E211AD	Catalyst & Pipe Assembly	8G435E211AD Catalyst & Pipe Assembly -	-	2	Enquire
2	4G435E281AAPK	Gasket, Exhaust Manifold to Under Floor Catalytic Converter	4G435E281AAPK Gasket, Exhaust Manifold to Under Floor Catalytic Converter Pack of 2	-	2	Enquire
3	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	702698 BOLT-M8x45 FLANGE HEAD STAINLESS STEEL -	-	6	Enquire
4	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	4G4302738AAPK Nut, M8 Hex Flange Head, Stainless (Pack of 10) Pack of 10	-	6	Enquire
5	9G435221AA	EXHAUST PIPE CLAMP	9G435221AA EXHAUST PIPE CLAMP -	-	6	Enquire
6	CG435220FA	Pipe, Exhaust Intermediate Stub	CG435220FA Pipe, Exhaust Intermediate Stub -	-	1	Enquire
7	CD335220DC	Pipe, Exhaust Centre	CD335220DC Pipe, Exhaust Centre -	-	1	Enquire
8	HD335E211AA	PIPE EXH U/FLR ASSY	HD335E211AA PIPE EXH U/FLR ASSY -	-	2	Enquire
9	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD -	-	15	Enquire
10	4G433962ED	Bracket, Support	4G433962ED Bracket, Support -	-	1	Enquire
11	4G433962FA	Bracket, Exhaust Isolator	4G433962FA Bracket, Exhaust Isolator -	-	2	Enquire
12	4G433510025	Rubber, Exhaust Mount	4G433510025 Rubber, Exhaust Mount -	-	2	Enquire
13	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields -	-	14	Enquire
14	HD335220BB	PIPE EXHAUST LH	HD335220BB PIPE EXHAUST LH Includes Items 9, 13, 15 and 16	-	1	Enquire
15	FD335G221BA	SHL ASY EXH SYS RR R	FD335G221BA SHL ASY EXH SYS RR R -	-	2	Enquire
16	AD435G221CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	AD435G221CA SHIELD ASSY EXHAUST SYSTEM REAR REAR -	-	2	Enquire
17	HD335220AB	PIPE EXHAUST RH	HD335220AB PIPE EXHAUST RH Includes Items 9, 13, 15 and 16	-	1	Enquire
18	4G4370816AA	Bolt, M8 Flange Head	4G4370816AA Bolt, M8 Flange Head -	-	4	Enquire
19	4G435F264AA	Spring, Exhaust Pipe Flange	4G435F264AA Spring, Exhaust Pipe Flange -	-	4	Enquire
20	HD335230EA	EXHAUST MUFFLER	HD335230EA EXHAUST MUFFLER -	-	1	Enquire
21	4G4317213BA	Sealing Ring Exhaust	4G4317213BA Sealing Ring Exhaust -	-	2	Enquire
22	AD435220CA	STUB PIPE CENTRE	AD435220CA STUB PIPE CENTRE -	-	2	Enquire
23	FD335N201DA	BRKT EXH MTNG CTR LH	FD335N201DA BRKT EXH MTNG CTR LH -	-	1	Enquire
24	CD335N201CB	Bracket, Muffler Mounting Hanger Assy, Rear, LH	CD335N201CB Bracket, Muffler Mounting Hanger Assy, Rear, LH -	-	2	Enquire
25	CD335N201DB	Bracket, Muffler Mounting Hanger Assy, Rear, RH	CD335N201DB Bracket, Muffler Mounting Hanger Assy, Rear, RH -	-	1	Enquire
26	4G433510026	Isolator, Exhaust Hanger	4G433510026 Isolator, Exhaust Hanger -	-	6	Enquire
27	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	12	Enquire
28	HD335220CB	STUB PIPE EXHAUST	HD335220CB STUB PIPE EXHAUST -	-	2	Enquire
