Transmission, 8spd of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

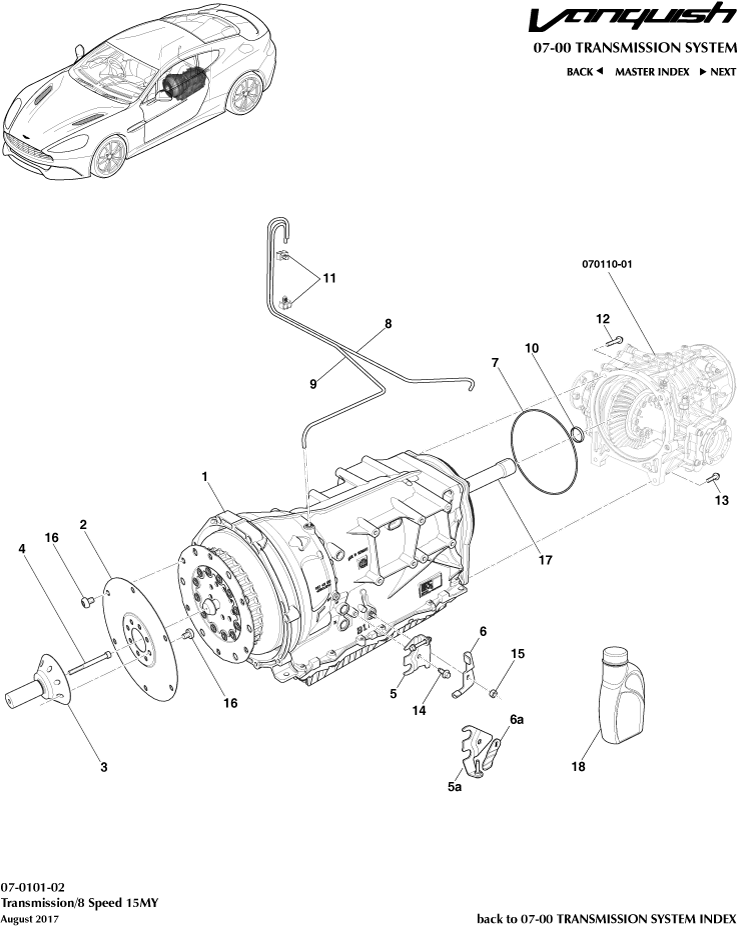

Aston Martin GT VANQUISH (2013-2018) - Transmission, 8spd

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	FD3370041AB	AUTO TRANSMISSION AS	FD3370041AB AUTO TRANSMISSION AS 15MY	-	1	Enquire
2	FD436K375AA	FLEX PLATE - REAR	FD436K375AA FLEX PLATE - REAR 15MY	-	1	Enquire
3	FD33209611AA	ADPT-FLEXPLATE	FD33209611AA ADPT-FLEXPLATE 15MY	-	1	Enquire
4	4G439912553AA	BOLT M8 X 80 CAP SKT HD GD 10	4G439912553AA BOLT M8 X 80 CAP SKT HD GD 10 15MY, ALWAYS REPLACE. DO NOT RE-USE. Must be ordered with new transmission	-	1	Enquire
5	FD337B147AA	LATCH PLATE TOC TO Z	FD337B147AA LATCH PLATE TOC TO Z 15MY Up to VIN J03904	-	1	Enquire
5a	KY737B147AB	BRKT-TRAN OILTUB RET	KY737B147AB BRKT-TRAN OILTUB RET VIN J03905 on	-	1	Enquire
6	FD337A257AA	SEL LVR AUTO	FD337A257AA SEL LVR AUTO 15MY Up to VIN J03904	-	1	Enquire
6a	HY537A257BA	LVR TRAN PRK INTLOCK	HY537A257BA LVR TRAN PRK INTLOCK VIN J03905 on	-	1	Enquire
7	4G437J271AB	O Ring, Transmission Adapter Plate, Rear	4G437J271AB O Ring, Transmission Adapter Plate, Rear -	-	1	Enquire
8	4G437A245BA	TUBE AUTOMATIC DIFFERENTIAL BREATHER	4G437A245BA TUBE AUTOMATIC DIFFERENTIAL BREATHER -	-	1	Enquire
9	4G437A245AA	TUBE ASSY - AUTO TRANSMISSION BREATHE	4G437A245AA TUBE ASSY - AUTO TRANSMISSION BREATHE -	-	1	Enquire
10	4G434210979	Oil Seal, 60 x 44 x 7mm	4G434210979 Oil Seal, 60 x 44 x 7mm -	-	1	Enquire
11	701565	CLIP 4-6 DUx6.5	701565 CLIP 4-6 DUx6.5 -	-	2	Enquire
12	703182	BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE	703182 BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE Upper	-	2	Enquire
13	703183	BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE	703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE Lower	-	2	Enquire
14	703189	BOLT M8x16 HEX FLG CHROME FREE	703189 BOLT M8x16 HEX FLG CHROME FREE Cooler Hose Clamp to Gearbox	-	1	Enquire
15	703158	Nut, M8, Hex Flange Head	703158 Nut, M8, Hex Flange Head -	-	1	Enquire
16	4G43HYG10549AA	SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK	4G43HYG10549AA SCREW M10x1.5x13 PN HD TORX T-50 GD 10 BLK 15MY	-	14	Enquire
17	4G434211251	Shaft, Output	4G434211251 Shaft, Output -	-	1	Enquire
18	FD3319A509AA	TRANS FLUID - AUTO	FD3319A509AA TRANS FLUID - AUTO 15MY, 8 speed only	-	1	Enquire
