Underbonnet Labels of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Underbonnet Labels

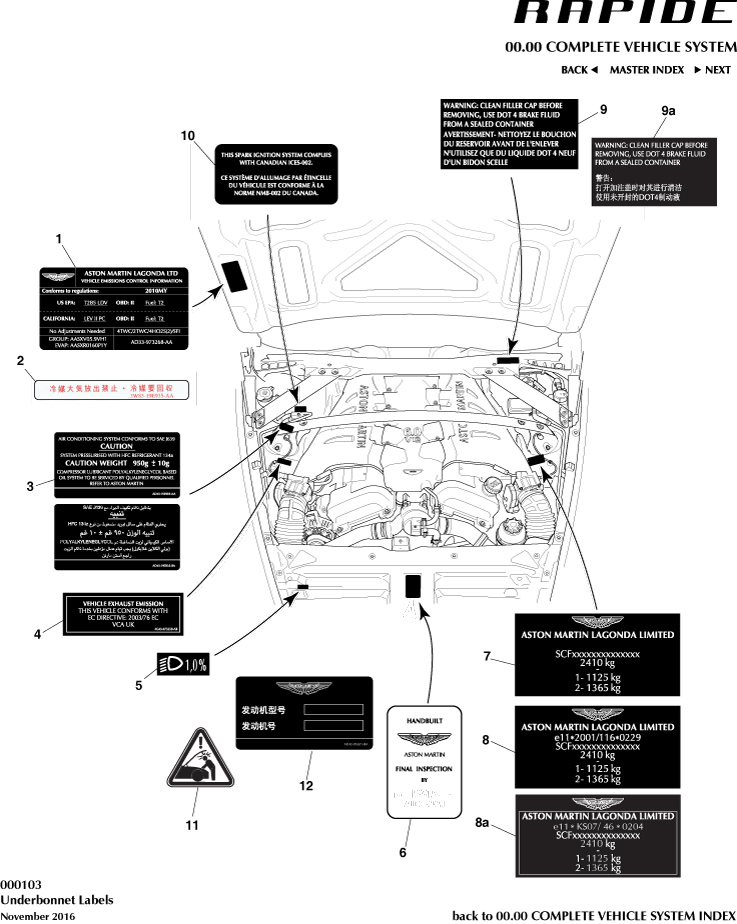

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	EG43973268AA	Label, Vehicle Emissions Control Information	EG43973268AA Label, Vehicle Emissions Control Information Rapide S, Canada and USA	-	1	Enquire
-	HD23973268AA	VECI EMISSIONS LABEL	HD23973268AA VECI EMISSIONS LABEL Rapide S 17MY, Canada and USA	-	1	Enquire
-	JD23973268AA	VEHICLE EMISSIONS LABEL	JD23973268AA VEHICLE EMISSIONS LABEL Rapide S 18MY, Canada and USA	-	1	Enquire
-	KD43973268AA	LABEL-VECI EMISSIONS	KD43973268AA LABEL-VECI EMISSIONS Rapide S 19MY, Canada and USA	-	1	Enquire
-	SY9Y14A373CA	HIGH VOLTAGE JUNCTN	SY9Y14A373CA HIGH VOLTAGE JUNCTN From 16MY. Japan only	-	1	Enquire
-	HY5319E935AA	AIR CON LABEL	HY5319E935AA AIR CON LABEL RoW, R134a Gas 19MY on	-	1	Enquire
-	AD4319E935BA	AIRCON LABEL - RAPIDE (ARABIC)	AD4319E935BA AIRCON LABEL - RAPIDE (ARABIC) GCC, R134a Gas only	-	1	Enquire
-	HY5319E935BA	AIR CON LBL GCC	HY5319E935BA AIR CON LBL GCC GCC, 19MY on	-	1	Enquire
-	SY9Y14D220AA	HORSESHOE VENT CTR	SY9Y14D220AA HORSESHOE VENT CTR R1234yf Gas only	-	1	Enquire
-	KD4319E935EA	LBL AC R134YF 850G	KD4319E935EA LBL AC R134YF 850G R1234yf Gas 19MY on	-	1	Enquire
-	HY5319E935DA	LBL AC JAP	HY5319E935DA LBL AC JAP Japan 19MY on	-	1	Enquire
-	00RM004	RIVET - 3.28.X 8MM - BOLLHOFF	00RM004 RIVET - 3.28.X 8MM - BOLLHOFF Singapore 18MY	-	1	Enquire
-	KY63975259AA	LABEL EMISSIONS	KY63975259AA LABEL EMISSIONS Singapore 19MY on	-	1	Enquire
-	KD439710210	FINAL INSPECTION PLT	KD439710210 FINAL INSPECTION PLT AMR	-	1	Enquire
-	SY9Y120609BA	AM003 DUP OWN FRA	SY9Y120609BA AM003 DUP OWN FRA RoW 19MY on	-	1	Enquire
-	KD43973615AA	MAN PLT HDLP ANG EUR	KD43973615AA MAN PLT HDLP ANG EUR Europe, 19MY on	-	1	Enquire
-	SY9Y5F137BC	FRT CLAM ASSY-ROW-BC	SY9Y5F137BC FRT CLAM ASSY-ROW-BC Europe, VIN F06321 on	-	1	Enquire
-	4G4319G318AC	LABEL - MERCURY	4G4319G318AC LABEL - MERCURY USA, Canada	-	1	Enquire
1	AD33973268AA	LABEL EMISSIONS - DBS	AD33973268AA LABEL EMISSIONS - DBS Canada; USA only	-	1	Enquire
2	3W8319E935AA	LABEL AIRCON REF DIS	3W8319E935AA LABEL AIRCON REF DIS Up to 16MY. Japan only	-	1	Enquire
3	AD4319E935AA	AIRCON LABEL - RAPIDE (ENGLISH)	AD4319E935AA AIRCON LABEL - RAPIDE (ENGLISH) RoW, R134a Gas	-	1	Enquire
4	AG43975259BA	LABEL - EMISSIONS SINGAPORE	AG43975259BA LABEL - EMISSIONS SINGAPORE Singapore. Up to 17MY	-	1	Enquire
5	6G3319G318BA	LABEL - INITIAL HEADLAMP AIM IN STOCK	6G3319G318BA LABEL - INITIAL HEADLAMP AIM All Markets IN STOCK	-	1	Enquire
6	AD43974663AA	FINAL INSPECTION PLAQUE HAND BUILT	AD43974663AA FINAL INSPECTION PLAQUE HAND BUILT All markets except AMR	-	1	Enquire
7	SY9Y120609QA	AM003 DUP OWN HEBREW	SY9Y120609QA AM003 DUP OWN HEBREW RoW	-	1	Enquire
8	SY9Y69320DDW	SUNVISOR RH ECE LHD	SY9Y69320DDW SUNVISOR RH ECE LHD Europe, Up To VIN F02999	-	1	Enquire
8a	CD43973615BA	ASSY MANF PLATE SS	CD43973615BA ASSY MANF PLATE SS Europe, From VIN F03000	-	1	Enquire
9	4G432C378AB	Label, Brake Master Cylinder IN STOCK	4G432C378AB Label, Brake Master Cylinder All Markets IN STOCK	-	1	Enquire
9a	-		China	-	1	Enquire
11	DD43915A01AA	Label, Hood Latch Warning	DD43915A01AA Label, Hood Latch Warning -	-	2	Enquire
12	SY9Y23943ACW	DOOR ASSY TRIM LH	SY9Y23943ACW DOOR ASSY TRIM LH China	-	1	Enquire
