Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Electrical Wiring - Cabin - Coupe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

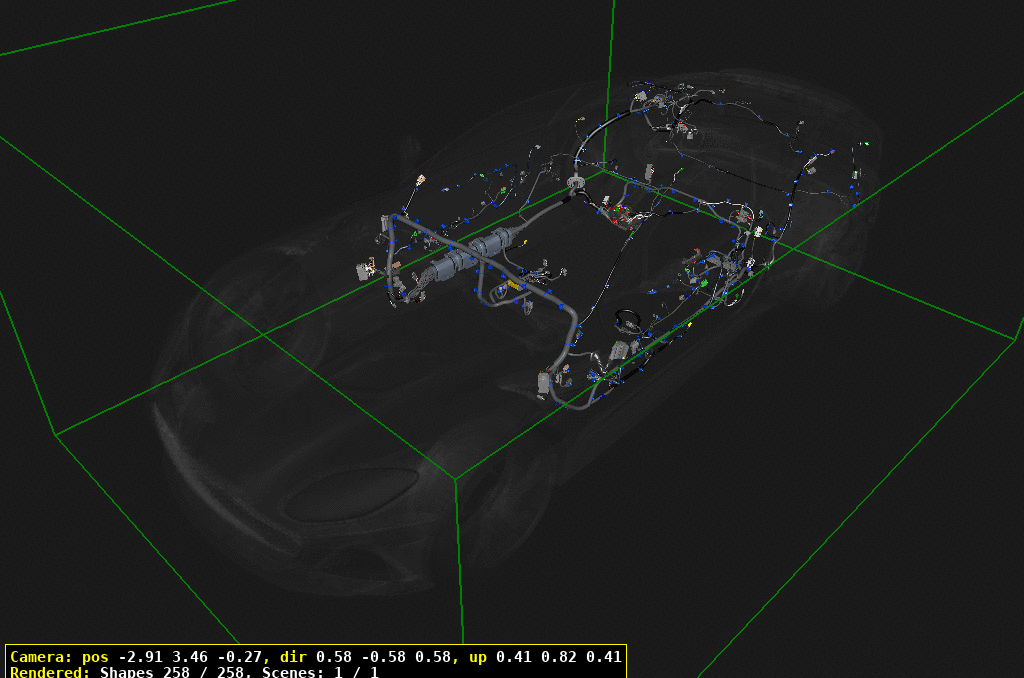

Electrical Wiring - Cabin - Coupe of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 22AB201GP
ASSY PNL RR FENDER SUPPORT UPR LH 		- - Enquire
20 KY7314A005AB
LHD CABIN HRNS B&O
LHD, -> 19MY, B&O, RoW 		- 1 Enquire
21 LY7314A005IA
LHD CABIN HRNS B&O
LHD, 20MY->, B&O, RoW. ->VIN R02431 		- 1 Enquire
22 LY7314A005IB
LHD CABIN HRNS B&O
LHD, 20MY->, B&O, RoW.VIN R02432-> 		- 1 Enquire
23 KY7314A005BB
RHD CABIN HARNESS
RHD, -> 19MY, B&O, RoW 		- 1 Enquire
24 LY7314A005JA
RHD CABIN HARNESS
RHD, 20MY->, B&O, RoW. ->VIN R02434 		- 1 Enquire
25 LY7314A005JB
RHD CABIN HARNESS
RHD, 20MY->, B&O, RoW.VIN R02435-> 		- 1 Enquire
26 KY7314A005CB
LHD CABIN HRNS ASK
LHD, -> 19MY, ASK, RoW 		- 1 Enquire
27 LY7314A005KA
LHD CABIN HRNS ASK
LHD, 20MY->, ASK, RoW. ->VIN R02433 		- 1 Enquire
28 LY7314A005KB
LHD CABIN HRNS ASK
LHD, 20MY->, ASK, RoW.VIN R02433-> 		- 1 Enquire
29 KY7314A005EB
LHD CABIN HRNS JAP
LHD, -> 19MY, B&O, Japan 		- 1 Enquire
30 LY7314A005MA
LHD CABIN HRNS JAP
LHD, 20MY->, B+O, Japan.-> VIN R02433 		- 1 Enquire
31 LY7314A005MB
LHD CABIN HRNS JAP
LHD, 20MY->, B+O, Japan.VIN R02434-> 		- 1 Enquire
32 KY7314A005GB
LHD CABIN HRNS JAP
LHD, -> 19MY, ASK, Japan 		- 1 Enquire
33 LY7314A005OA
LHD CABIN HRNS JAP
LHD, 20MY->, ASK, Japan.-> VIN R02577 		- 1 Enquire
34 LY7314A005OB
LHD CABIN HRNS JAP
LHD, 20MY-> ASK, Japan.VIN R02578-> 		- 1 Enquire
41 KY7314A005DB
RHD CABIN HRNS ASK
RHD, -> 19MY, ASK, RoW 		- 1 Enquire
42 LY7314A005LA
RHD CABIN HRNS ASK
RHD, 20MY->, ASK, RoW. ->VIN R02436 		- 1 Enquire
43 LY7314A005LB
RHD CABIN HRNS ASK
RHD, 20MY->, ASK, RoW.VIN R02437-> 		- 1 Enquire
44 KY7314A005FB
RHD CABIN HRNS JAP
RHD, -> 19MY, B&O, Japan 		- 1 Enquire
45 LY7314A005NA
RHD CABIN HRNS JAP
RHD, 20MY->, B&O, Japan.-> VIN R02581 		- 1 Enquire
46 LY7314A005NB
RHD CABIN HRNS JAP
RHD, 20MY->, B&O, Japan.VIN R02582-> 		- 1 Enquire
47 KY7314A005HB
RHD CABIN HRNS JAP
RHD, -> 19MY, ASK, Japan 		- 1 Enquire
48 LY7314A005PA
RHD CABIN HRNS JAP
RHD, 20MY->, ASK, Japan.-> VIN R02433 		- 1 Enquire
49 LY7314A005PB
RHD CABIN HRNS JAP
RHD, 20MY->, ASK, Japan.VIN R02434-> 		- 1 Enquire
50 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 2 Enquire
60 701553
Screw, M6 x 16, Pan Head 		- 6 Enquire
70 702522
M5 GRADE 8 HEX FLANGE ALMETTAL LOCKING NUT 		- 1 Enquire
80 702840
Nut & Washer, M6, Hex Flange Head 		- 8 Enquire
100 HY5314A301BB
CBN FSBX R LHS BRKT 		- 1 Enquire
110 HY5314N003AA
CABIN INLINE BRKT 		- 1 Enquire
120 KY7313507BA
REAR LAMP LINK FED
Federal 		- 2 Enquire
121 KY7313507AA
RR LAMP LINK NON FED
RoW 		- 2 Enquire
130 HY5314024AD
DRVRS DR HRNS LK 		- 1 Enquire
140 HY5314025AD
PAS DR HRNS LK 		- 1 Enquire
150 HY5314631BC
LHD DRVRS DR HRNS
LHD 		- 1 Enquire
151 HY5314630AC
RHD PASS DR HRNS
RHD 		- 1 Enquire
160 HY5314630BC
LHD PAS DR HRNS
LHD 		- 1 Enquire
161 HY5314631AC
RHD DRVRS DR HRNS
RHD 		- 1 Enquire
170 703264
SCREW-M6 x 14 HEX HD 		- 1 Enquire
180 7G4314A666AA
BLANKING PLUG DMTL 		- 1 Enquire
200 3723422
Fuse, Midi 5A 		- A/R Enquire
210 3723423
Fuse Midi 7.5A 		- A/R Enquire
220 3723424
Fuse, Midi 10A 		- A/R Enquire
230 3723425
Fuse, Midi 15A 		- A/R Enquire
240 3723426
Fuse, Midi 20A 		- A/R Enquire
250 3723427
Fuse, Midi 25A 		- A/R Enquire
300 4G433710578PK
MINI FUSE-5A PK 10
Pack of 10 		- A/R Enquire
310 4G433710580PK
MINI FUSE-10A PK 10
Pack of 10 		- A/R Enquire
320 4G433710581PK
MINI FUSE-15A PK 10
Pack of 10 		- A/R Enquire
330 4G433710583PK
MINI FUSE-25A PK 10
Pack of 10 		- A/R Enquire
340 ED230173008AA
M6 NUT COVER 		- 1 Enquire
400 HY533710087
FUSE-20A-U-J CASE
Blue 		- 2 Enquire
410 HY533710085
FUSE-30A-K-J CASE
Pink 		- 4 Enquire
420 HY533710086
FUSE-40A-G-J CASE
Green 		- 6 Enquire
430 HY533710088
FUSE-50A-R-J CASE
Red 		- 9 Enquire
440 HY533710089
FUSE-60A-Y-J CASE
Yellow 		- 2 Enquire
500 HY5315692AA
RELAY PLUG-IN 		- 2 Enquire
510 HY533710163
RELAY-BCR CONTROL 		- 2 Enquire
520 HY533710084
RELAY-5 WAY-MICRO 		- 4 Enquire
