Air Con Lines of Aston Martin Aston Martin GT DBS (2007-2012)

View All

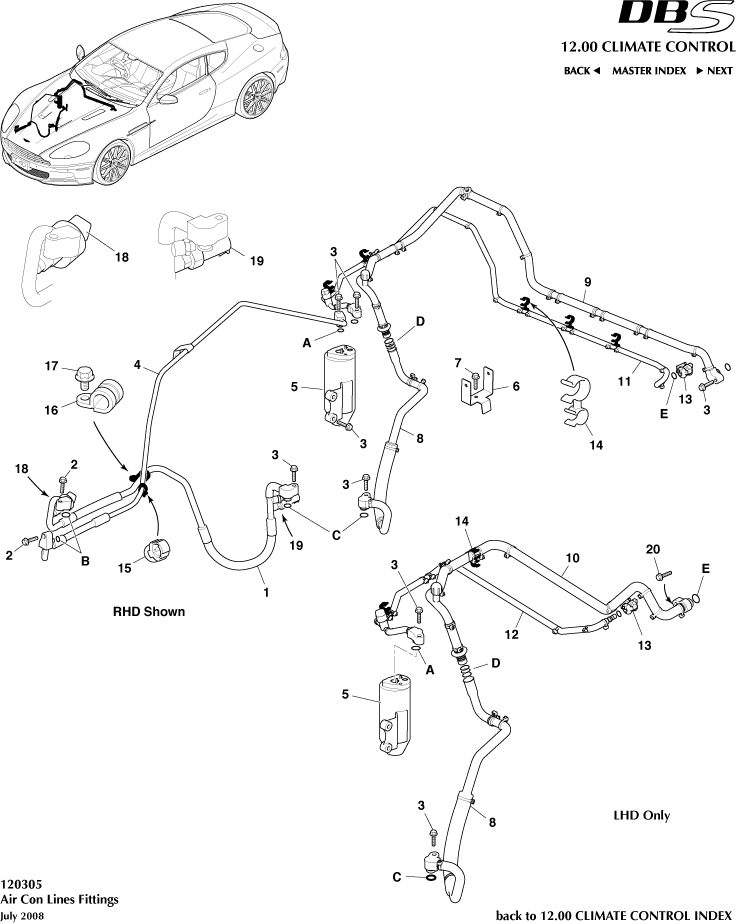

Aston Martin GT DBS (2007-2012) - Air Con Lines

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
A	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) -	-	1	Enquire
B	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2)	4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2) -	-	1	Enquire
C	4G438910909PK	O-Ring Compressor (Pack of 2)	4G438910909PK O-Ring Compressor (Pack of 2) -	-	1	Enquire
D	4G438910911PK	O RINGS-DB9 EVAPORATOR-PACK OF 3	4G438910911PK O RINGS-DB9 EVAPORATOR-PACK OF 3 -	-	1	Enquire
E	6G438910446PK	O RING-V8 EVAPORATOR PACK OF 2	6G438910446PK O RING-V8 EVAPORATOR PACK OF 2 -	-	1	Enquire
1	7G4319972AA	TUB ASY AC COMP	7G4319972AA TUB ASY AC COMP -	-	1	Enquire
2	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE -	-	2	Enquire
3	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free -	-	4	Enquire
4	4G4319D719AF	TUB ASY-A/C DEHY INL	4G4319D719AF TUB ASY-A/C DEHY INL -	-	1	Enquire
5	4G4319E891AC	RECEIVER DRIER ASSY	4G4319E891AC RECEIVER DRIER ASSY -	-	1	Enquire
6	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	4G436147XAD BRACKET - AIRCON / ELECTRICAL -	-	1	Enquire
7	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free -	-	1	Enquire
8	AG4319A705AA	Tube Assy, Evaporator Outlet	AG4319A705AA Tube Assy, Evaporator Outlet -	-	1	Enquire
9	8G4319A705CA	TUB ASY-A/C EVAP OLE	8G4319A705CA TUB ASY-A/C EVAP OLE RHD	-	1	Enquire
11	8G4319835CA	TUBE AIRCON DEHYDRATOR	8G4319835CA TUBE AIRCON DEHYDRATOR RHD	-	1	Enquire
12	8G4319835BA	TUB ASY-A/C DEHY	8G4319835BA TUB ASY-A/C DEHY LHD	-	1	Enquire
13	4G434073AAA	CLAMP - LIQ	4G434073AAA CLAMP - LIQ -	-	1	Enquire
15	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In -	-	-	Enquire
16	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6 -	-	1	Enquire
17	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	1	Enquire
18	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure -	-	1	Enquire
20	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head LHD Only	-	1	Enquire
