IP Harness of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

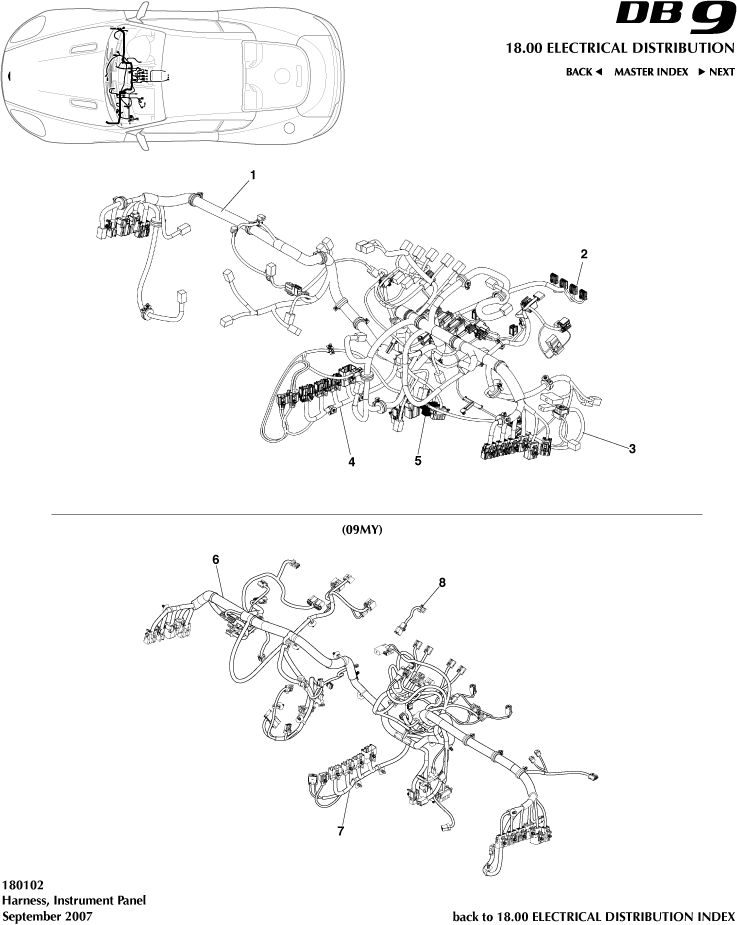

Aston Martin GT DB9 (2004-2017) - IP Harness

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7G4314401EC	HARNESS ASSY FACIA RHD AUTO	7G4314401EC HARNESS ASSY FACIA RHD AUTO 07MY	-	1	Enquire
-	8G4314401EB	HARNESS ASSY FACIA RHD AUTO	8G4314401EB HARNESS ASSY FACIA RHD AUTO 08MY From (V) A09110 +	-	1	Enquire
-	4G4314401FA	HARNESS ASSY FACIA LHD AUTO	4G4314401FA HARNESS ASSY FACIA LHD AUTO -	-	1	Enquire
-	7G4314401FC	HARNESS ASSY FACIA LHD AUTO	7G4314401FC HARNESS ASSY FACIA LHD AUTO 07MY	-	1	Enquire
-	8G4314401FB	HARNESS ASSY FACIA LHD AUTO	8G4314401FB HARNESS ASSY FACIA LHD AUTO 08MY From (V) A09110 +	-	1	Enquire
-	4G4314401GA	HARNESS ASSY FACIA RHD MANUAL	4G4314401GA HARNESS ASSY FACIA RHD MANUAL -	-	1	Enquire
-	7G4314401GC	HARNESS ASSY FACIA RHD MANUAL	7G4314401GC HARNESS ASSY FACIA RHD MANUAL 07MY	-	1	Enquire
-	8G4314401GB	HARNESS ASSY FACIA RHD MANUAL	8G4314401GB HARNESS ASSY FACIA RHD MANUAL 08MY From (V) A09110 +	-	1	Enquire
-	4G4314401HA	HARNESS ASSY FACIA LHD MANUAL	4G4314401HA HARNESS ASSY FACIA LHD MANUAL -	-	1	Enquire
-	7G4314401HC	HARNESS ASSY FACIA LHD MANUAL	7G4314401HC HARNESS ASSY FACIA LHD MANUAL 07MY	-	1	Enquire
-	8G4314401HB	HARNESS ASSY FACIA LHD MANUAL	8G4314401HB HARNESS ASSY FACIA LHD MANUAL 08MY From (V) A09110 +	-	1	Enquire
-	7G4314B079CB	RHD CENTRE STACK HARNESS	7G4314B079CB RHD CENTRE STACK HARNESS 07MY	-	1	Enquire
-	8G4314B079CB	RHD CENTRE STACK HARNESS	8G4314B079CB RHD CENTRE STACK HARNESS 08MY From (V) A09110 +	-	1	Enquire
-	4G4314B079DA	LHD CENTRE STACK HARNESS	4G4314B079DA LHD CENTRE STACK HARNESS -	-	1	Enquire
-	7G4314B079DB	LHD CENTRE STACK HARNESS	7G4314B079DB LHD CENTRE STACK HARNESS 07MY	-	1	Enquire
-	8G4314B079DB	LHD CENTRE STACK HARNESS	8G4314B079DB LHD CENTRE STACK HARNESS 08MY From (V) A09110 +	-	1	Enquire
-	7G4314B079EB	LHD CENTRE STACK HARNESS	7G4314B079EB LHD CENTRE STACK HARNESS 07MY	-	1	Enquire
-	8G4314B079EB	LHD CENTRE STACK HARNESS	8G4314B079EB LHD CENTRE STACK HARNESS 08MY From (V) A09110 +	-	1	Enquire
-	8G4314C007AA	PHONE LINK RIGHT HAND DRIVE	8G4314C007AA PHONE LINK RIGHT HAND DRIVE 08MY From (V) A09110 +	-	1	Enquire
-	4G4314C007BD	PHONE LINK LEFT HAND DRIVE	4G4314C007BD PHONE LINK LEFT HAND DRIVE 07MY	-	1	Enquire
-	8G4314C007BA	PHONE LINK LEFT HAND DRIVE	8G4314C007BA PHONE LINK LEFT HAND DRIVE 08MY From (V) A09110 +	-	1	Enquire
-	8D3314401HD	HARNESS ASSY FACIA LHD	8D3314401HD HARNESS ASSY FACIA LHD 09MY	-	1	Enquire
-	8D3314B079AF	CENTRE STACK HARNESS	8D3314B079AF CENTRE STACK HARNESS 09MY	-	1	Enquire
1	4G4314401EA	HARNESS ASSY FACIA RHD AUTO	4G4314401EA HARNESS ASSY FACIA RHD AUTO -	-	1	Enquire
2	4G4314B079CA	RHD CENTRE STACK HARNESS	4G4314B079CA RHD CENTRE STACK HARNESS -	-	1	Enquire
3	4G4314C007AD	PHONE LINK RIGHT HAND DRIVE	4G4314C007AD PHONE LINK RIGHT HAND DRIVE 07MY	-	1	Enquire
4	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	4G4318C951HB Media Oriented System transport (MOST), Service Loop -	-	1	Enquire
5	6G3314A457AA	COVER DIAGNOSTIC CONNECTOR	6G3314A457AA COVER DIAGNOSTIC CONNECTOR -	-	1	Enquire
6	8D3314401GD	HARNESS ASSY FACIA RHD	8D3314401GD HARNESS ASSY FACIA RHD 09MY	-	1	Enquire
7	9G4314B079AE	CENTRE STACK HARNESS	9G4314B079AE CENTRE STACK HARNESS 09MY	-	1	Enquire
8	8D339137BA	Harness Assembly, Passive Anti Theft System (PATS) Link	8D339137BA Harness Assembly, Passive Anti Theft System (PATS) Link 09MY	-	1	Enquire
