Headlights of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Headlights

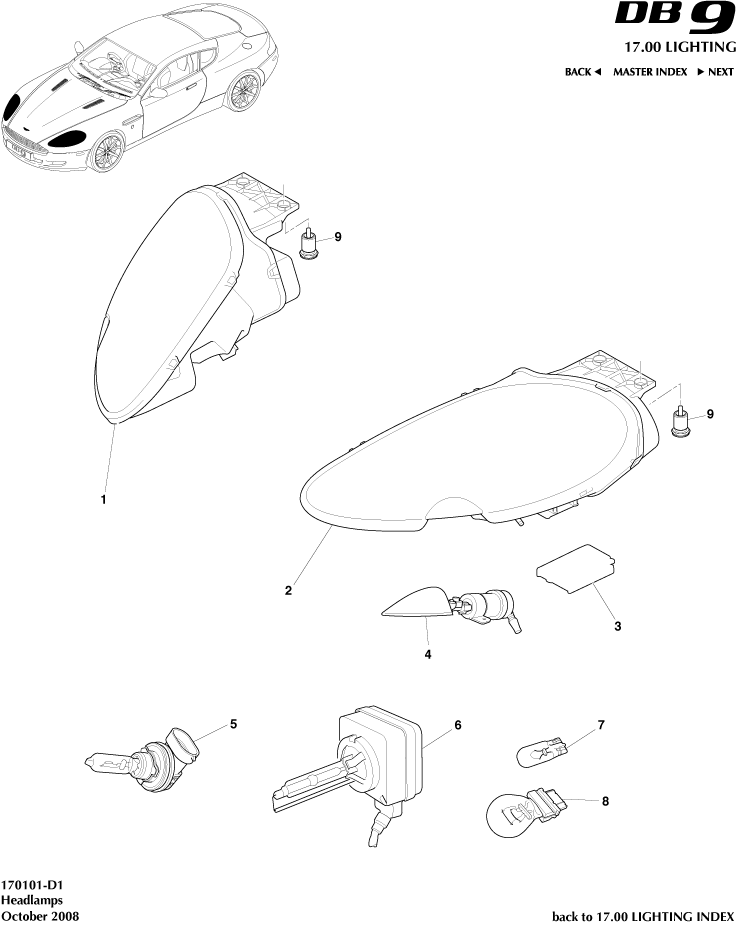

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4313W029BD	HEADLAMP ASY RH LHD	4G4313W029BD HEADLAMP ASY RH LHD Wash and leveling	-	1	Enquire
-	4G4313W029CD	HEADLAMP ASSY RH-FED	4G4313W029CD HEADLAMP ASSY RH-FED Wash and leveling	-	1	Enquire
-	BG4313W029AB	HEADLAMP ASSY RH RHD	BG4313W029AB HEADLAMP ASSY RH RHD 11MY	-	1	Enquire
-	BG4313W029BA	HEADLAMP ASSY RH LHD	BG4313W029BA HEADLAMP ASSY RH LHD 11MY	-	1	Enquire
-	BG4313W029BC	HEADLAMP ASSY RH LHD	BG4313W029BC HEADLAMP ASSY RH LHD 11MY China only	-	1	Enquire
-	BG4313W029CB	HEADLAMP ASSY RH-FED	BG4313W029CB HEADLAMP ASSY RH-FED 11MY	-	1	Enquire
-	4G4313W030BD	HEADLAMP ASY LH LHD	4G4313W030BD HEADLAMP ASY LH LHD Wash and leveling	-	1	Enquire
-	4G4313W030CD	HEADLAMP ASSY LH-FED	4G4313W030CD HEADLAMP ASSY LH-FED Wash and leveling	-	1	Enquire
-	BG4313W030AB	HEADLAMP ASSY LH RHD	BG4313W030AB HEADLAMP ASSY LH RHD 11MY	-	1	Enquire
-	BG4313W030BA	HEADLAMP ASSY LH LHD	BG4313W030BA HEADLAMP ASSY LH LHD 11MY	-	1	Enquire
-	BG4313W030BC	HEADLAMP ASSY LH LHD	BG4313W030BC HEADLAMP ASSY LH LHD 11MY China only	-	1	Enquire
-	BG4313W030CB	HEADLAMP ASSY LH-FED	BG4313W030CB HEADLAMP ASSY LH-FED 11MY	-	1	Enquire
-	4G4313C169AB	BALLAST ASSEMBLY-HEADLAMP	4G4313C169AB BALLAST ASSEMBLY-HEADLAMP 1 per headlight, De Amertek	-	1	Enquire
-	4G4313C024AB	Jet wash Cover Nozzle Assembly & Pump	4G4313C024AB Jet wash Cover Nozzle Assembly & Pump -	-	1	Enquire
-	703144	Bolt M6 x 45 Pan Flange Torx 8 Chrome Free	703144 Bolt M6 x 45 Pan Flange Torx 8 Chrome Free -	-	6	Enquire
-	697810	WASHER M6 x 25 SSBLK	697810 WASHER M6 x 25 SSBLK -	-	6	Enquire
1	4G4313W029AD	HEADLAMP ASY RH RHD	4G4313W029AD HEADLAMP ASY RH RHD Wash and leveling	-	1	Enquire
2	4G4313W030AD	HEADLAMP ASY LH RHD	4G4313W030AD HEADLAMP ASY LH RHD Wash and leveling	-	1	Enquire
3	4G4313C169AA	BALLAST ASSY	4G4313C169AA BALLAST ASSY 1 per headlight, Denso	-	1	Enquire
4	4G4313C025AB	JETWASH COVER NOZZLE ASSY & PUMP	4G4313C025AB JETWASH COVER NOZZLE ASSY & PUMP -	-	1	Enquire
5	4G4399703AA	MAIN BEAM BULB 65W TYPE H9	4G4399703AA MAIN BEAM BULB 65W TYPE H9 Main Beam	-	1	Enquire
6	4G4313N021AA	BULB	4G4313N021AA BULB Dip Beam (HID)	-	-	Enquire
7	4G4313465AA	BULB W5W BLUE	4G4313465AA BULB W5W BLUE Side lights	-	-	Enquire
8	4G4313465BA	BULB PY27/7W DIRECTION INDICATOR	4G4313465BA BULB PY27/7W DIRECTION INDICATOR Indicator	-	-	Enquire
9	4G4313037AC	H/LAMP ADJUSTER M20	4G4313037AC H/LAMP ADJUSTER M20 -	-	6	Enquire
