Name: Steering Column Assembly
Rating: 5.0 (1 reviews)

Steering Column Assembly of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Steering Column Assembly

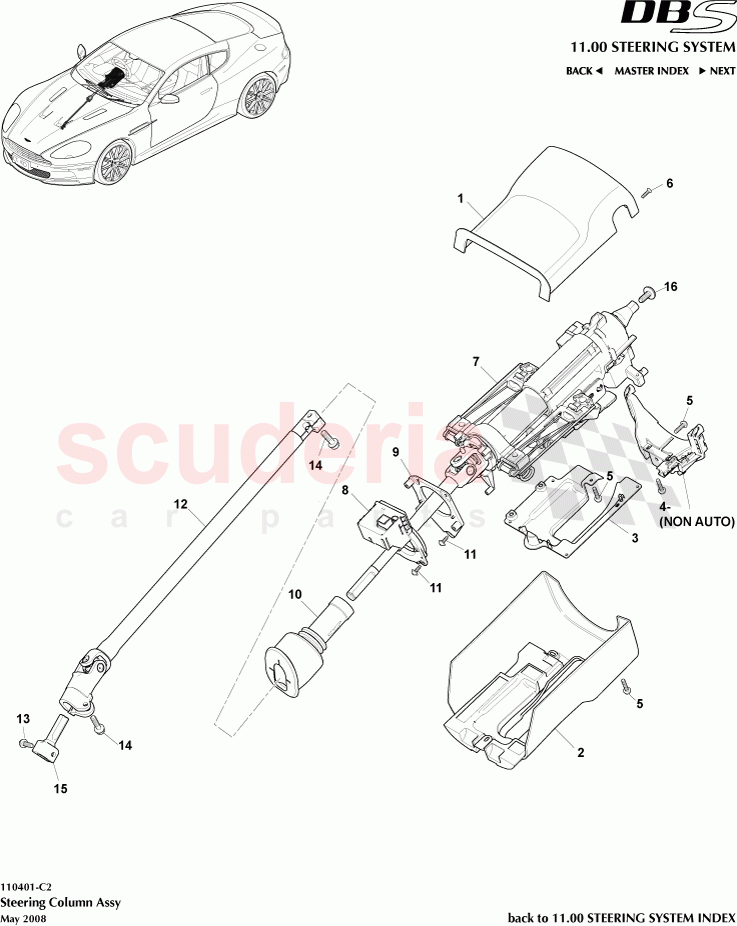

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433C695BCW	STEERING COLUMN SHROUD UPPER	$318.01	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333533ADW	SHRD ASY STNG COL LW	$740.42	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333E721AB	Plate, steering column, load spread	$10.59	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333L508CA	INS NON AUTO FIL PLT	$3,670.66	To Order

Photo	Part No	Description	Price (each)	Stock
	703736	Screw Self Tapping, 4.2 x 19, Washer Head	$0.12	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	AD433C529AB	Column Assy, Electric with Isolator	$1,624.78	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433F818AB	SNS ASY - STNG ROT	$372.36	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43ALR3219BA	Bracket, Steering Angle Sensor Mounting	$4.35	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433D677AA	Gaiter, Steering Column, LHD	$59.67	To Order
	4G433D677BA	Gaiter, Steering Column, RHD	$58.46	To Order

Photo	Part No	Description	Price (each)	Stock
	707158	Screw & Washer, M3.5 x 13, Flange Pan Head	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	91963	STEERING COLUMN ASSY	$4,943.05	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433C684AB	Bolt, M8 x 30, Hex Head Flange, Patch	$3.17	To Order

Photo	Part No	Description	Price (each)	Stock
	703138PK	BOLT-M8x25 PATCH CHROME FREE PACK OF 10	$6.94	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433N997AC	Coupling, Steering Gear to Column	$117.53	To Order

Photo	Part No	Description	Price (each)	Stock
	701355	Screw, M10 x 21.8, Pan Head, Pilot	$1.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4G433C695BCW	STEERING COLUMN SHROUD UPPER	4G433C695BCW STEERING COLUMN SHROUD UPPER	$318.01	1
2	8D333533ADW	SHRD ASY STNG COL LW	8D333533ADW SHRD ASY STNG COL LW	$740.42	1
3	8D333E721AB	Plate, steering column, load spread	8D333E721AB Plate, steering column, load spread	$10.59	1
4	8D333L508CA	INS NON AUTO FIL PLT	8D333L508CA INS NON AUTO FIL PLT	$3,670.66	1
5	703736	Screw Self Tapping, 4.2 x 19, Washer Head	703736 Screw Self Tapping, 4.2 x 19, Washer Head	$0.12	8
6	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black	$0.71	2
7	AD433C529AB	Column Assy, Electric with Isolator	AD433C529AB Column Assy, Electric with Isolator	$1,624.78	1
8	4G433F818AB	SNS ASY - STNG ROT	4G433F818AB SNS ASY - STNG ROT	$372.36	1
9	4G43ALR3219BA	Bracket, Steering Angle Sensor Mounting	4G43ALR3219BA Bracket, Steering Angle Sensor Mounting	$4.35	1
10	4G433D677AA	Gaiter, Steering Column, LHD	4G433D677AA Gaiter, Steering Column, LHD LHD	$59.67	1
10	4G433D677BA	Gaiter, Steering Column, RHD	4G433D677BA Gaiter, Steering Column, RHD RHD	$58.46	1
11	707158	Screw & Washer, M3.5 x 13, Flange Pan Head	707158 Screw & Washer, M3.5 x 13, Flange Pan Head	$1.23	6
12	91963	STEERING COLUMN ASSY	91963 STEERING COLUMN ASSY	$4,943.05	1
13	4G433C684AB	Bolt, M8 x 30, Hex Head Flange, Patch	4G433C684AB Bolt, M8 x 30, Hex Head Flange, Patch	$3.17	2
14	703138PK	BOLT-M8x25 PATCH CHROME FREE PACK OF 10	703138PK BOLT-M8x25 PATCH CHROME FREE PACK OF 10	$6.94	1
15	4G433N997AC	Coupling, Steering Gear to Column	4G433N997AC Coupling, Steering Gear to Column	$117.53	1
16	701355	Screw, M10 x 21.8, Pan Head, Pilot	701355 Screw, M10 x 21.8, Pan Head, Pilot	$1.27	1
