Automatic Transaxle- Differential

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Automatic Transaxle- Differential

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG434200AB DIFFERENTIAL AUTO Enquire To Order
Photo Part No Description Price (each) Stock
4G432710481 Cover, Output Shaft, Differential Enquire To Order
Photo Part No Description Price (each) Stock
4G432710482 O Ring, 2.62 x 75.87 Enquire To Order
Photo Part No Description Price (each) Stock
4G432711055 O Ring, 2.62 x 94.92 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710494 Union, Oil Cooler Enquire To Order
Photo Part No Description Price (each) Stock
4G432710487 Gasket, Flat, 16 x 22 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710488 Adaptor, Breather Enquire To Order
Photo Part No Description Price (each) Stock
4G432710489 PLUG - BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
4G432710490 Filter, Oil Enquire To Order
Photo Part No Description Price (each) Stock
4G432710491PK O RING 2.62 x 20.63 (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
4G432710492 Screw, M5 x 12 Enquire To Order
Photo Part No Description Price (each) Stock
705701 DRAIN PLUG WASHER Enquire To Order
Photo Part No Description Price (each) Stock
4G432710495 SPEED SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
4G432710499 Screw, M8 x 25 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710500 O Ring, 3.53 x 228.19 Enquire To Order
Photo Part No Description Price (each) Stock
4G432710501 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
4G432710502 O Ring, 2.69 x 9.92 Enquire To Order
Photo Part No Description Price (each) Stock
4G432711158 O Ring, Rear Cover, 3.53 x 123.42 Enquire To Order
View All

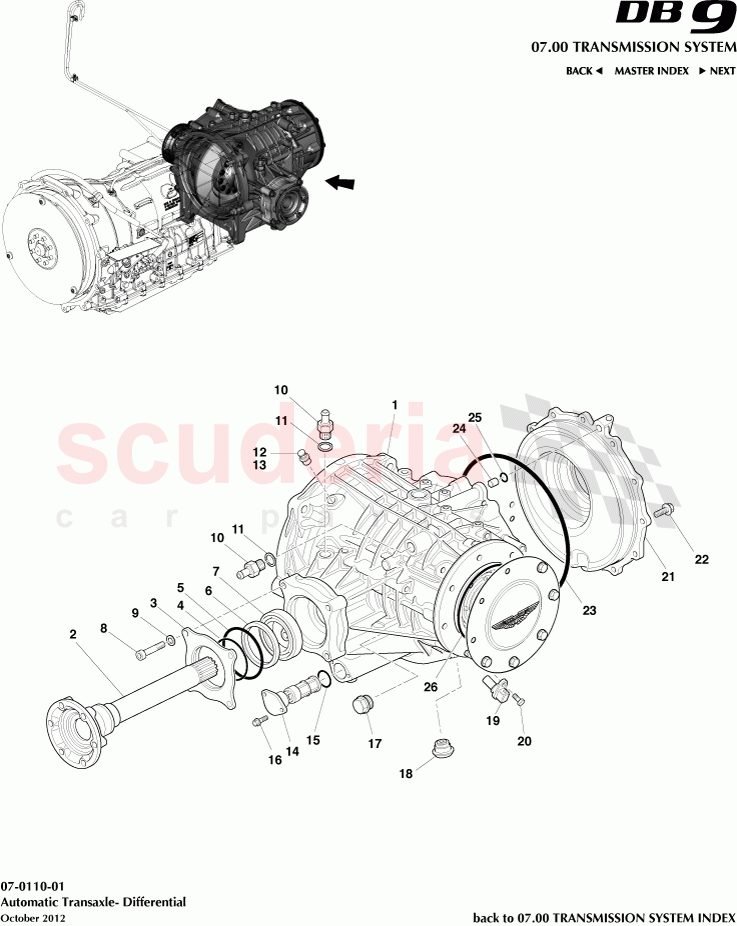

Automatic Transaxle- Differential of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G432710604
Seal, Differential Output Shaft RH, 55 x 70 x 8 		- 1 Enquire
- 704349PK
TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12
12 x 1 Litre 		- A/R Enquire
1 DG434200AB
DIFFERENTIAL AUTO 		- 1 Enquire
3 4G432710481
Cover, Output Shaft, Differential 		- 1 Enquire
4 4G432710482
O Ring, 2.62 x 75.87 		- 1 Enquire
5 4G432711055
O Ring, 2.62 x 94.92 		- 1 Enquire
6 4G432710483
Seal, Differential Output Shaft, Left, 55 x 72 x 8 		- 1 Enquire
10 4G432710494
Union, Oil Cooler 		- 2 Enquire
11 4G432710487
Gasket, Flat, 16 x 22 		- 2 Enquire
12 4G432710488
Adaptor, Breather 		- 1 Enquire
13 4G432710489
PLUG - BREATHER 		- 1 Enquire
14 4G432710490
Filter, Oil 		- 1 Enquire

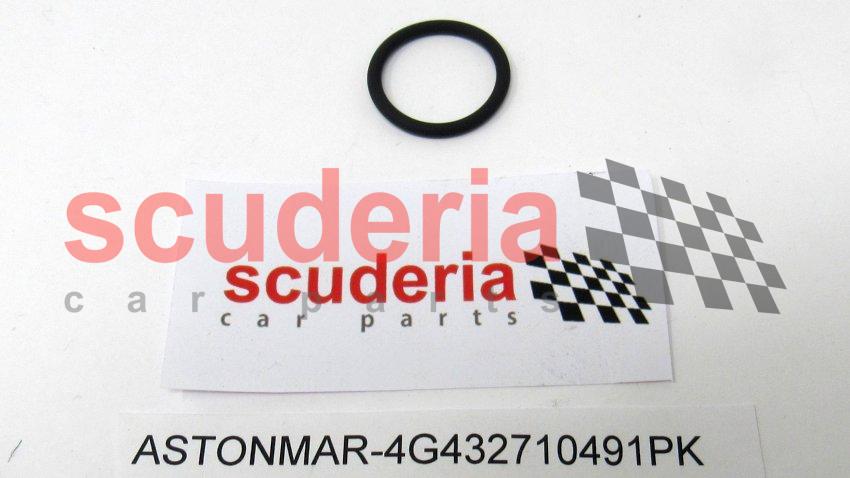

15 4G432710491PK
O RING 2.62 x 20.63 (PACK OF 10)
10 Per Pack 		- 1 Enquire
16 4G432710492
Screw, M5 x 12 		- 2 Enquire
17 705701
DRAIN PLUG WASHER 		- 1 Enquire
19 4G432710495
SPEED SENSOR 		- 1 Enquire
22 4G432710499
Screw, M8 x 25 		- 12 Enquire
23 4G432710500
O Ring, 3.53 x 228.19 		- 1 Enquire
24 4G432710501
DOWEL 		- 1 Enquire
25 4G432710502
O Ring, 2.69 x 9.92 		- 1 Enquire
26 4G432711158
O Ring, Rear Cover, 3.53 x 123.42 		- 1 Enquire
