Aston Martin DB7 (1997) - Rear Suspension

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
2683457 VEE MOUNT - SPECIAL $152.62 To Order
Photo Part No Description Price (each) Stock
2683839 HUB SPACER-2.22mm $82.33 To Order
Photo Part No Description Price (each) Stock
2684983 REAR HUB ASSEMBLY $1,012.57 To Order
Photo Part No Description Price (each) Stock
2680244 STUD $18.97 To Order
Photo Part No Description Price (each) Stock
2683431 HUB CARRIER RR RH $2,937.88 To Order
Photo Part No Description Price (each) Stock
2683458 ASY-W/BONE& N/BRG RH $1,657.84 To Order
Photo Part No Description Price (each) Stock
2680868 SHIM ADJ-PIVOT PIN OUTER-0.004 $16.58 To Order
Photo Part No Description Price (each) Stock
2683460 REAR DAMPER $410.08 To Order
Photo Part No Description Price (each) Stock
2683954 PACKER $2.10 To Order
View All

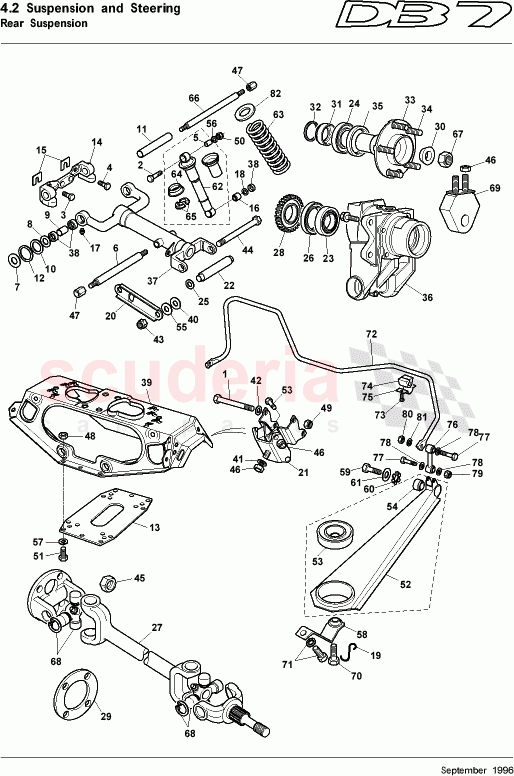

Rear Suspension of Aston Martin Aston Martin DB7 (1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 2684984
WHEEL BOLT 1/2 UNF x 3/4
From (V) 102228 		$14.23 10
- 2684983
REAR HUB ASSEMBLY
From (V) 102228 		$1,012.57 2
- 2683955
REAR DAMPER ASSY VOLANTE
Volante 		$383.27 4
- 2680242
VEE MOUNTING
Volante 		$114.12 4
- 2683432
HUB CARRIER RR LH 		$2,937.88 1
- 2683459
ASY-W/BONE& N/BRG LH 		$1,622.53 1
- 2680848
BEARING 		$42.97 4
- 2680869
SHIM ADJ-PIVOT PIN OUTER-0.007 		$16.58 -
- 2683840
HUB SPACER-2.27mm 		$55.16 -
- 2683841
HUB SPACER-2.32mm 		$57.05 -
- 2683842
HUB SPACER-2.37mm 		$24.73 -
- 2683843
HUB SPACER-2.42mm 		$24.73 -
- 2683844
HUB SPACER-2.47mm 		$24.73 -
- 2683845
HUB SPACER-2.52mm 		$24.73 -
- 2683846
HUB SPACER-2.57mm 		$24.73 -
- 2683847
HUB SPACER-2.62mm 		$57.05 -
- 2683848
HUB SPACER-2.67mm 		$57.05 -
- 2683849
HUB SPACER-2.72mm 		$82.55 -
- 2683850
HUB SPACER-2.77mm 		$24.73 -
- 2683851
HUB SPACER-2.82mm 		$33.14 -
- 2683852
HUB SPACER-2.87mm 		$22.91 -
- 2683853
HUB SPACER-2.92mm 		$55.16 -
- 2683854
HUB SPACER-2.97mm 		$63.40 -
- 2683855
HUB SPACER-3.02mm 		$43.52 -
- 2683856
HUB SPACER-3.07mm 		$33.14 -
- 2683857
HUB SPACER-3.12mm 		$55.45 -

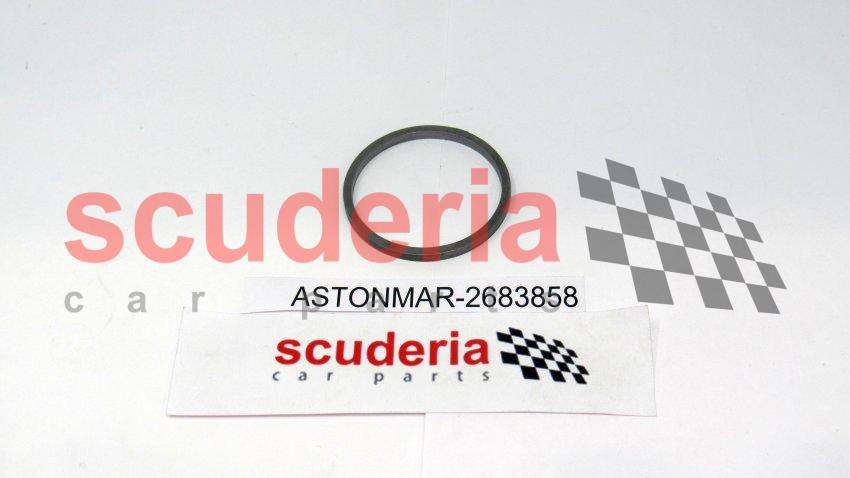

- 2683858
Hub Spacer-3.17mm 		$47.12 -
- 2683859
HUB SPACER-3.22mm 		$55.16 -
- 2683860
HUB SPACER-3.27mm 		$86.33 -
- 2683861
HUB SPACER-3.32mm 		$55.16 -
- 2683862
HUB SPACER-3.37mm 		$47.10 -
- 2683863
HUB SPACER-3.42mm 		$22.91 -
- 2683864
HUB SPACER-3.47mm 		$61.26 -
- 705623
GREASE-RED 		$75.02 -
- - - Enquire
- 2680840
SPACER 		$10.22 4
21 2683457
VEE MOUNT - SPECIAL
Coupe 		$152.62 4
32 2683839
HUB SPACER-2.22mm 		$82.33 -
33 2684983
REAR HUB ASSEMBLY
Up to (V) 102227 		$1,012.57 2
34 2680244
STUD
Up to (V) 102227 		$18.97 10
36 2683431
HUB CARRIER RR RH 		$2,937.88 1
37 2683458
ASY-W/BONE& N/BRG RH 		$1,657.84 1
40 2680868
SHIM ADJ-PIVOT PIN OUTER-0.004 		$16.58 -
62 2683460
REAR DAMPER
Coupe 		$410.08 4
82 2683954
PACKER
Volante 		$2.10 8
