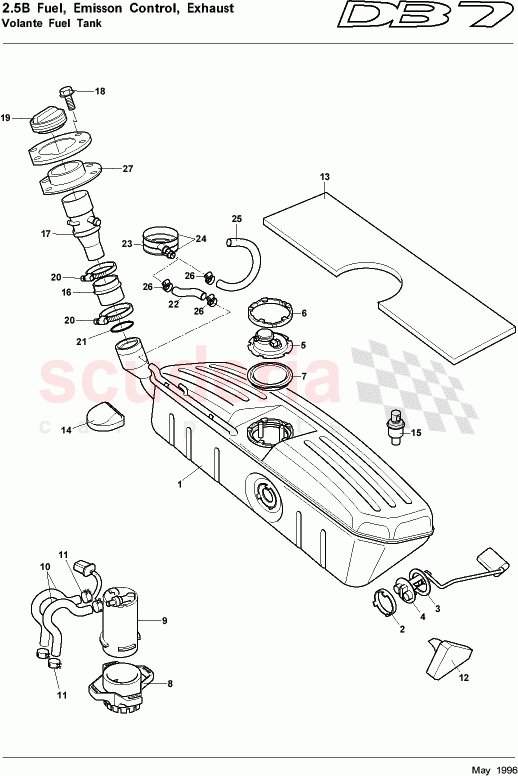

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

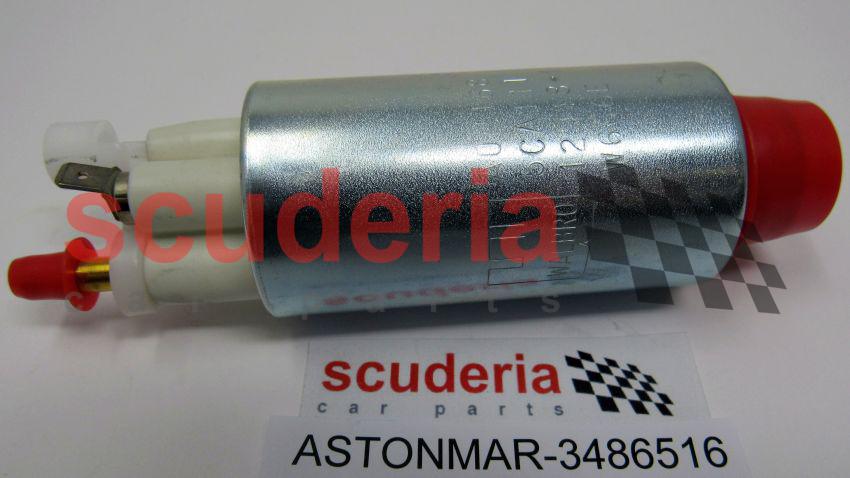

	3486516	FUEL PUMP	$312.70	To Order

Photo	Part No	Description	Price (each)	Stock
	3481423	PAD-LATERAL LOCATION LH	$9.38	To Order

Photo	Part No	Description	Price (each)	Stock
	8584291	INSULATION(SOUND)UPR -FUEL TANK	$63.42	To Order

Photo	Part No	Description	Price (each)	Stock
	6884491	ASY PIPE-FUEL FILLER COMPLETE UNLEADED	$879.91	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	6883395	FUEL FILLER ASSY- LEADED FUEL COMP	6883395 FUEL FILLER ASSY- LEADED FUEL COMP	$165.81	-
-	9781468	LABEL-CLEANLINESS- FUEL TANK	9781468 LABEL-CLEANLINESS- FUEL TANK	$2.62	-
-	3484295	PAD-LATERAL LOCATION RH	3484295 PAD-LATERAL LOCATION RH	$12.19	-
-	9783969	LABEL -UNLEADED FUEL	9783969 LABEL -UNLEADED FUEL	$3.71	-
-	3486516	FUEL PUMP	3486516 FUEL PUMP	$312.70	-
-	9783970	LABEL - LEADED FUEL	9783970 LABEL - LEADED FUEL	$3.60	-
-	8584292	PAD-TRUNK REINFORCE- MENT	8584292 PAD-TRUNK REINFORCE- MENT	$14.67	-
9	3486516	FUEL PUMP	3486516 FUEL PUMP	$312.70	-
12	3481423	PAD-LATERAL LOCATION LH	3481423 PAD-LATERAL LOCATION LH	$9.38	-
13	8584291	INSULATION(SOUND)UPR -FUEL TANK	8584291 INSULATION(SOUND)UPR -FUEL TANK	$63.42	-
17	6884491	ASY PIPE-FUEL FILLER COMPLETE UNLEADED	6884491 ASY PIPE-FUEL FILLER COMPLETE UNLEADED	$879.91	-
